8.1.5. Disconnect fuel hoses and fuel sensors sockets
8.1.6. Remove wing spars out of center-wing
With disconnected aileron and flaps control rods and free wing hinges,
wing can be dismounted from centre wing box by pulling them out in the
direction out of the airplane axis.
8.1.7. Disconnect pitostatic system hoses
Disconnect pitostatic hoses before completely removing wing spar from
spar channel of centre wing.
8.1.8. Secure wings by hangaring (transport) jigs
Repeat the same procedure for second wing.

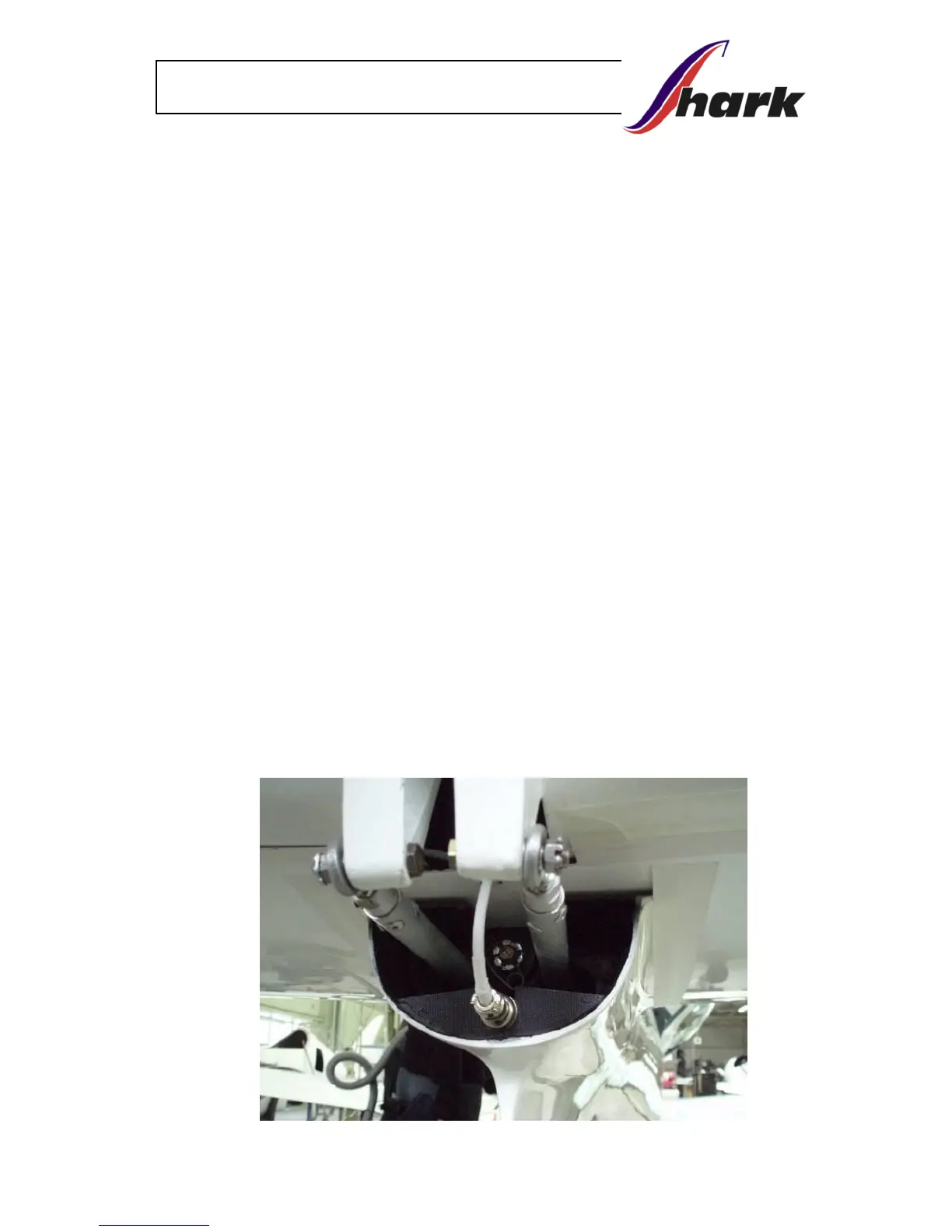

8.2. STABILIZER DISASSEMBLY
Similar to wing it is possible to remove stabilizer as well:
- Remove tape sealing gaps
- Disconnect pushrods from elevator
- Remove safety pin from rear bolt and remove castle nut
- Disconnect connector from elevator trim servo
- Move rudder on side
- Pull stabilizer backward from pins and bearings
