Shark UL - 7.3. Control Systems

Page 7-8
Flight manual UL aircraft
7.3. CONTROL SYSTEMS
Full dual control, with right-side sidesticks and adjustable front pedals,
equipped by toe-brakes.
Flap handle and undercarriage retracting control panel are located on the
instrument panel. Throttle and choke levers are placed on the left cockpit
panel. Trim control switches are placed on the sidesticks.

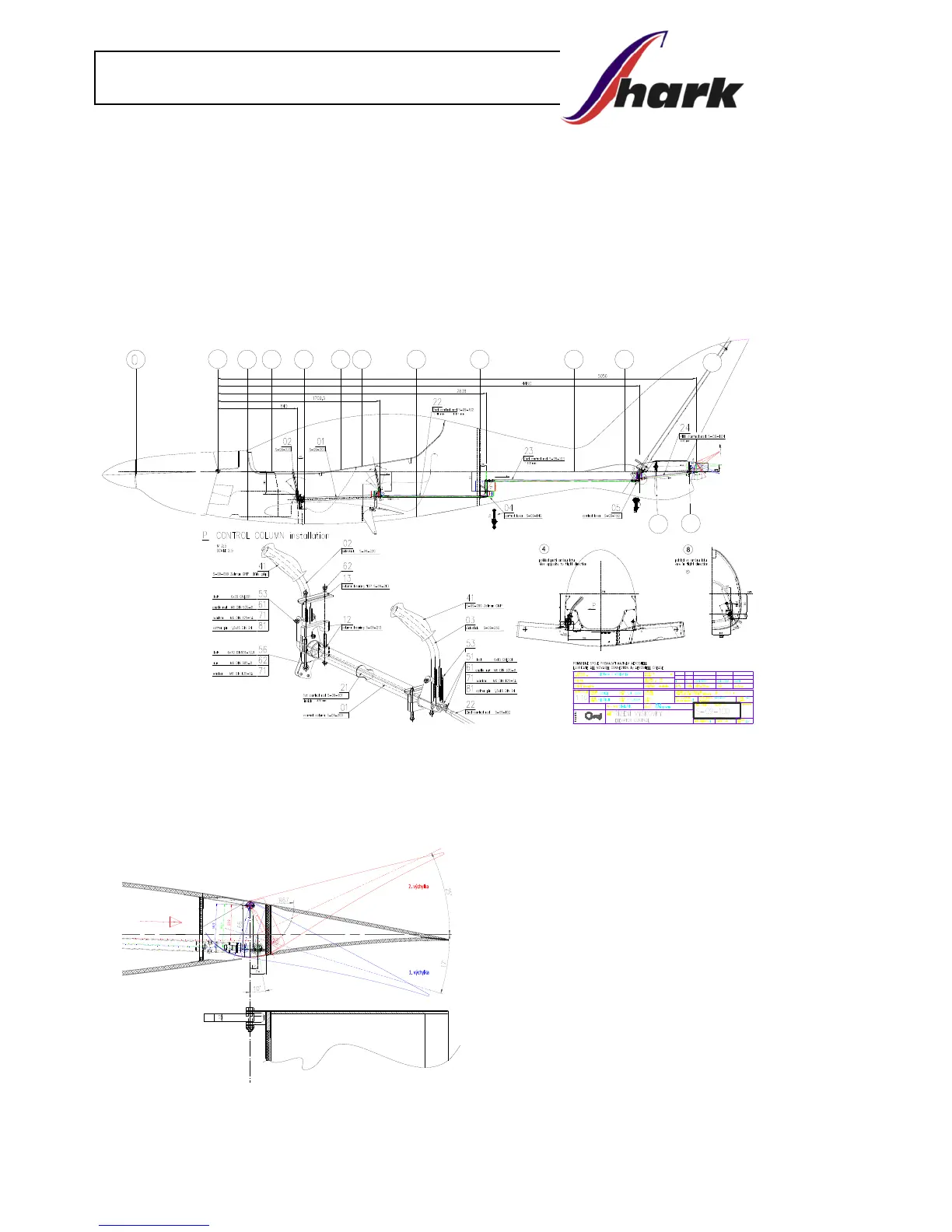

7.3.1. Elevator control
design
6
54
32
1
8
7
12
13
109
11
COMP-LET
Elevator is controlled by sidesticks, hinged in control column through
system of rods and levers and connected directly with levers of two-piece
elevator.
7.3.2. Aileron control
Ailerons are controlled by side
movements of sidesticks, hinged
in control column, through system
of rods and levers, hinged in
carbon brackets of wings.
Automatic tabs attached on root
parts of ailerons deflect in
opposite direction than ailerons.
The servo of trim can be
optionally installed on one tab.
