7.13. ELT UNIT

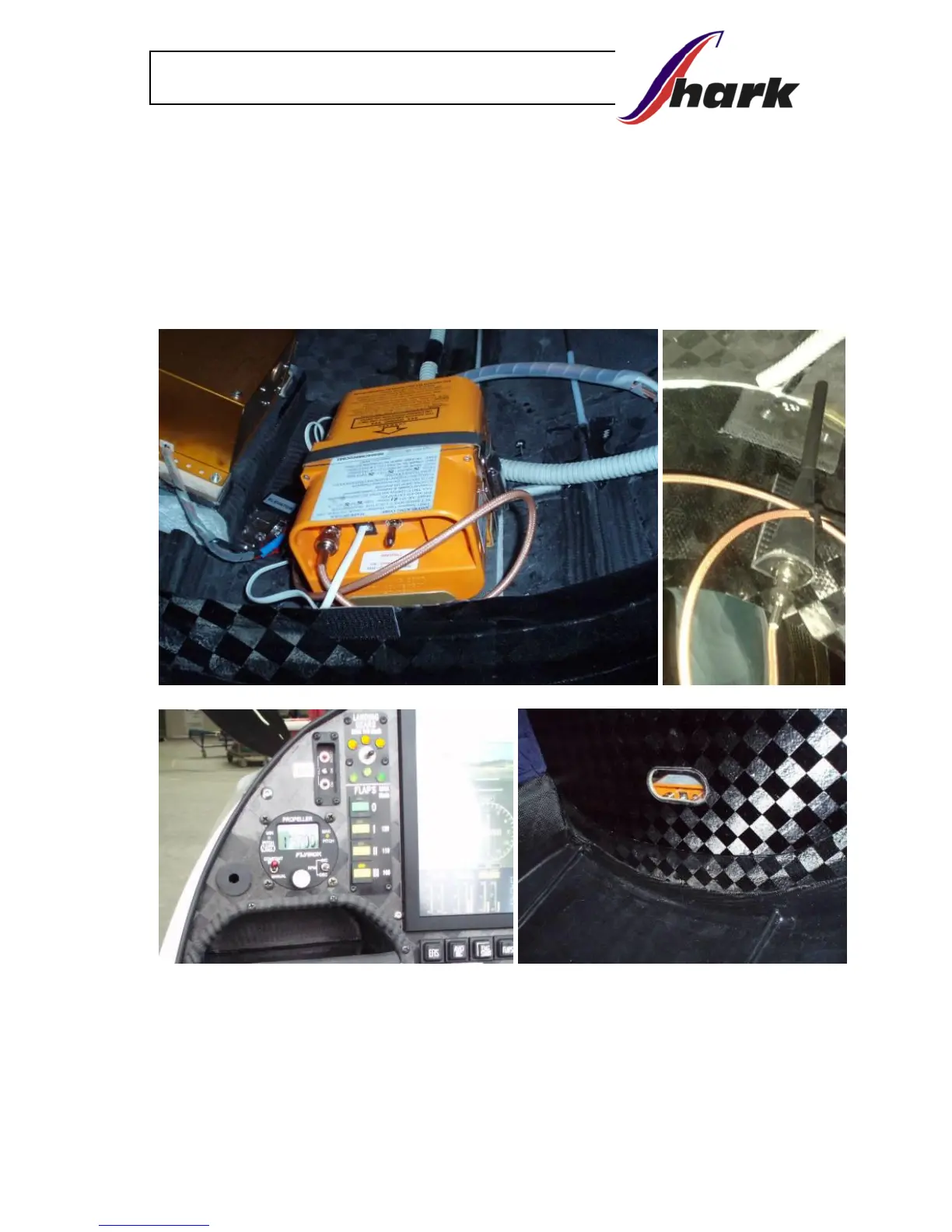

ELT unit is installed as option. The unit is attached on the bracket, behind
the rear baggage frame. It is accessible through the cover of rear baggage
frame. In cover is small window for easy ELT check. Antenna is placed on
upper rear part of baggage frame and extended above the fuselage
surface. Control panel of ELT is placed on instrument panel.
