7.9.3. Rescue system installation

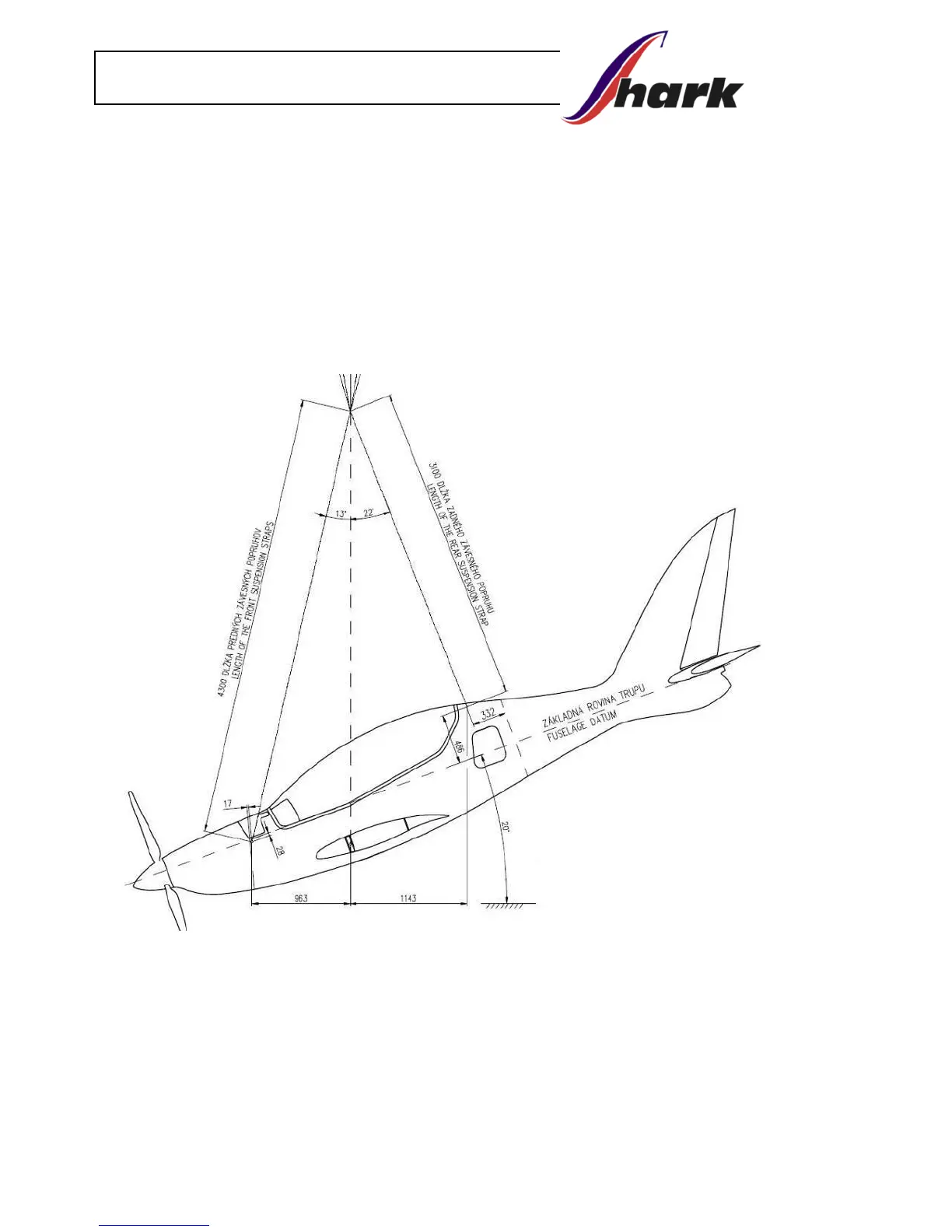

Rescue system is installed between firewall and canopy/instrument panel.
Two front rescue system belts are hinged on the top of engine mounting
hinges and are folded inside of rescue system box. Third belt is going
under left cockpit frame to rear hinge, mounted on the top of baggage
space frame. If the system is activated, the parachute cover is broken in
defined places and the rear strip is ripped off the surface of the fuselage
under the left edge of the cab frame.
