8. AIRPLANE HANDLING, CARE AND
MAINTENANCE

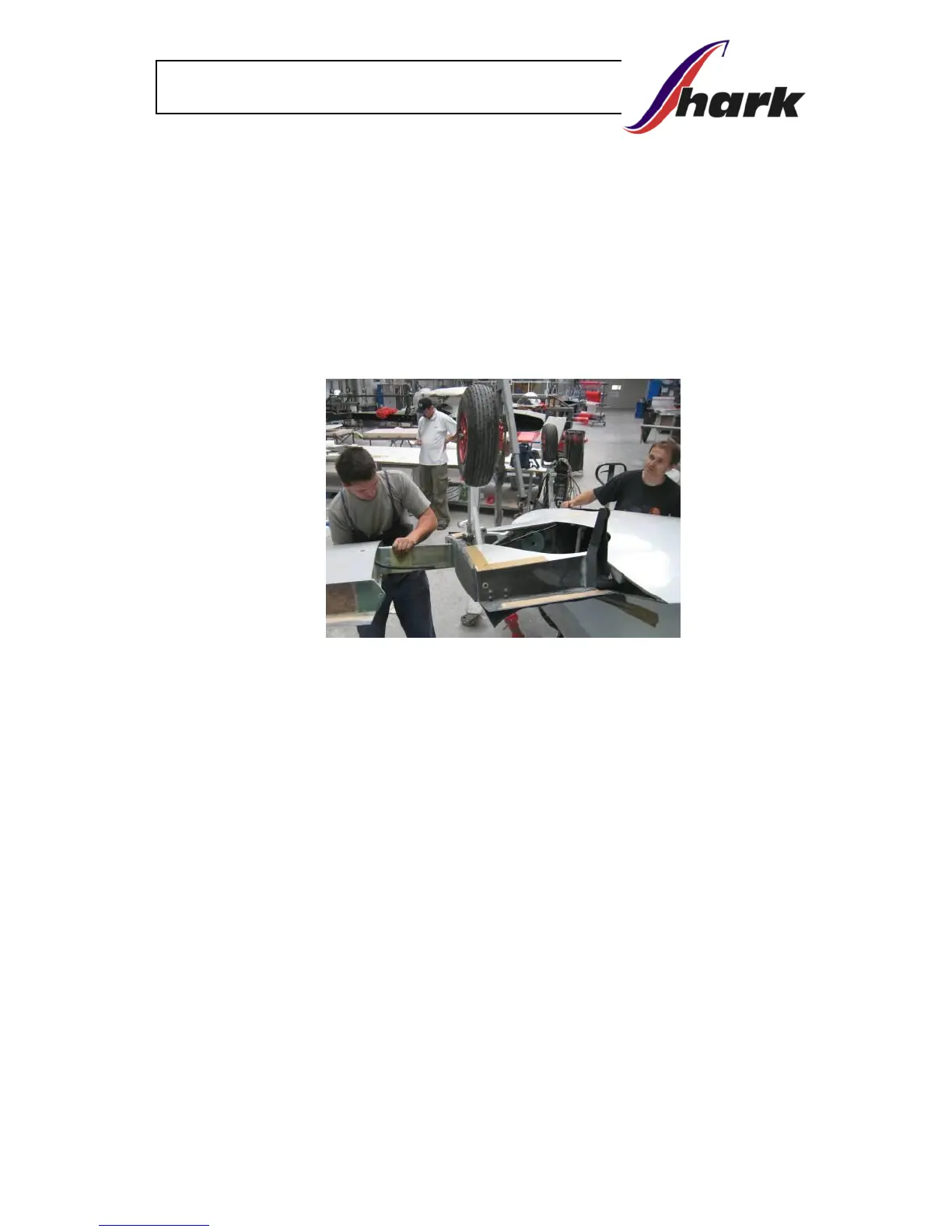

8.1 WING DISMOUNTING
Wing dismounting is an option for hangaring in a limited space or for
transport.
Wing disassemble
The disassembly procedure consists of:
- Flaps on – position III (free access to pins on rear wing beam )
- Remove flaps
- Remove sealing tape from fuselage - root ribs gap
- Disconnect aileron controls below seat and flaps drive – left and right
- Unlock and dismount rear wing beam hinge pin
- Unlock and dismount two main wing spar pins
- Disconnect fuel hoses
- Disconnect electric socket from fuel sensors
- Disconnect pitotstatic hoses
- Remove wing spar brackets from fuselage spar channel
- Secure wings by using of hangar/transport jigs.
8.1.1. Remove flaps
Before wings disassembly there is needed to remove flaps : Remove 3
bolts from flap hinges and one from control tube end in flap root rib.
