Sharp AR-M256 Service Manual

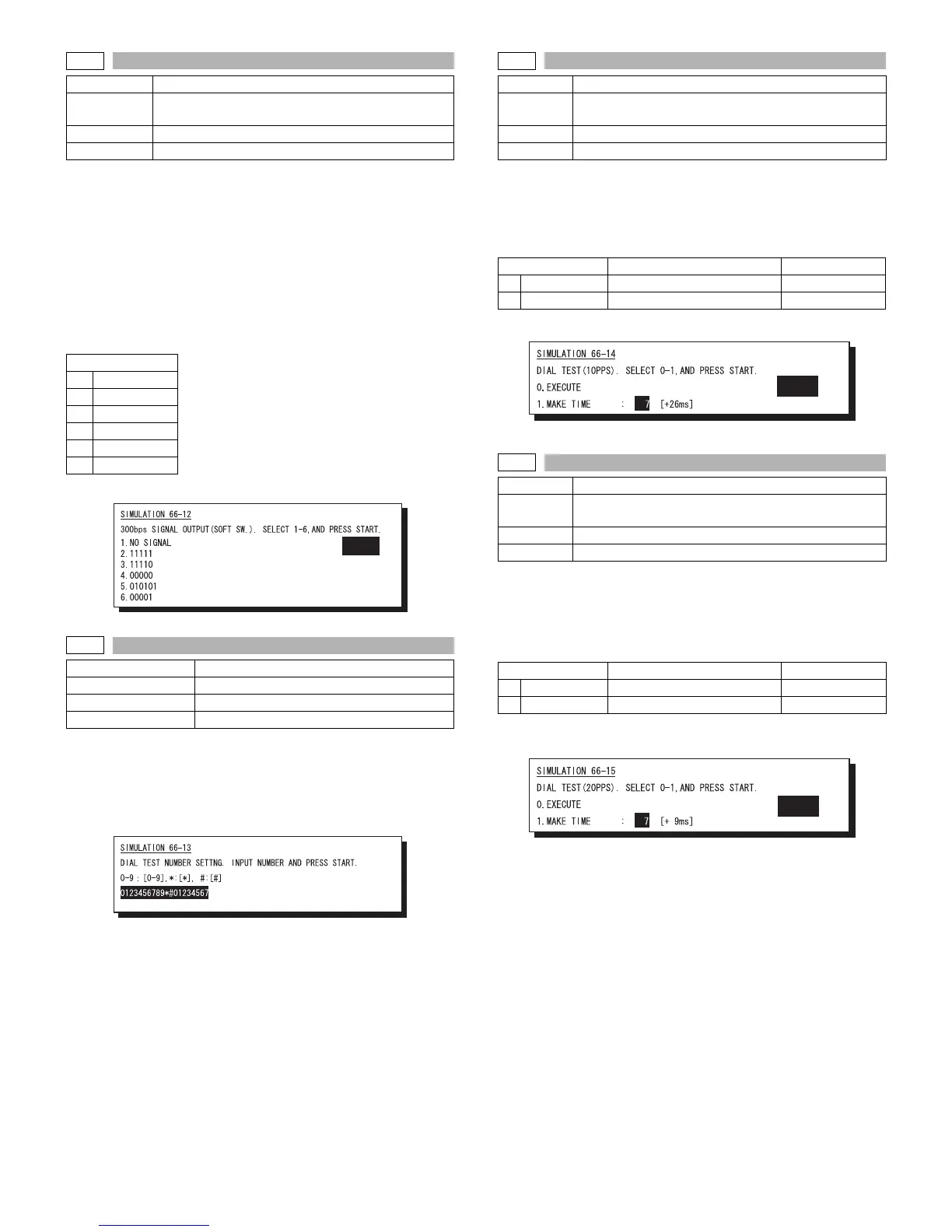

AR-M256/M257/M258/M316/M317/M318/5625/5631 SIMULATION 8 - 52
Operation/procedure
Select the signal number with the 10-key, and press the [START] key.
By setting the signal number, the specified signal is delivered to the
line at the speed of 300bps. (The signal is continuously sent until the
interruption command is provided by pressing the [CUSTOM SET-
TINGS] key.)
The signal send level can be selected from 0dB or the soft SW set value.
The signal send level is returned to the soft SW set value before execu-
tion of the mode after completion of the mode.
By entering the number and pressing the [START] key during execu-
tion, the signal kind can be changed.
Note: Executable only when the FAX is installed.
Operation/procedure
Enter the number with the 10-key, [*] key, and [#] key.
Press the [CLEAR] key to return to the initial state.
Press the [START] key to register the entered number.
Note: Executable only when the FAX is installed.
Operation/Procedure
1. Select the item with the 10-key, and press the [START] key.
2. Set the make time with the 10-key.
The dial is sent with the set value + 26ms.
The sending dial cannot be interrupted.
Note: Executable only when the FAX is installed.
Operation/Procedure
1. Select the item with the 10-key, and press the [START] key.
2. Set the make time with the 10-key.
The dial is sent with the set value + 26ms.
The sending dial cannot be interrupted.
Note: Executable only when the FAX is installed.
66-12
Purpose Operation test/check
Function
(Purpose)
Used to send 300bps signals.
(Signal send level: Set by soft SW)
Section FAX
Item Operation
Item
1 NO SIGNAL
2 11111
3 11110
4 00000
5 010101
6 00001
66-13
Purpose Setting
Function (Purpose) Used to register the dial numbers.
Section FAX
Item Operation
1
66-14
Purpose Operation check/test
Function
(Purpose)
Used to perform the dial test. (10 PPS send test)
Section FAX
Item Operation
Item Content Setting range
0 EXECUTE Execution –
1 MAKE TIME Dial pulse make time setting 0-15
66-15
Purpose Operation check/test
Function
(Purpose)
Used to perform the dial test. (20 PPS send test)
Section FAX
Item Operation
Item Content Setting range
0 EXECUTE Execution –
1 MAKE TIME Dial pulse make time setting 0-15
1
1
