Controls and Indicators (continued)

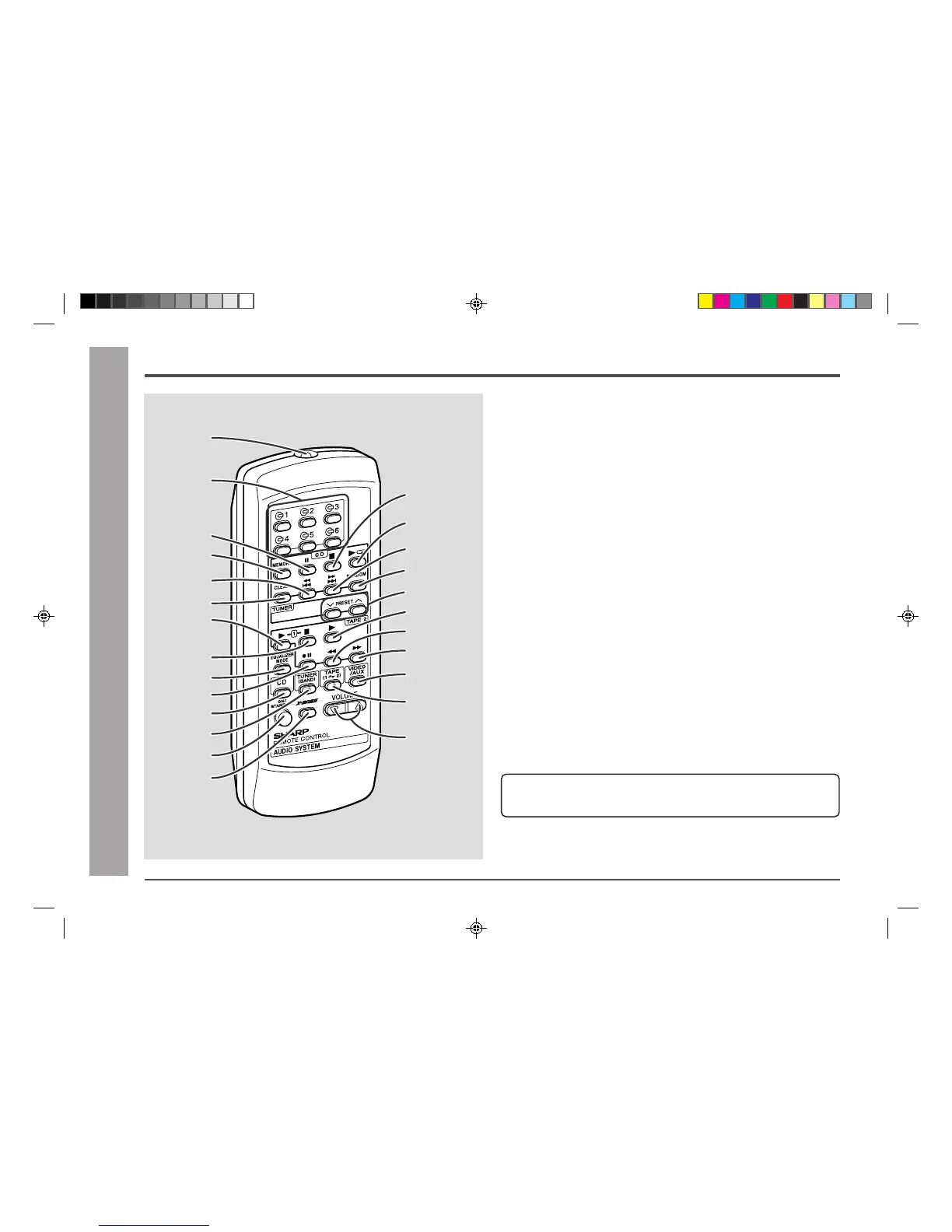

■ Remote control Reference page
01. Remote Control Transmitter .............................................................. 12
02. CD Direct Play Buttons .........................................................18, 19, 24
03. CD Pause Button ............................................................................. 17
04. CD Memory Button............................................................................ 19
05. CD Track Down or Fast Reverse Button ........................................... 17
06. CD Clear Button .............................................................................. 19
07. Tape 1 Play Button ............................................................................ 22
08. Tape 1/Tape 2 Stop Button .................................................... 22, 23, 25
09. Equalizer Mode Select Button ...........................................................14
10. Tape 2 Record Pause Button ................................................23, 24, 25
11. CD Button.................................................................................... 16, 24
12. Tuner (Band) Button.......................................................................... 20
13. Power On/Stand-by Button .......................................................... 12, 26
14. Extra Bass Button ............................................................................. 14
15. CD Stop Button ........................................................................... 17, 24
16. CD Play or Repeat Button ........................................................... 17, 18
17. CD Track Up or Fast Forward Button ................................................ 17
18. CD Random Button ......................................................................... 18
19. Tuner Preset Up/Down Buttons ........................................................21
20. Tape 2 Play Button ............................................................................ 22
21. Tape 2 Rewind Button ....................................................................... 22
22. Tape 2 Fast Forward Button ..............................................................22
23. Video/Auxiliary Button ....................................................................... 28
24. Tape (1 V 2) Button .................................................................... 22, 25
25. Volume Up or Down Buttons .............................................................14
1
2
15
16
17
18
19
20
21
24
3
6
4
7
8
9
10
14
13
12
11
5
25
22
23
✱
✱
✱
General Information
– Controls and Indicators –
Buttons with “✱” mark in the illustration can be operated on the remote control
only.
Other buttons can be operated both on the main unit and the remote control.
■ Battery installation for remote control (See page 12.)
