9

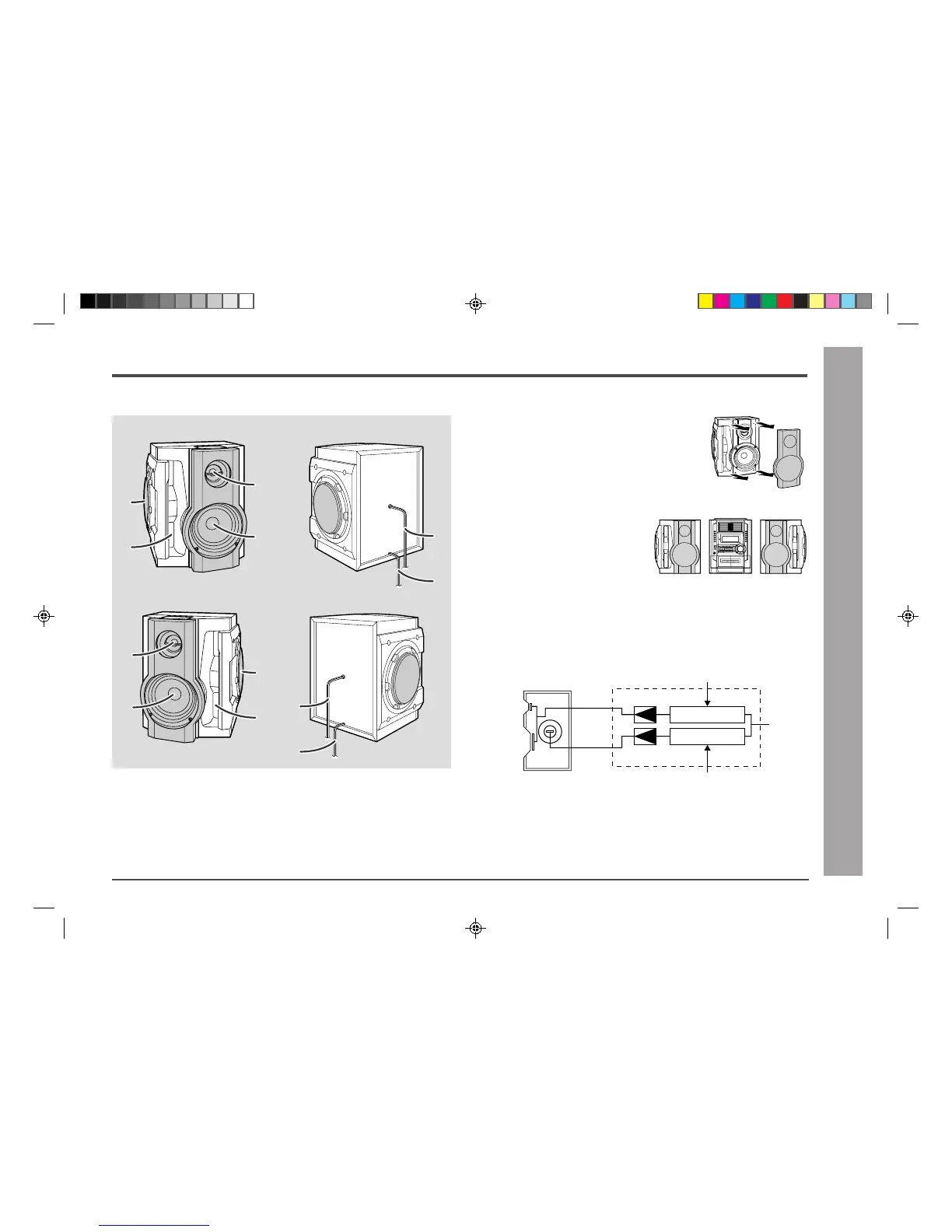

■ Speaker system
Speaker grilles are removable:
Make sure nothing comes into contact with the speaker
diaphragms when you remove the speaker grilles.
Placing the speaker system:
The left and right speakers have individual
shapes. For best performance, place the
speakers according to the illustration on the
right.
Bi-amp system:
Each speaker unit has a built-in subwoofer (low frequency range) which is driven
separately from the woofer and tweeter (mid-to-high frequency range). Two indepen-
dent amplifiers which have individual frequency characteristics are used.
By amplifying separately the two frequency bands, clearer sound is achieved.
01. Subwoofer
02. Bass Reflex Duct
03. Tweeter
04. Woofer
05. Speaker Wire for SUBWOOFER Terminals
06. Speaker Wire for MAIN Terminals
Left speaker
Right speaker
3
4
2
1
3
4
1
2
5
6
5
6
Power amplifier
Mid-to-high range
(200 Hz - 20 kHz)
Ultra-low range
(60 Hz - 200 Hz)
Pre-amplifier
Pre-amplifier
Power amplifier
L-ch
Tweeter
Woofer
Sub-
woofer
Left speaker
Right speaker
General Information
– Controls and Indicators –
*BA3100_P04_09 00.12.8, 4:27 PM9
