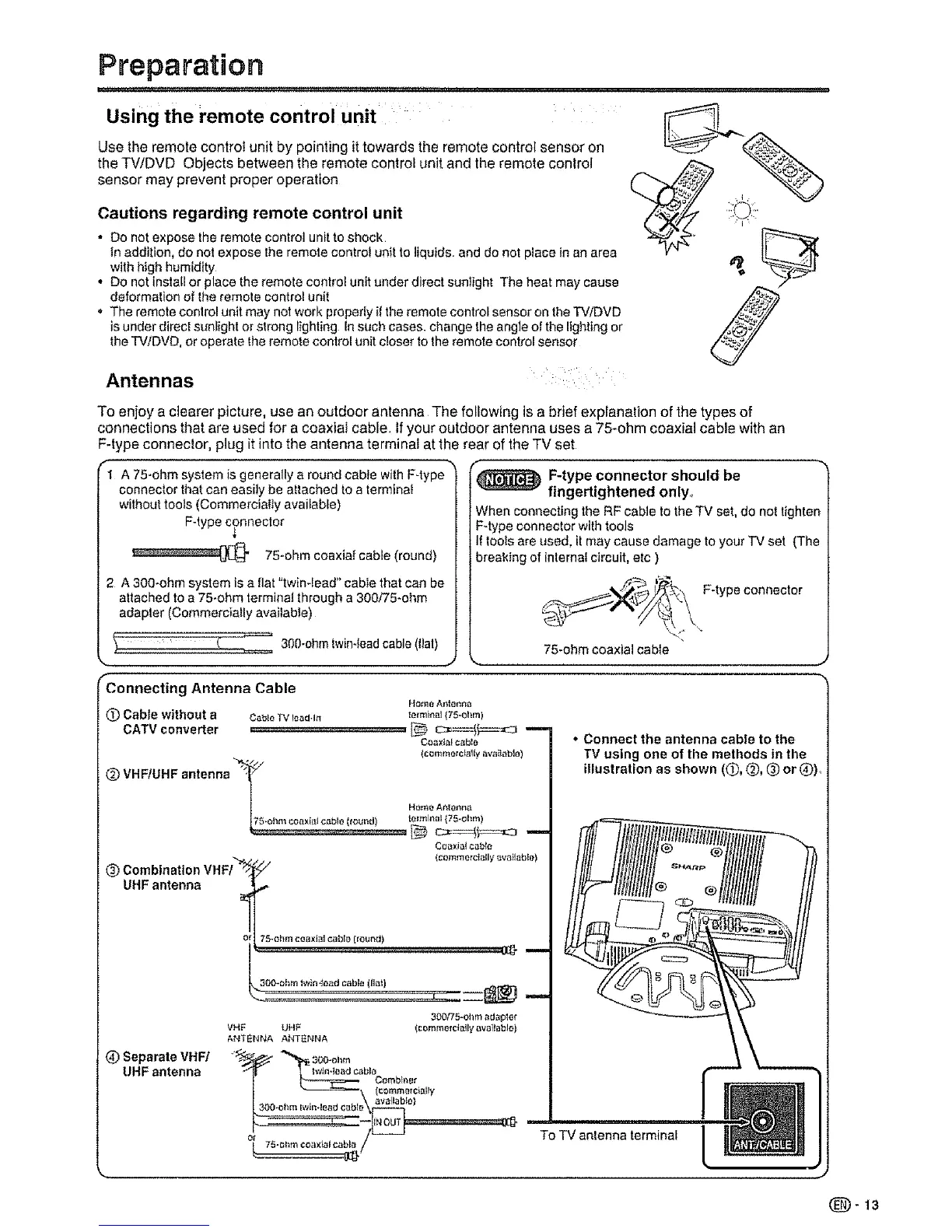

Preparation
Using theremote control unit ' :
Use the remote control unit by pointing ittowards the remote control sensor on
the TV/DVD Objects between the remote control unit and the remote control
sensor may prevent proper operation
Cautions regarding remote control unit
. Do not expose the remote control unit to shock
In addition, do not expose the remote controt unit to liquids, and do not place in an area
with high humidity
° Do not install or place the remote control unit under direct sunlight The heat may cause
deformation of the remote control unit
. The remote control unit may not work properly if the remote control sensor on the TViDVD
is under direct sunlight or strong lighting insuch cases, change the angle of the lighting or
the TViDVD, or operate the remote control unit closer to the remote control sensor
Antennas
To enjoy a clearer picture, use an outdoor antenna The following is a brief explanation of the types of
connections that are used for a coaxiat cable, if your outdoor antenna uses a 75-0hm coaxial cable with an
F-type connector, plug it into the antenna terminal at the rear of the TV set
"1 A 75-ohm system is generally a round cable with F-type
connector that can easily be attached to a terminal
without tools (Commercially available)
F-type connector
75-ohm coaxial cable (round)
2 A 300-ohm system is a fiat "twin-lead" cable that can be
attached to a 75-ohm terminal through a 300/75-ohm
adapler (Commercially avaiJable)
F-type connector should be
fingertightened only,,
When connecting the RF cable to the TV sat, do net tighten
F-type connector with tools
If tools are used, it may cause damage to your TV set (The
breaking of internal circuit, etc )
Q Separate VHFI
UHF antenna
F-type connector
75-ohm coaxial cable
• Connect the antenna cable to the
TV using one of the methods in the
illustration as shown (_..),O, @ or @),
(_)- 13
