LC-40/46/52LE820E, LC-40/46LU820E
2 – 5

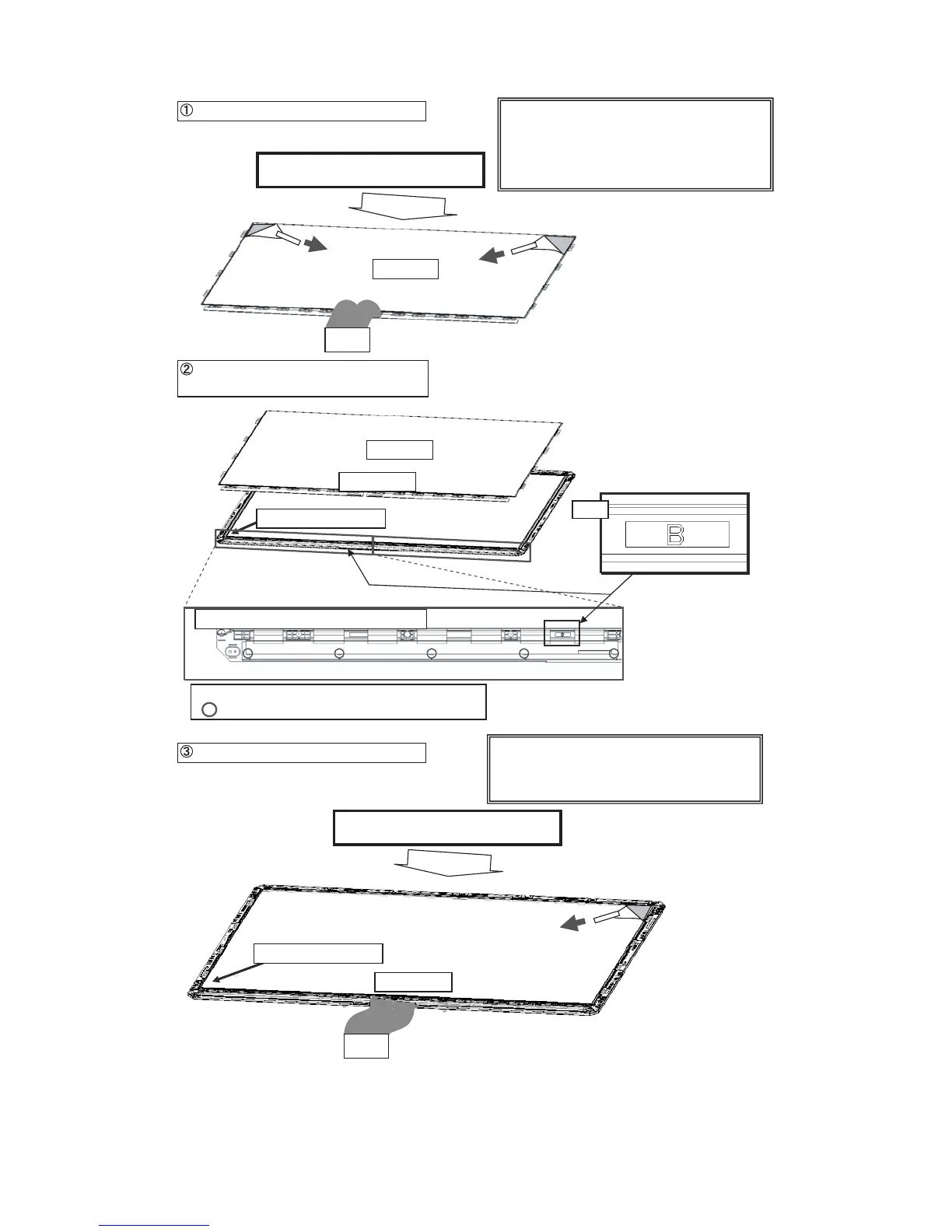

2. LC-46LE820E/LU820E
Back side
GND
Peel off the back side laminetion film
Fit the panel.
Fit the S-PWB to the P-chassis hook.
Front side
Panel reference point
S-PWB side
stamp
S-PWB hook point (left side, same L/R)
Check the fit to P chassis hook.
( part lower hook 5 places, total 10 places L/R )
Peel off the front side lamination film
GND
S-PWB side
Caution
* Ground S-PWB connectors while peeling off lamination film.
* Use a ionized air blower while peeling off lamination film.
Wind from the blower should cover whole surface of panel.
* Never touch polarizer surface after lamination film is removed.
Panel reference point
Ionized air blowers
Ionized air blowers
Caution
* Ground S-PWB connectors while peeling off lamination film.
* Use a ionized air blower while peeling off lamination film.
Wind from the blower should cover whole surface of panel.
* Never touch polarizer surface after lamination film is removed.
* Don't mistake use the panel for other models.
(Because there is very similar front polarizers.)
To Next Page
