LC-40/46/52LE820E, LC-40/46LU820E
4 – 13

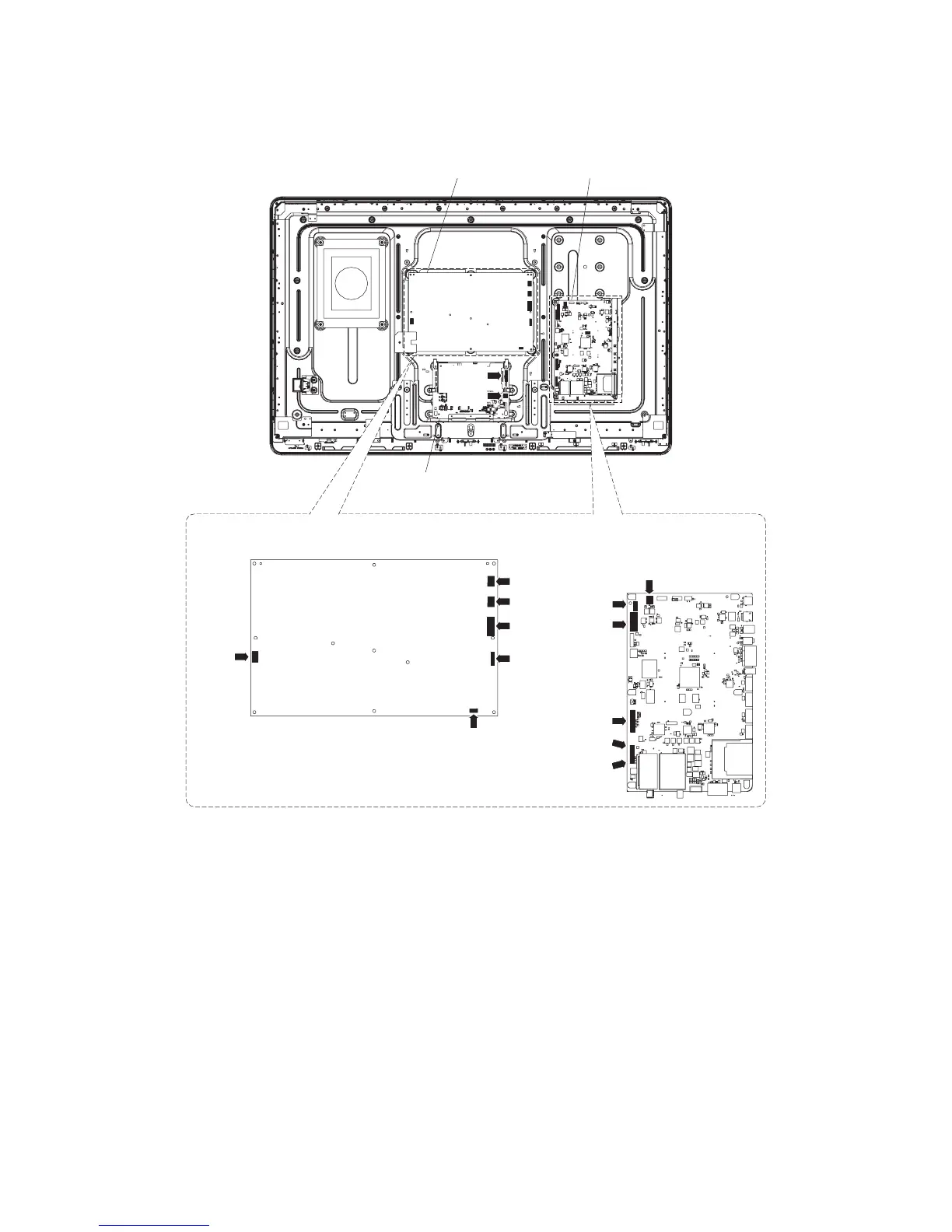

3. Removing of Connectors
1. Disconnect the following connectors from the MAIN Unit. (SB, LB, PD, LW, RA, RL)
2. Disconnect the following connectors from the POWER Unit. (L1, L2, LB, PD, PL, AS)
3. Disconnect the following connectors from the LCD CONTROL Unit. (LW, PL)
MAIN UnitPOWER Unit
LCD CONTROL Unit
[LW]
[PL]
[L1]
[L2]
[LB]
[PD]
MAIN Unit
POWER Unit
[PL]
[LB]
[PD]
[RA]
[RL]
[AS]
[LW]
[SB]
To Next Page
