Sharp MX-2314N User Manual

2-9
COPIER
Contents
ORIGINALS

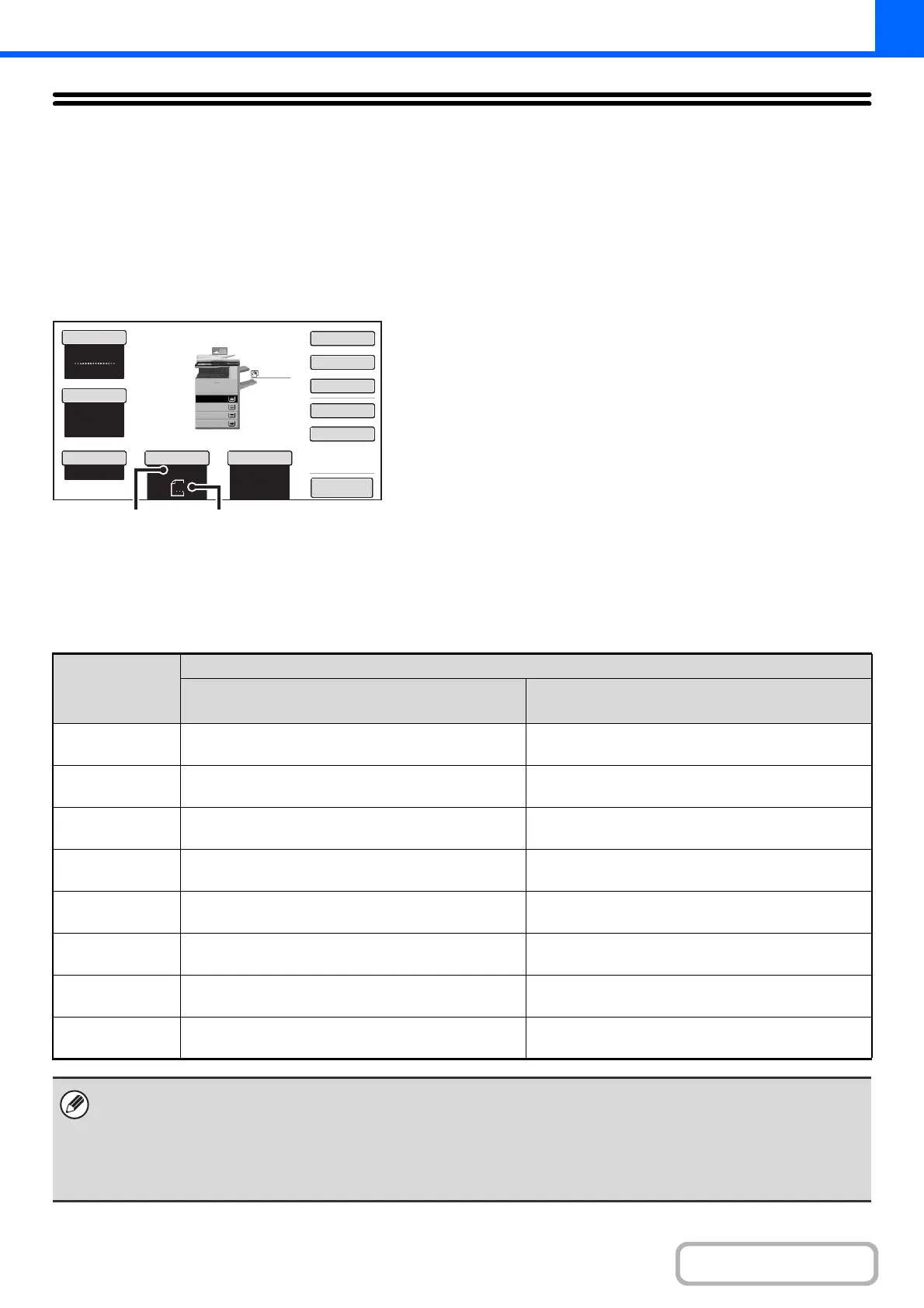

CHECKING THE ORIGINAL SIZE
When [Auto] appears in the [Original] key, the size of the placed original is automatically detected. The machine automatically
detects the original size when an original is placed and displays the size in the [Original] key in the base screen.
Example of base screen
The original size is displayed.
Standard sizes
Standard sizes are sizes that the machine can automatically detect. The standard sizes are set in "Original Size
Detector Setting" in the system settings (administrator). The factory default setting is "AB-1 (Inch-1)".
List of original size detector settings
Selections
Standard sizes (detected original sizes)
Document glass
Document feeder tray
(automatic document feeder)
AB-1 A3, A4, A4R, A5, B4, B5, B5R A3, A4, A4R, A5, B4, B5, B5R, 8-1/2" x 11",
8-1/2" x 14", 11" x 17"
AB-2 A3, A4, A4R, A5, B5, B5R, 216 mm x 330 mm
(8-1/2" x 13")
A3, A4, A4R, A5, B4, B5, B5R, 8-1/2" x 11",
11" x 17", 216 mm x 330 mm (8-1/2" x 13")
AB-3 A4, A4R, A5, B4, 8K, 16K, 16KR A3, A4, A4R, A5, B4, 8K, 16K, 16KR, 8-1/2" x 11",
11" x 17", 216 mm x 330 mm (8-1/2" x 13")
AB-4 A3, A4, A4R, A5, B5, B5R,
216mmx340mm (8-1/2"
x 13-2/5 ")
A3, A4, A4R, A5, B4, B5, B5R, 8-1/2" x 11",
11" x 17", 216 mm x 340 mm (8-1/2"
x13 -2/5 ")
AB-5 A3, A4, A4R, A5, B5, B5R,
216mmx343mm (8-1/2"
x 13-1/2 ")
A3, A4, A4R, A5, B4, B5, B5R, 8-1/2" x 11",
11" x 17", 216 mm x 343 mm (8-1/2"
x13 -1/2 ")
Inch-1 11" x 17", 8-1/2" x 14", 8-1/2" x 11", 8-1/2" x 11"R,
5-1/2" x 8-1/2"
11" x 17", 8-1/2" x 14", 8-1/2" x 11", 8-1/2" x 11"R,
5-1/2" x 8-1/2", A4, A3
Inch-2 11" x 17", 8-1/2" x 13" (216 mm x 330 mm),
8-1/2" x 11", 8-1/2" x 11"R, 5-1/2" x 8-1/2"
11" x 17", 8-1/2" x 13" (216 mm x 330 mm),
8-1/2" x 11", 8-1/2" x 11"R, 5-1/2" x 8-1/2", A4, A3
Inch-3 11" x 17", 8-1/2" x13 -2/5 " (216 mm x 340 mm ) ,
8-1/2" x 11", 8-1/2" x 11"R, 5-1/2" x 8-1/2"
11" x 17", 8-1/2" x13 -2/5 " (216 mm x 340 mm ) ,
8-1/2" x 11", 8-1/2" x 11"R, 5-1/2" x 8-1/2", A3, A4
• When the automatic original detection function is operating and the original is a non-standard size (an inch size or special
size), the closest standard size may be displayed or the original size may not appear. In this event, manually set the
correct original size.
☞ SPECIFYING THE ORIGINAL SIZE (page 2-29)
• When placing a non-standard size original on the document glass, you can make it easier for the size to be detected by
placing a blank sheet of A4 (8-1/2" x 11"), B5 (5-1/2" x 8-1/2"), or other standard size of paper on top of the original.
(A) "Auto" appears when the automatic original detection function is
operating.
(B) The original size is displayed. An icon shows the orientation of
the original.
Colour Mode
Special Modes
2-Sided Copy
Output
File
Quick File
Copy Ratio
100%
Original
Paper Select
Auto
A4
Plain
Auto
Full Colour
Exposure
Auto
A4
Preview
Plain
A3
3.
1.
2.
A4R
B4
4.
A4
A4
(B)
(A)

Sharp MX-2314N Specifications

General

Print Technology	Laser
Print Speed	23 ppm
Print Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Copy Speed	23 cpm
Copy Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Duplex Printing	Yes
Connectivity	USB, Ethernet
Functions	Print, Copy, Scan, Fax
Paper Size	A3, A4, A5, B4, B5
Max Paper Size	A3
Original Size	A3
