MX-5111N MX-KB11 (KEYBOARD) 28 – 2

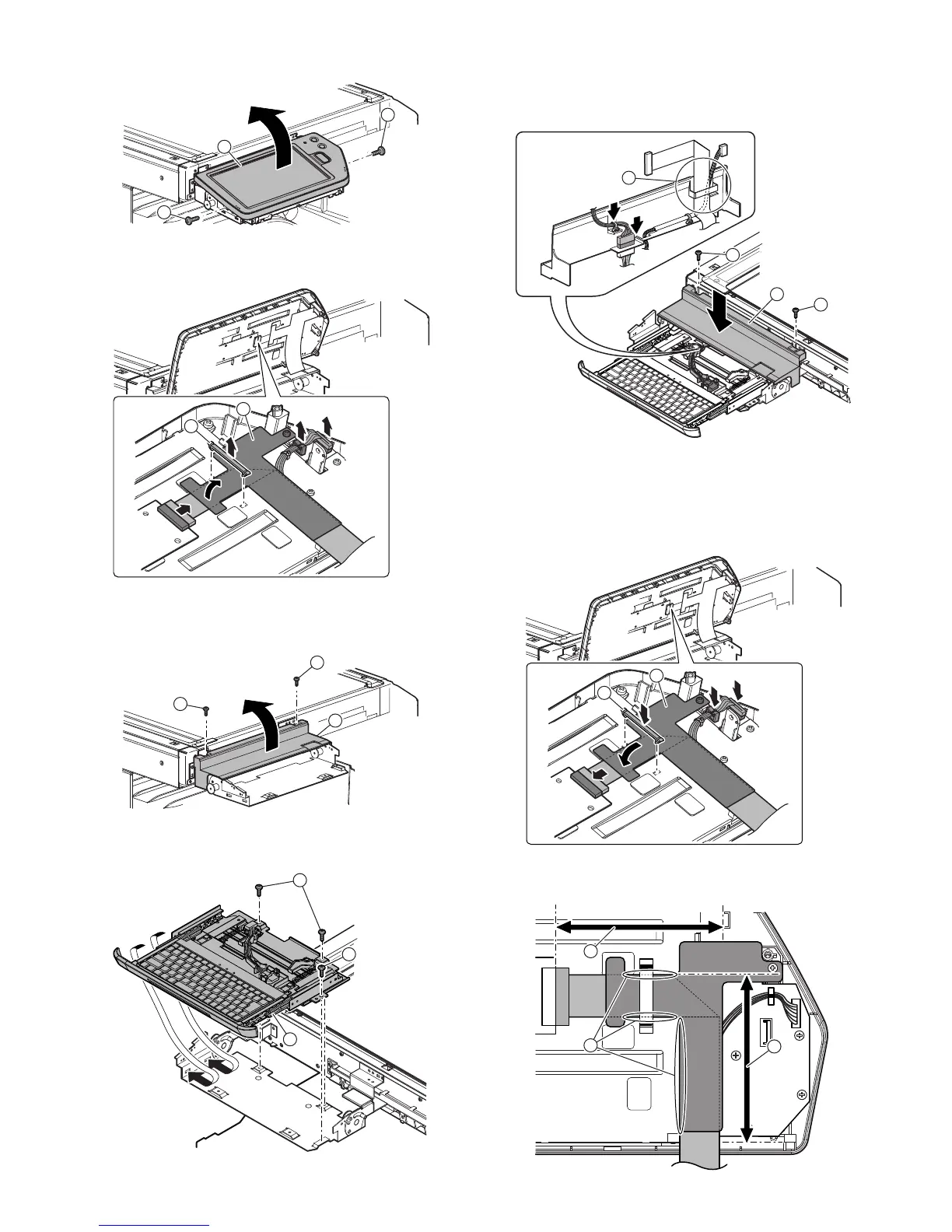

3) Turn over the operation panel unit.
4) Remove the clamp. Peel off the mylar and disconnect the con-
nector.
C. Keyboard unit attachment
1) Turn over the operation section cover.
2) Attach the keyboard unit (Packed items) and fix it with the fix-
ing screw (Packed items).
3) Connect the keyboard interface harness and attach the opera-
tion section cover.
NOTE: Be sure to place the key interface harness between the
operation section cover and the FFC. (Section A)
D. Operation panel attachment
1) Connect the connector to the operation panel unit , and fix the
harness with the clamp.
NOTE: When assembling, put the mylar on the flat cable and fix
them with the clamp.
NOTE: Fit the flat cable edges with sections A of the Mylar, and
remove slack in sections B of the flat cables.
1
1
2
2
1
1
1
2
2
2
1
2
2
1
A
1
2
B
B
A
