MX-5111N MX-FN11 (FINISHER) 14 – 3
2. Installation
NOTE: When the finisher is installed, first install the paper pass
unit, and then install the finisher.
NOTE: When the finisher and punch unit is installed at the same
time, first install the punch unit, and then install the finisher.

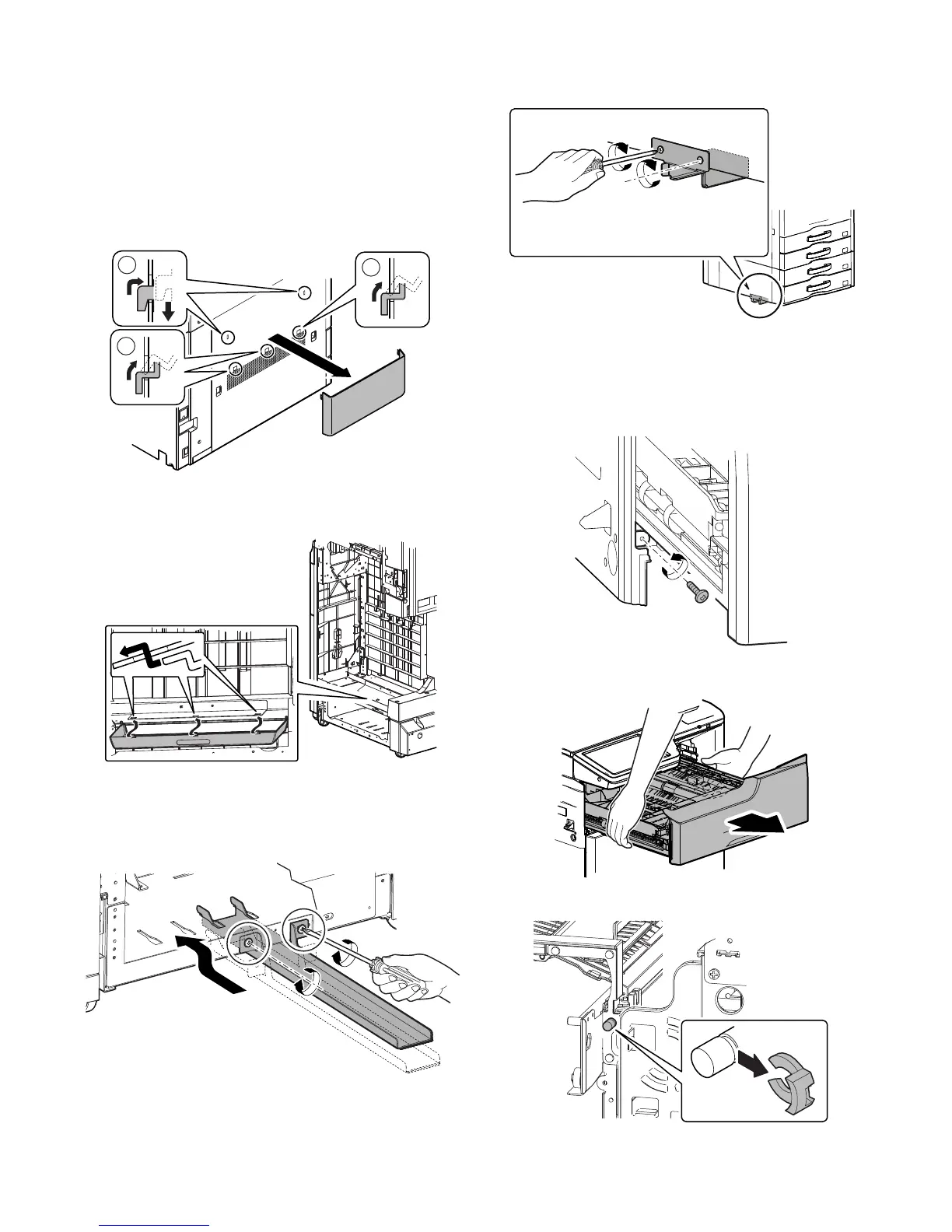

A. Replacement of the Operation Manual storage
cover
1) Remove the Operation Manual storage cover on the left side of
the machine.
2) Install the Operation Manual storage cover (which was
removed from the machine) to the finisher.
B. Installation of the rail
1) Install the rail (Packed items) to the finisher with the fixing
screws (Packed items).
2) Install the rail reception sheet metal (Packed items) to the main
unit with the fixing screws (Packed items).
C. Removal of the paper pass latch reception
parts and the positioning pin
1) Remove the screw, and release the paper pass disconnection
preventing lever.
2) Remove the paper pass unit.
3) Remove the resin E-ring that secures the reverse tray.
