MX-5111N MX-PNX5A/B/C/D (PUNCH MODULE) 13 – 1
MX-5111N
Service Manual
[13] MX-PNX5A/B/C/D (PUNCH MODULE)

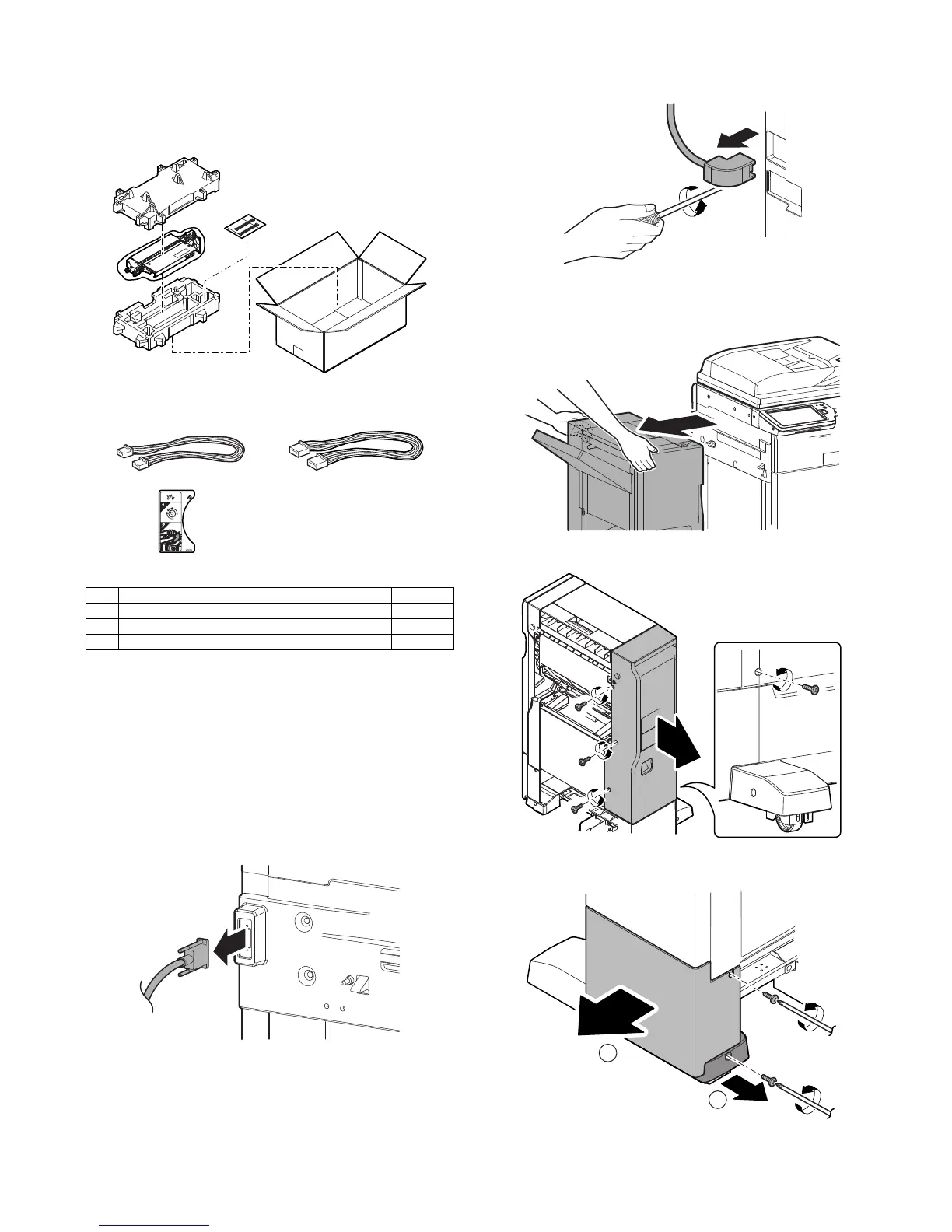

1. Unpacking
A. Removal of the punch unit
B. Packed items check
* Use the punch position labels bundled with the MX-FN10.
2. Installation
NOTE: Before installation, be sure to turn both the operation and
main power switches off and disconnect the power plug
from the power outlet. Make double sure that the data lamp
on the operation panel does not light up or blink when per-
forming installation.
A. Installation of the punch unit
1) Disconnect the connector between the main unit and the sad-
dle finisher.
2) Release the lock and separate the saddle finisher from the
main unit.
3) Remove the screw, and remove the rear cover.
4) Remove the screw, and remove the front lower cover.
No. Name Quantity
1 Harness A (Purple) 1
2 Harness B (Gray) 1
3 Punch jam processing label 1
To Next Page
