MX-5111N MX-4110N/5110N/4111N/5111N/4112N/5112N (MAIN UNIT) 2 – 7
3. Image quality check
A. Execution items
Execute the following items.
B. Description
(1) Print engine image distortion adjustment (Manual
adjustment) / OPC drum phase adjustment
(Automatic adjustment) / Color registration
adjustment (Automatic adjustment)
This adjustment performs the print engine image distortion adjust-
ment, the OPC drum phase adjustment, and the color registration
adjustment simultaneously.

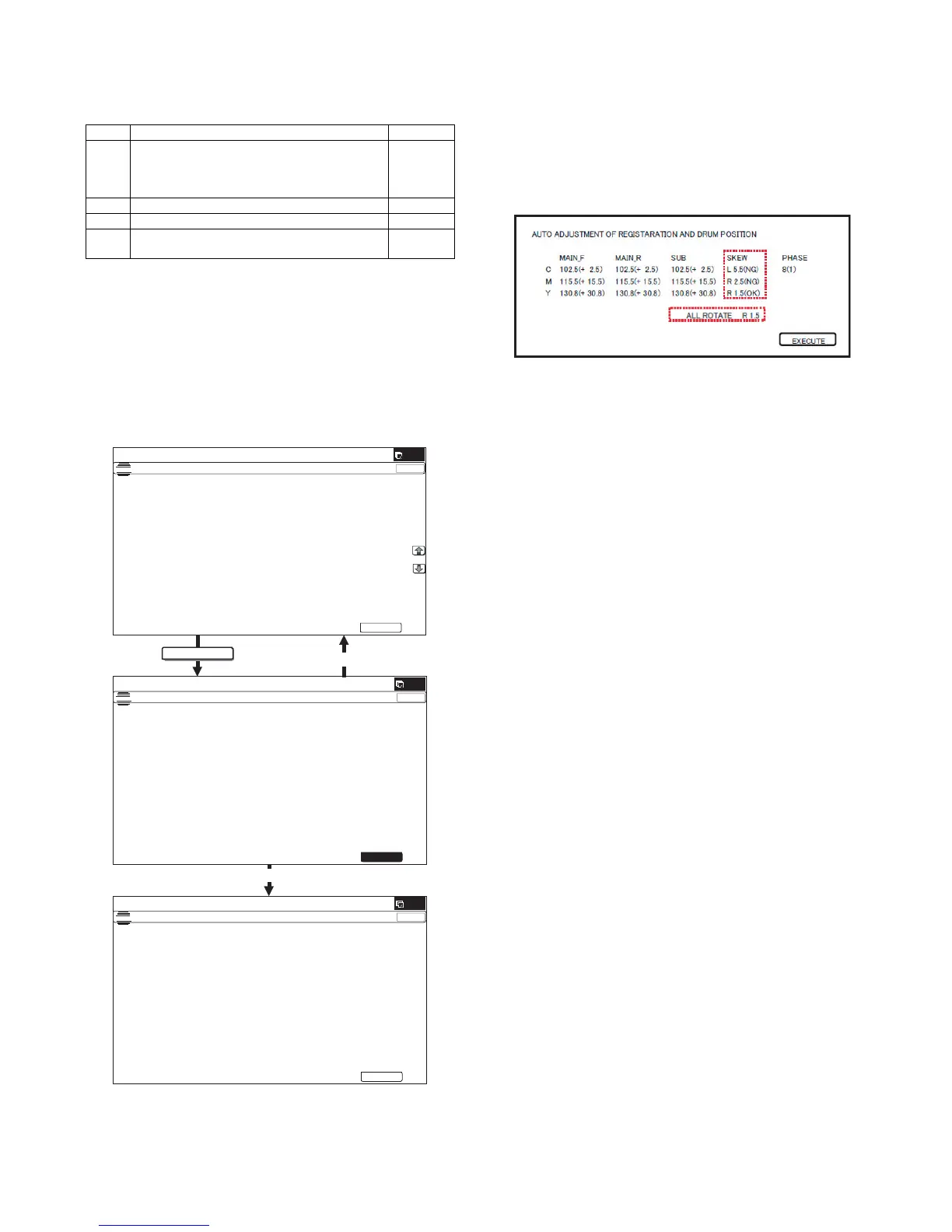

1) Enter SIM50-22 mode.
2) Press [EXECUTE] key.
[EXECUTE] key is highlighted and the image registration auto-
matic adjustment is started. (It takes about 15 sec to complete
the adjustment.)
3) When the adjustment is completed, [EXECUTE] key returns to
the normal display, and the value of the adjustment result is
displayed.
The current skew level for each color is displayed on the
SKEW display section.
No. Item SIM
1 Print engine image distortion adjustment (Manual
adjustment) / OPC drum phase adjustment
(Automatic adjustment) / Color registration
adjustment (Automatic adjustment)
50-22
2 Copy color balance and density check
3 Printer color balance/density check 64-5/67-25
4 Copy/Printer color balance and density adjustment
(Automatic adjustment)
46-74
0$,1)0$,1568%6.(:3+$6(
&/1*
0/1*
</1*
$//B527$7(/
