MX-5111N MX-FN18 (SADDLE STITCH FINISHER) 15 – 1
MX-5111N
Service Manual
[15] MX-FN18 (SADDLE STITCH FINISHER)

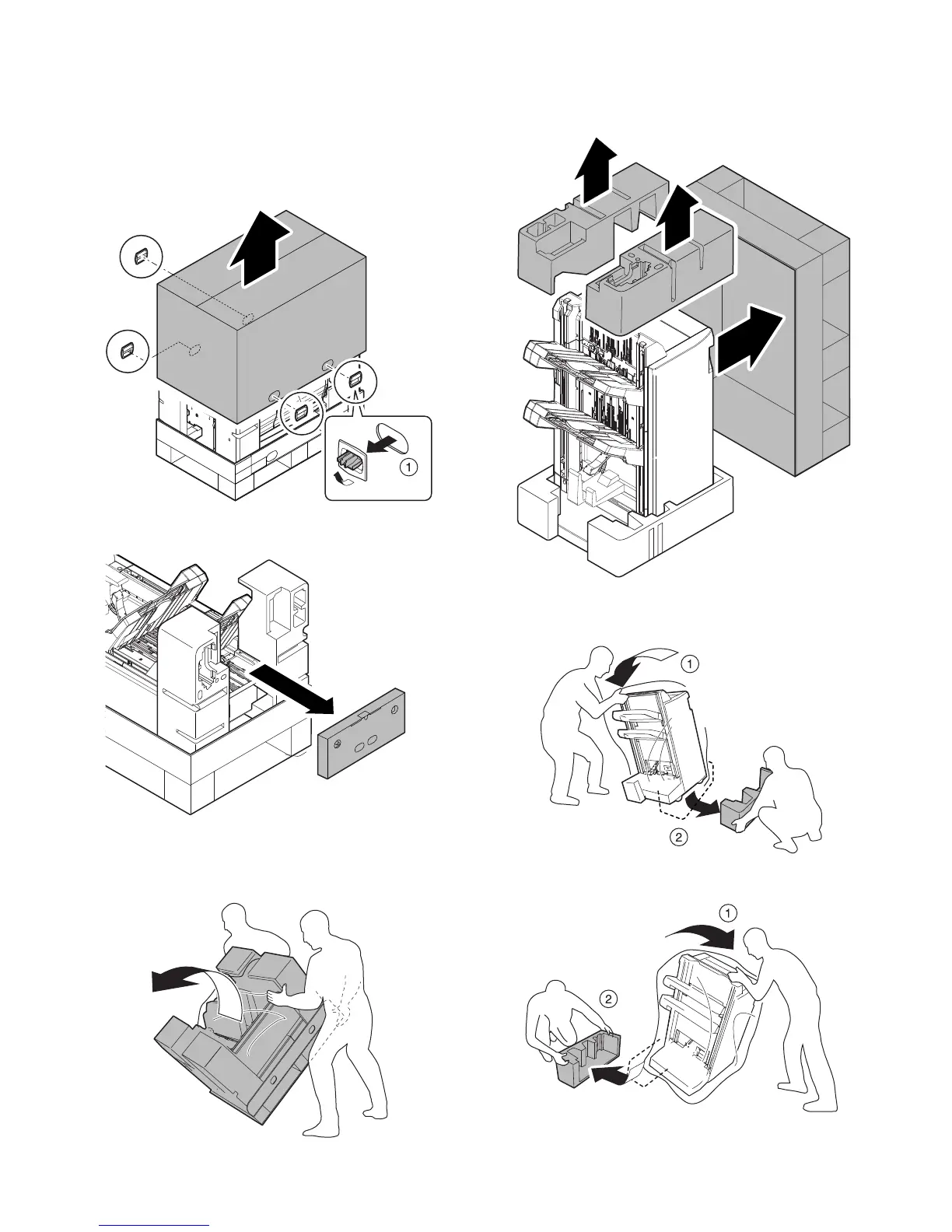

1. Unpacking
A. Removal of the saddle stitch finisher
* For removal of the saddle stitch finisher, manpower of two per-
sons or more is required.
1) Remove the fixing material, and remove the top case.
2) Remove the bundled items from packing cushion.
3) Holding the upper part of the saddle stitch finisher by two peo-
ple, pull up the saddle stitch finisher, and make it stand upright.
(Be careful to sliding worker's foot. )
4) Remove the skid and packing cushions.
5) One person tilt the saddle stitch finisher, another person
remove the lower tray.
6) Remove the other side similarly.
To Next Page
