MX-5111N MX-LC11 (LARGE CAPACITY TRAY) 6 – 1
MX-5111N
Service Manual
[6] MX-LC11 (LARGE CAPACITY TRAY)

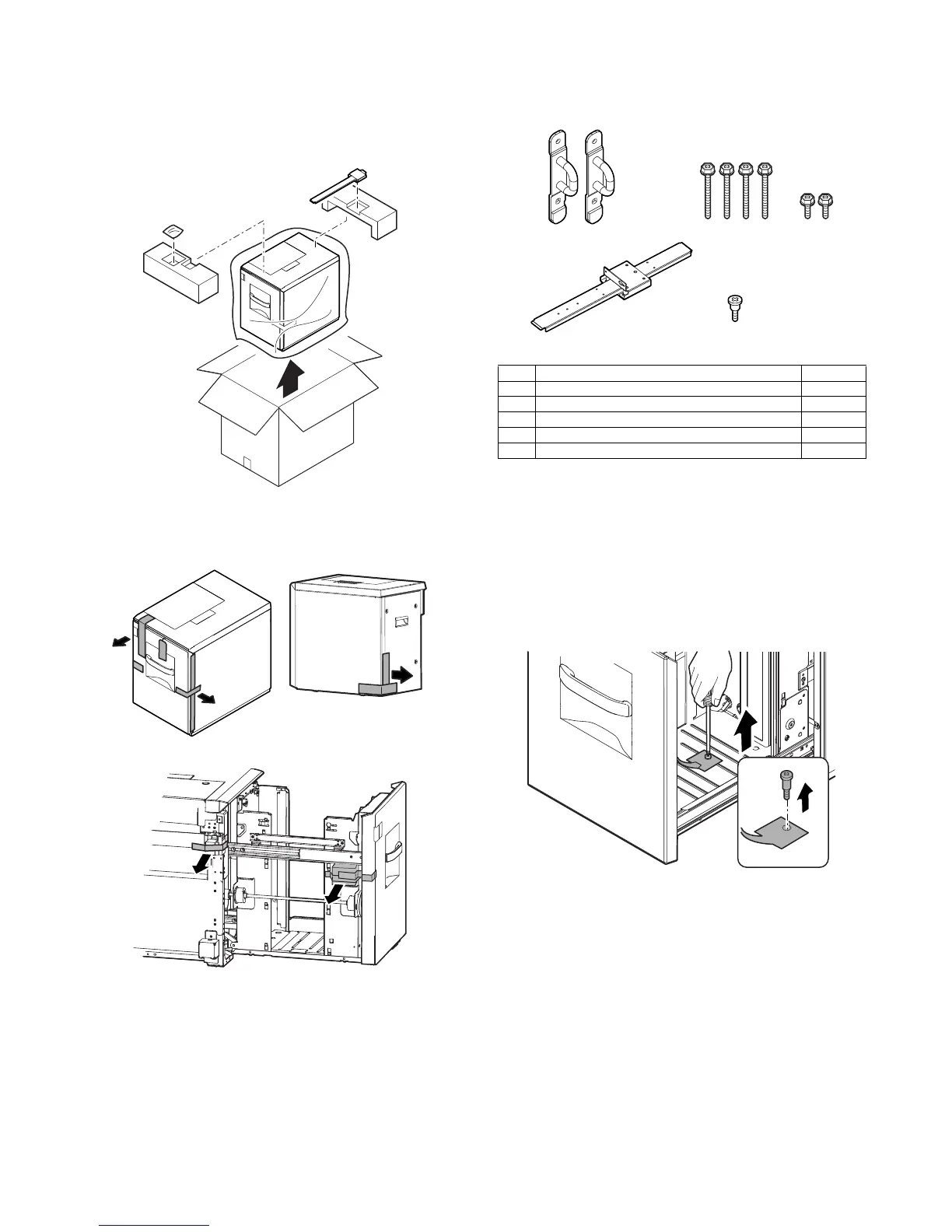

1. Unpacking
A. Removal of the large capacity tray unit
B. Removal of the fixing material and packing
parts
C. Packed items check
2. Installation
NOTE: Before installation, be sure to turn both the operation and
main power switches off and disconnect the power plug
from the power outlet. Make double sure that the data lamp
on the operation panel does not light up or blink when per-
forming installation.
A. Release the lock
1) Remove the paper feed desk fixing screw.
NOTE: Before turning on the power, check to insure that the fixing
screw of the tray is removed. If the power is turned on with-
out removing the fixing screw, a trouble may be resulted.
No. Name Quantity
1 Mounting plate upper 2
2 Connection unit 1
3 Fixing screw A (Hexagon with seat, S-tight, M4 x 35) 4
4 Fixing screw B (Hexagon with seat, S-tight, M4 x 12) 2
5 Fixing screw C (screw 4 x 8 cup) 1
1
34
25
