MX-5111N MX-DS15 (STAND) 5 – 1
MX-5111N
Service Manual
[5] MX-DS15 (STAND)

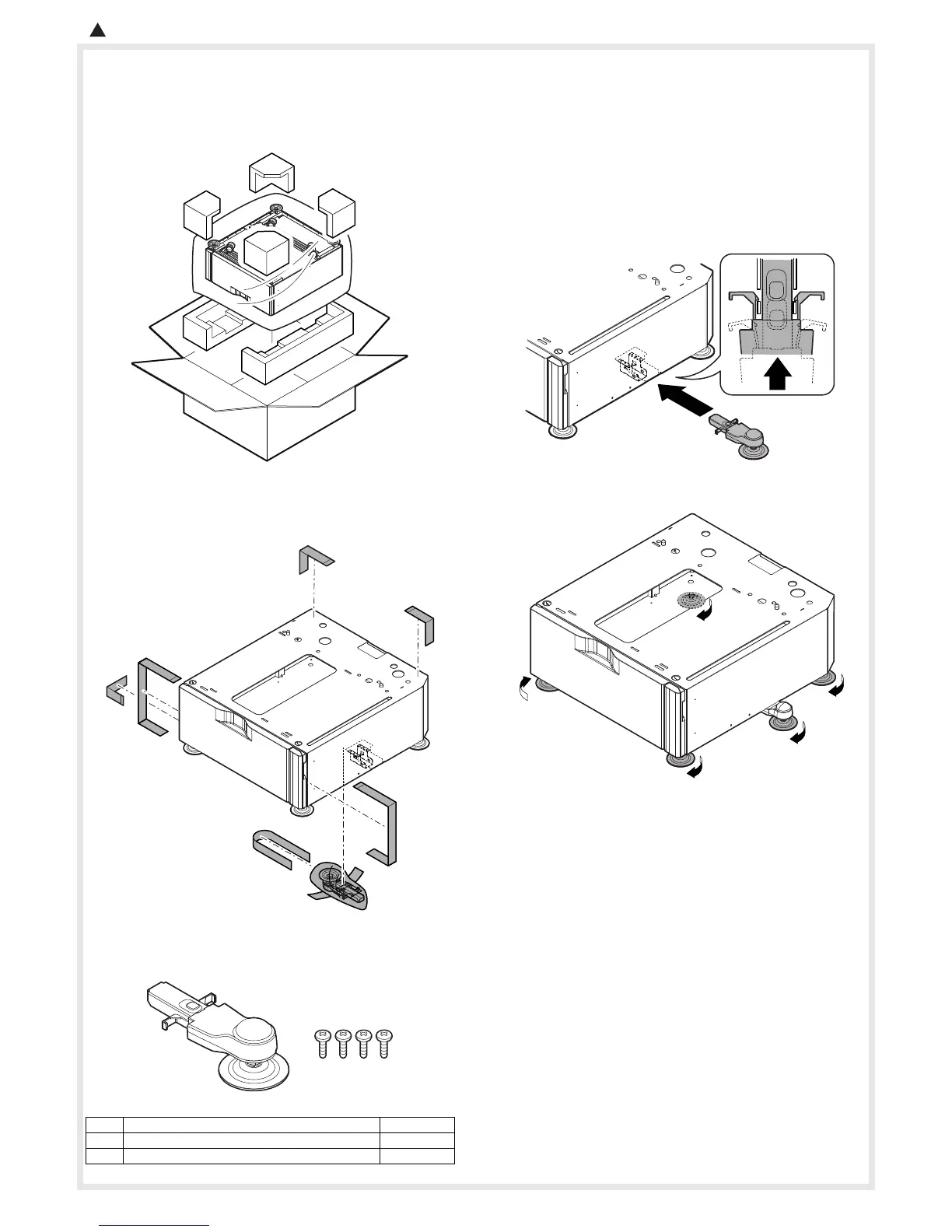

1. Unpacking
A. Removal of the stand unit
B. Removal of the fixing material and packing
parts
C. Packed item check
2. Installation
NOTE: Before installation, be sure to turn both the operation and
main power switches off and disconnect the power plug
from the power outlet. Make double sure that the data lamp
on the operation panel does not light up or blink when per-
forming installation.
A. Installation of the adjuster
1) Attach the right adjuster included in the package to the
machine stand.
* Insert the right adjuster until it is locked.
2) Turn each adjuster to fix the machine stand.
No. Name Quantity
1 Right adjuster 1
2 Fixing screws (M4 x 10) 4
12
: '11/Jul/25
