MX-5111N MX-PNX5A/B/C/D (PUNCH MODULE) 13 – 2

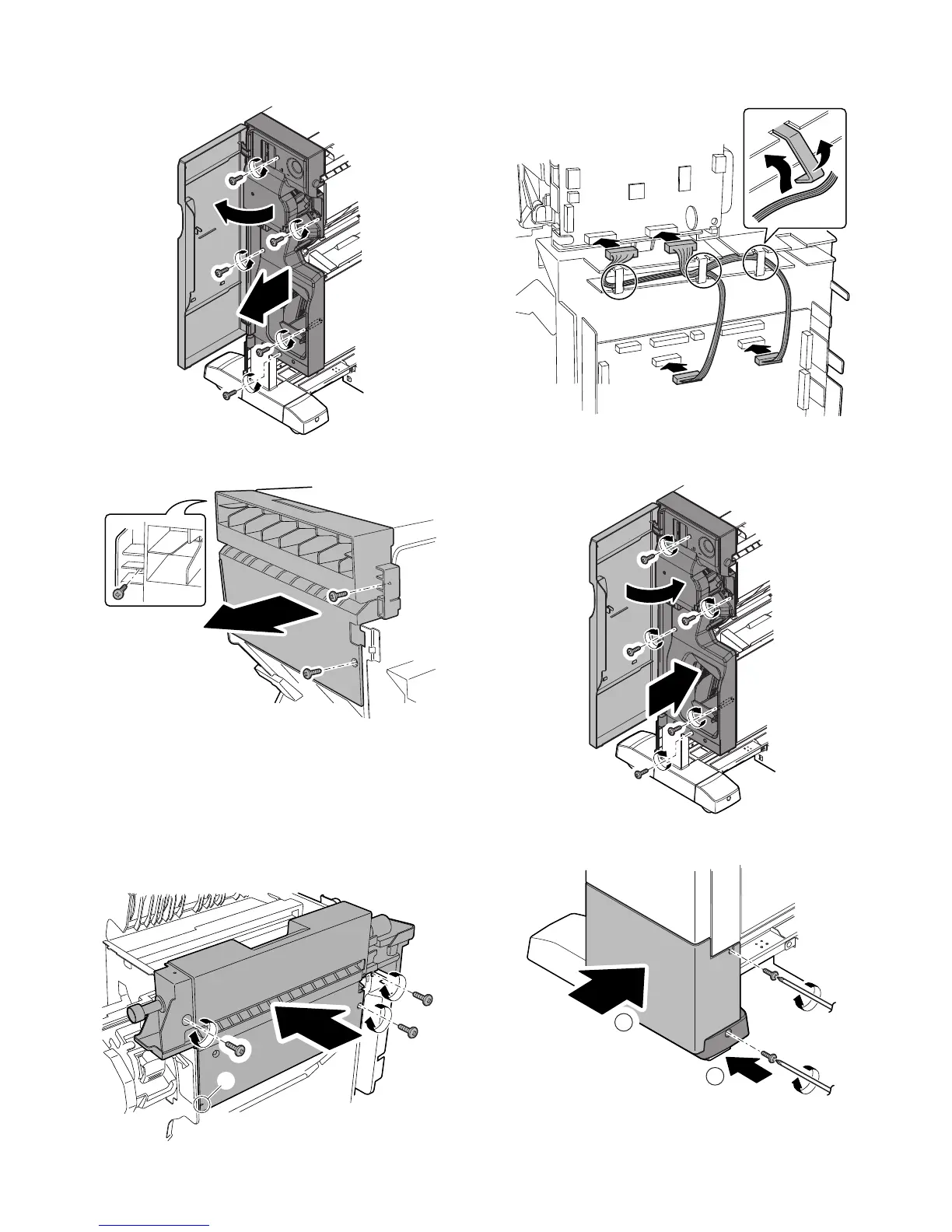

5) Open the front cover. Remove the screw, and remove the front
inner cover.
6) Remove the screw, and remove the dummy punch guide.
7) Install the punch unit to the saddle finisher.
Fix the punch unit with the screw which was removed from the
dummy punch guide.
* Before installing, remove the dust box.
* Check to confirm that the punch guide pin is securely
inserted into the guide pin insertion hole of the finisher.
* Check to confirm that the pawl (A) is engaged with the plate
frame.
8) Connect the harness on the punch unit side with the PWB on
the finisher side.
9) Fix the front inner cover with screws, and close the front
cover.
10) Fix the front lower cover with a screw.
To Next Page
