MX-5111N MX-DE15/DE16 (STAND/1x500/2x500 SHEET PAPER DRAWER) 4 – 2

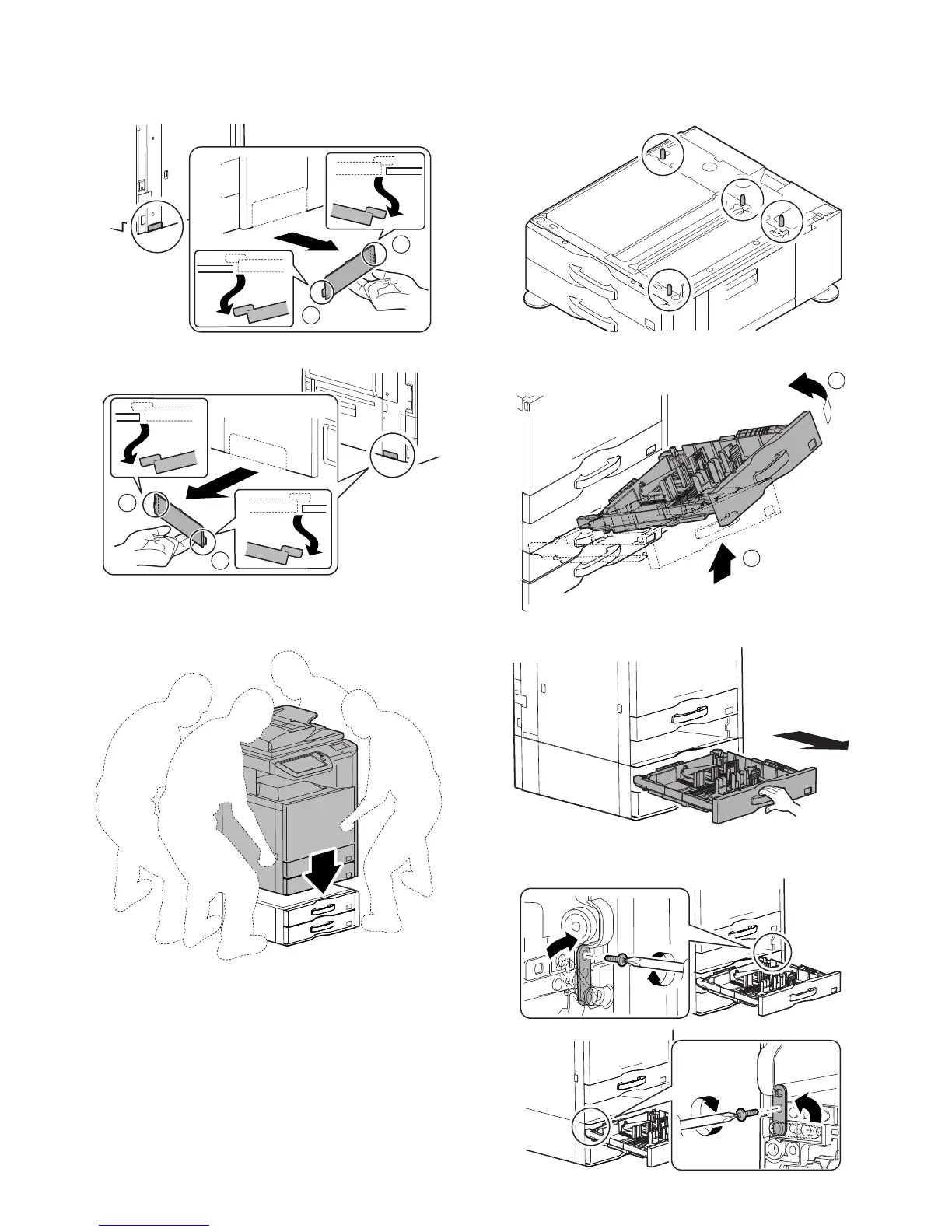

B. Connection of the main unit and the desk unit
1) Remove the connection plate covers of the both sides of the
main unit.
2) Put the main unit on the desk unit.
* Use man power of four persons or more to lift the main unit.
* Place the main unit on the desk unit slowly by fitting the
external lines. Check to insure that the positioning pin on the
top of the desk unit is securely engaged in the positioning
groove of the main unit.
3) Remove the No. 2 paper feed tray.
4) Pull out the No. 3 paper feed tray until it stops.
5) Lift the connection plates on the right and left of the main unit
front side, and fix them with the fixing screws (Packed items).
To Next Page
