MX-5111N MX-FN18 (SADDLE STITCH FINISHER) 15 – 8

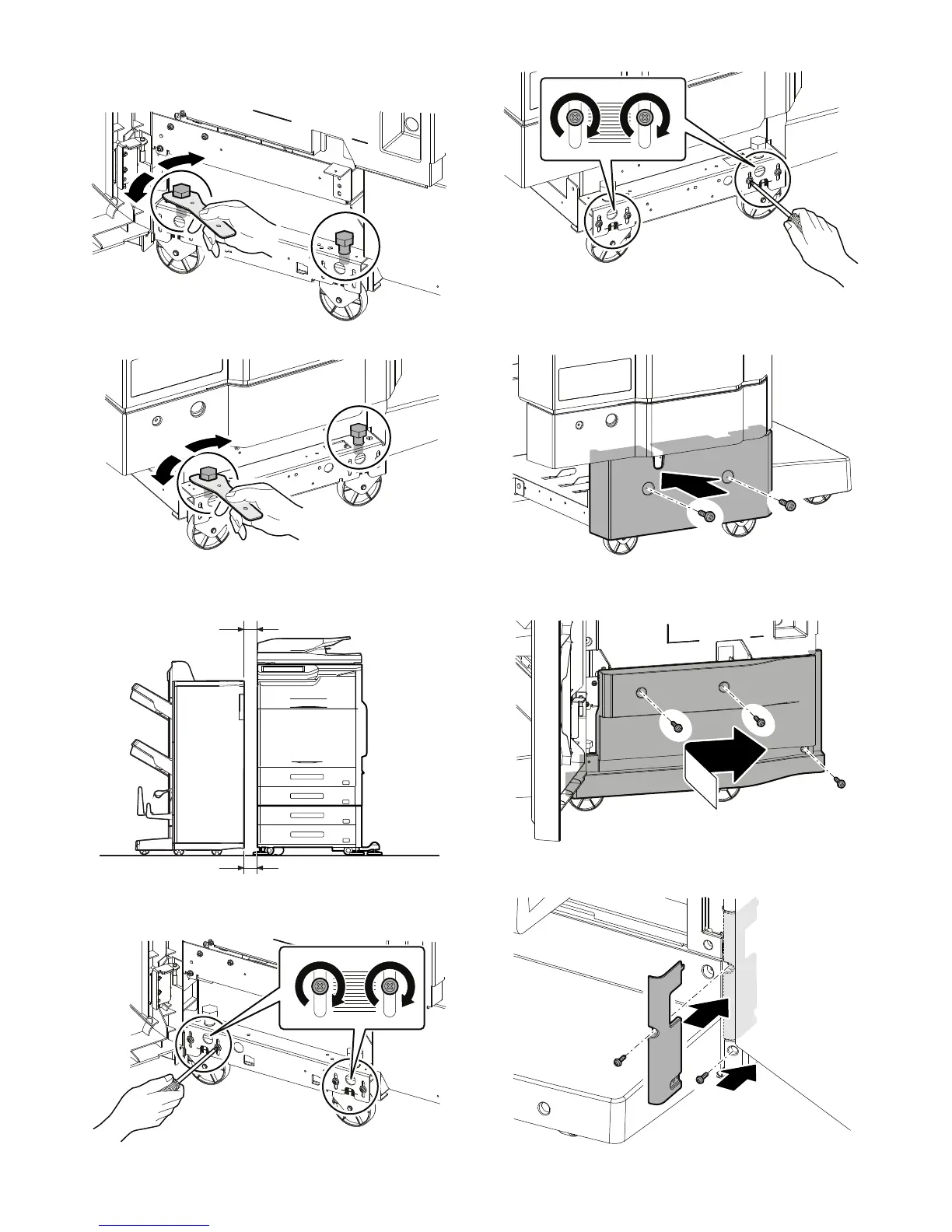

11) Turn the bolt for which the adjustment is necessary, and adjust
to become it within the range of specification.
12) Check to insure that the upper and lower clearances between
the main unit and the finisher are even.
13) Tighten the caster fixing screws so that the indicator scale is
fit.
14) Install the rear lower cover with the fixing screws.
15) Install the front lower cabinet 2 with the fixing screws.
16) Install the front lower cabinet 1 with the fixing screws.
