1-2
BEFORE USING THE MACHINEâ–ºBEFORE USING THE MACHINE

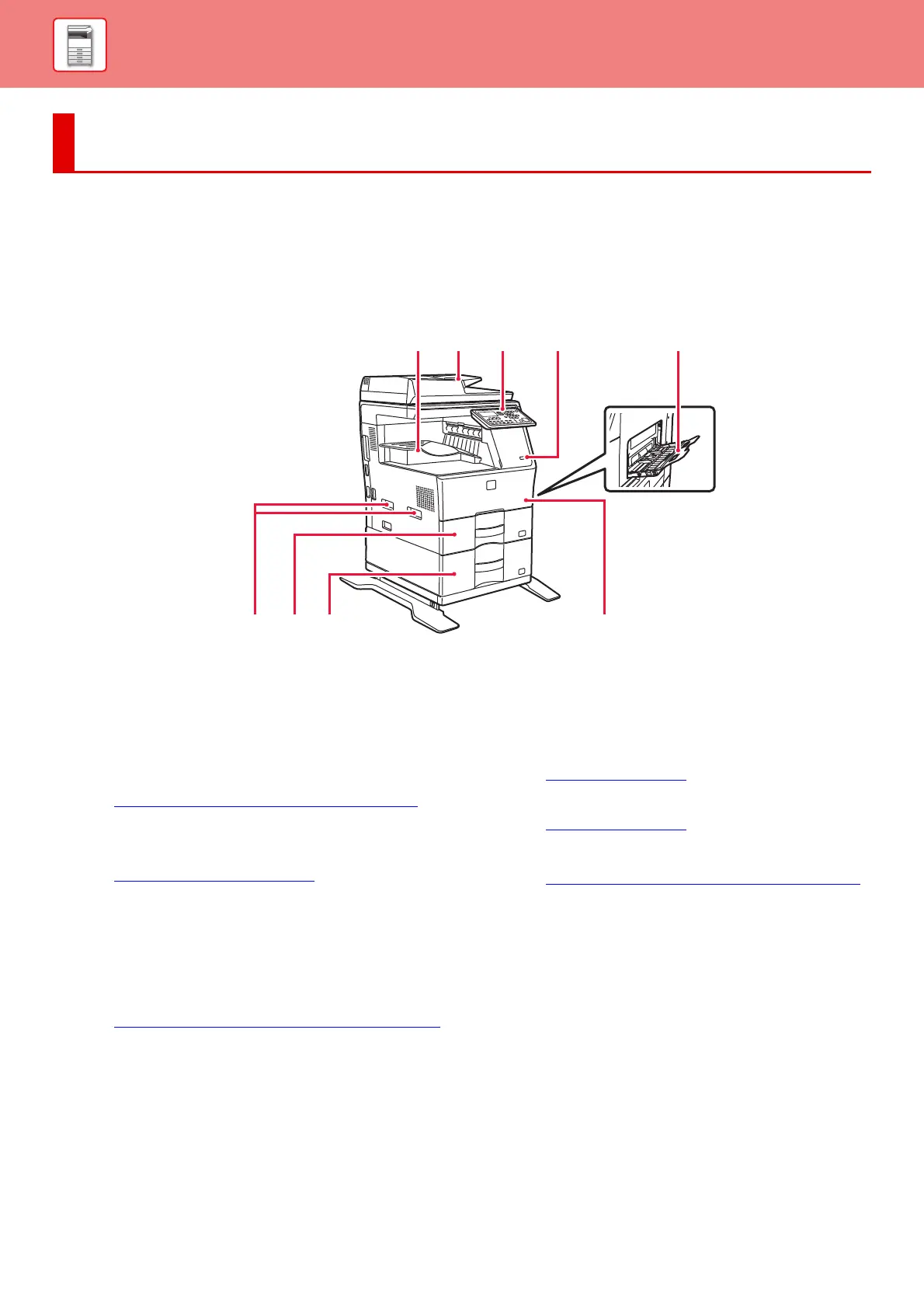

PART NAMES AND FUNCTION
EXTERIOR
(1) Output tray (exit tray cabinet)
Received faxes and printed papers are delivered to this tray.
(2) Automatic document feeder
It automatically feeds and scans multiple originals. 2-sided
originals can be automatically scanned.
â–º AUTOMATIC DOCUMENT FEEDER (page 1-30)
(3) Operation panel
This panel hosts the [ENERGY SAVE] key/indicator, Printer
mode indicator, FAX mode indicators, and operation keys.
â–º OPERATION PANEL (page 1-5)
(4) USB port (A type)
This is used to connect a USB device such as a USB
memory device to the machine.
Supports USB 2.0 (Hi-Speed).
(5) Bypass tray
Use this tray to feed paper manually.
When loading paper, also open the extension tray.
â–º
LOADING PAPER INTO THE BYPASS TRAY (page 1-24)
(6) Handle
Grasp it when moving the machine.
(7) Tray 1
Store paper in this tray.
â–º
TRAY 1 - 2 (page 1-21)
(8) Tray 2 (when a 600-sheet paper feed unit is installed)
*
Store paper in this tray.
â–º
TRAY 1 - 2 (page 1-21)
(9) Front cover
Open this cover to replace a toner cartridge.
â–º
REPLACEMENT OF TONER CARTRIDGE (page 1-36)
*Optional
BEFORE USING THE MACHINE
(1) (5)(2) (3) (4)
(7)(6) (8) (9)
To Next Page
