1-3
BEFORE USING THE MACHINE►BEFORE USING THE MACHINE

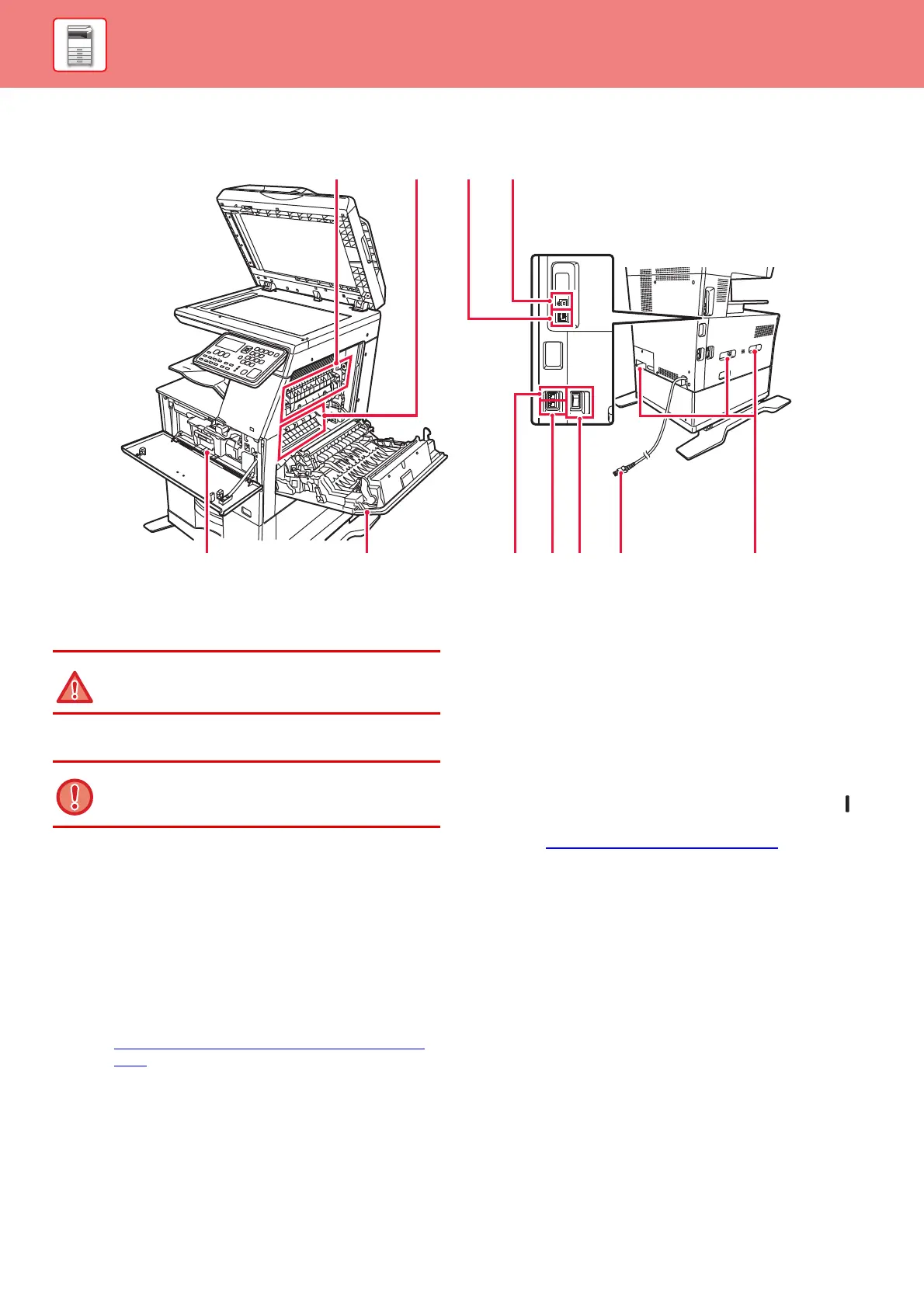

INTERIOR, SIDE AND BACK
(1) Fusing unit
Heat is applied here to fuse the transferred image onto
the paper.
(2) Photoconductive drum unit
Images are formed on the photoconductive drum.
(3) LAN connector
Connect the LAN cable to this connector when the
machine is used on a network.
Use a shielded LAN cable.
(4) USB port (B type)
The machine does not use this connector.
(5) Toner cartridge
This cartridge contains toner.
When the toner in a cartridge runs out, replace with new
one.
► REPLACEMENT OF TONER CARTRIDGE (page
1-36)
(6) Side cover
Open this cover to remove a paper misfeed.
(7) Telephone line jack (LINE)
When the fax function of the machine is used, the
telephone line is connected to this jack.
(8) Extension phone jack (TEL)
When the fax function of the machine is used, an
extension phone can be connected to this jack.
(9) The main power switch
Use this switch to turn on the power for the machine.
When using the fax, always keep this switch in the “ ”
position.
►
TURNING ON THE POWER (page 1-11)
(10) Power plug
(11) Handle
Grasp it when moving the machine.
(5) (6) (11)(7) (8) (9) (10)
(1) (2) (3) (4)
The fusing unit is hot. Take care not to burn yourself
when removing a misfeed.
Do not touch or damage the photoconductive drum
and the transfer roller.
This may cause a defective image.
