MX-M503N MX-PNX1 5 – 3

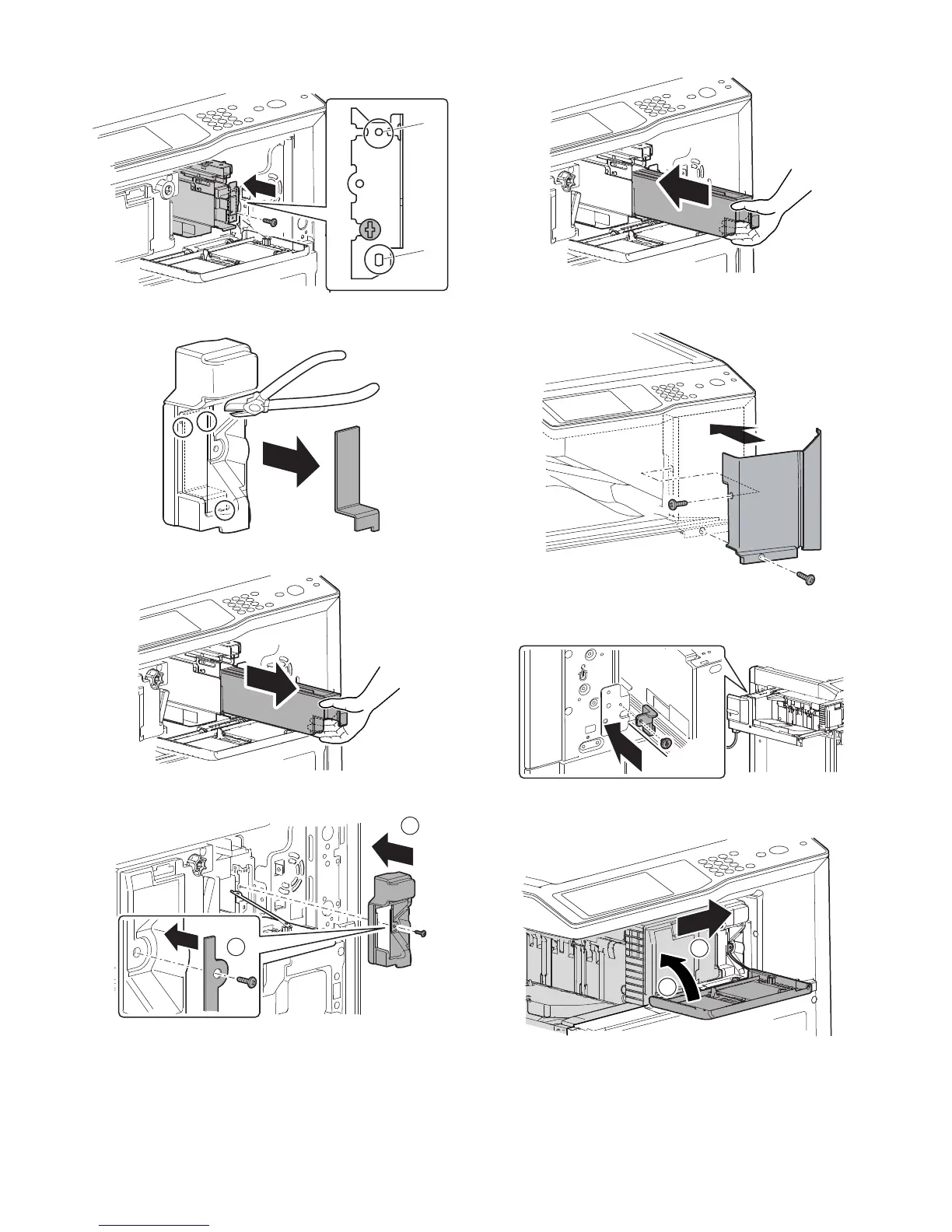

9) Make positioning with the dove (A) and fix the punch unit with
the screw which was fixing the dummy punch unit.
10) Cut the lid of the punch cover with nippers.
11) Remove the dust box.
12) Fix the punch cover and the band together with one screw.
13) Insert the dust box.
14) Install the front cabinet upper part using the two screws
removed in step 5).
15) Insert the finisher slide stopper between the slide rail and the
accuride, and fix it with the coin screw.
16) Slide the inner finisher to the original position, and close the
front cover.
