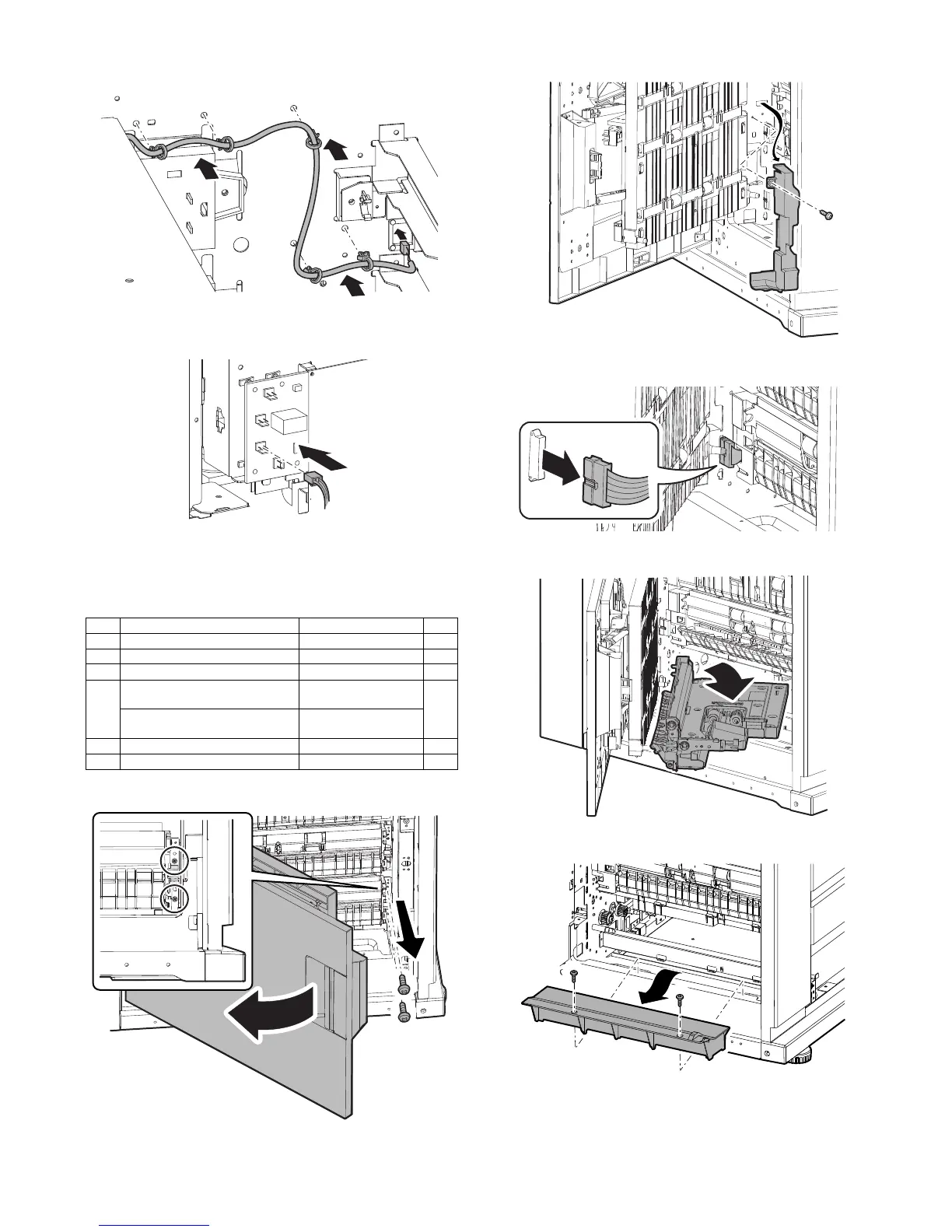

MX-M753N DRY HEATER INSTALLATION 24 – 3
4) Fix the harness with the snap band, and pass it through the
edge saddle.
5) Connect the connector to the dehumidify8ing heater relay
PWB.
4. Dry heater (paper feed trays 3, 4)
installation
1) Open the left under cabinet.
2) Remove the connector cover.
3) Disconnect the connector.
4) Remove the lower stage of the paper trays 3/4 paper feed unit.
5) Remove the paper feed lower cover.
No. Part name Part code Q'ty
1 Heater mounting plate LPLTM6021FCZZ 1
2 Edge saddle (EH11) LHLDW1285FCZZ 1
3 Heater radiating fin PRDAR0087FCZZ 1
4 Dry heater (120V)
(Paper feed trays 3, 4)
RHETP0117FCZZ 1
Dry heater (230V)
(Paper feed trays 3, 4)
RHETP0122FCZZ
5 Screw (M3 x 4) XHBSE30P04000 4
6 Screw (M3 x 6) XHBSD30P06000 2
To Next Page
