MX-M753N MX-FN15/FN16 5 – 1
MX-M753N
Service Manual
[5] MX-FN15/FN16

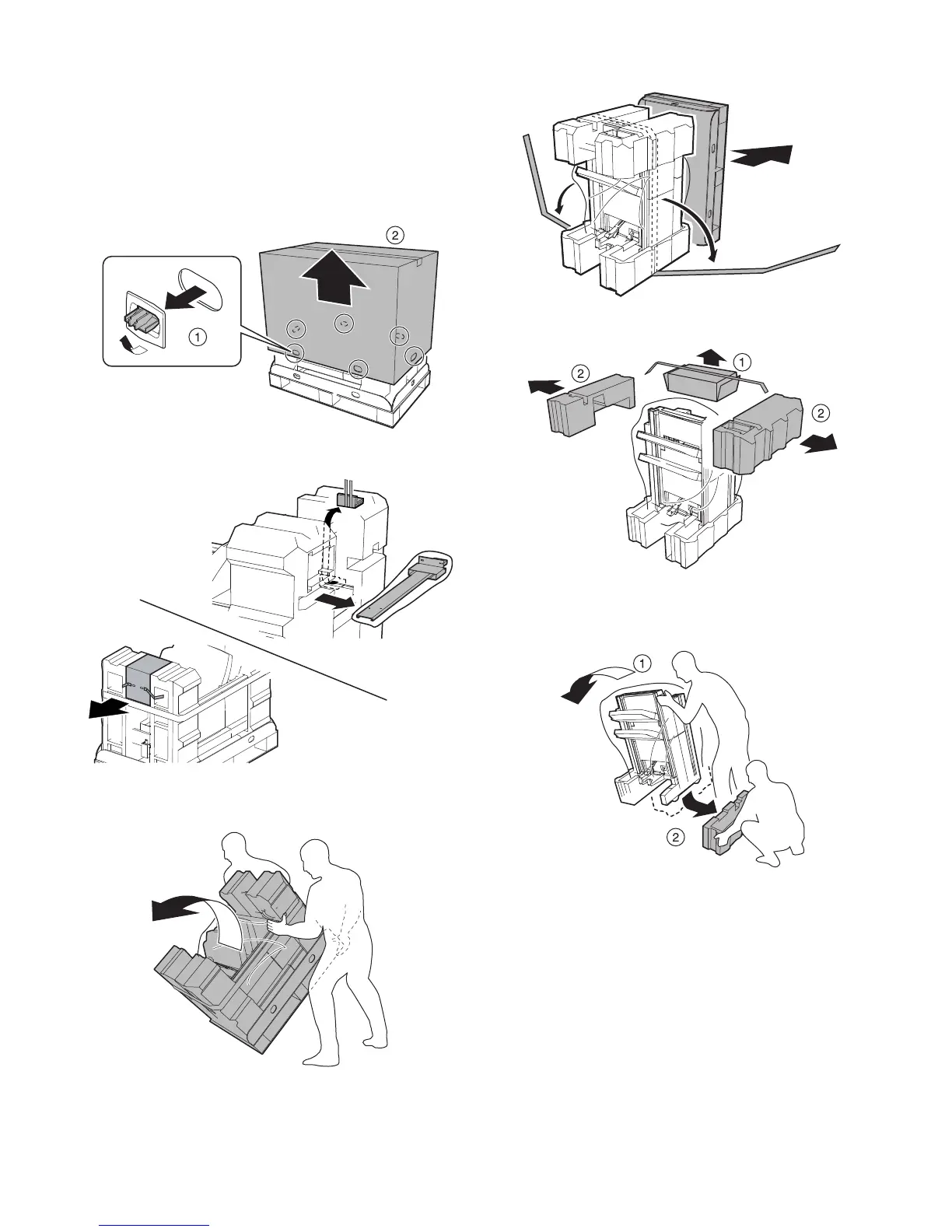

1. Unpacking
When removing or moving, be sure to perform by two persons not
to drop the unit.
A. Removal of the finisher
1) Remove the fixing member and remove the top case.
2) Remove the packaged parts from the add.
3) Hold the upper section of the machine with two persons, and
pull it up and stand it straight.
(The finisher is very heavy. Be careful.)
4) Remove the tape and the skid.
5) Remove the upper packing material.
6) One person holds the machine so that it does not fall down.
The other person tilts the machine a little to remove packing
material.
7) Bring the base of the unit into contact with the floor so that it
does not fall down.
(Be careful the base section can shift when the packing mate-
rial has been removed.)
