MX-M753N MX-CF10 4 – 10

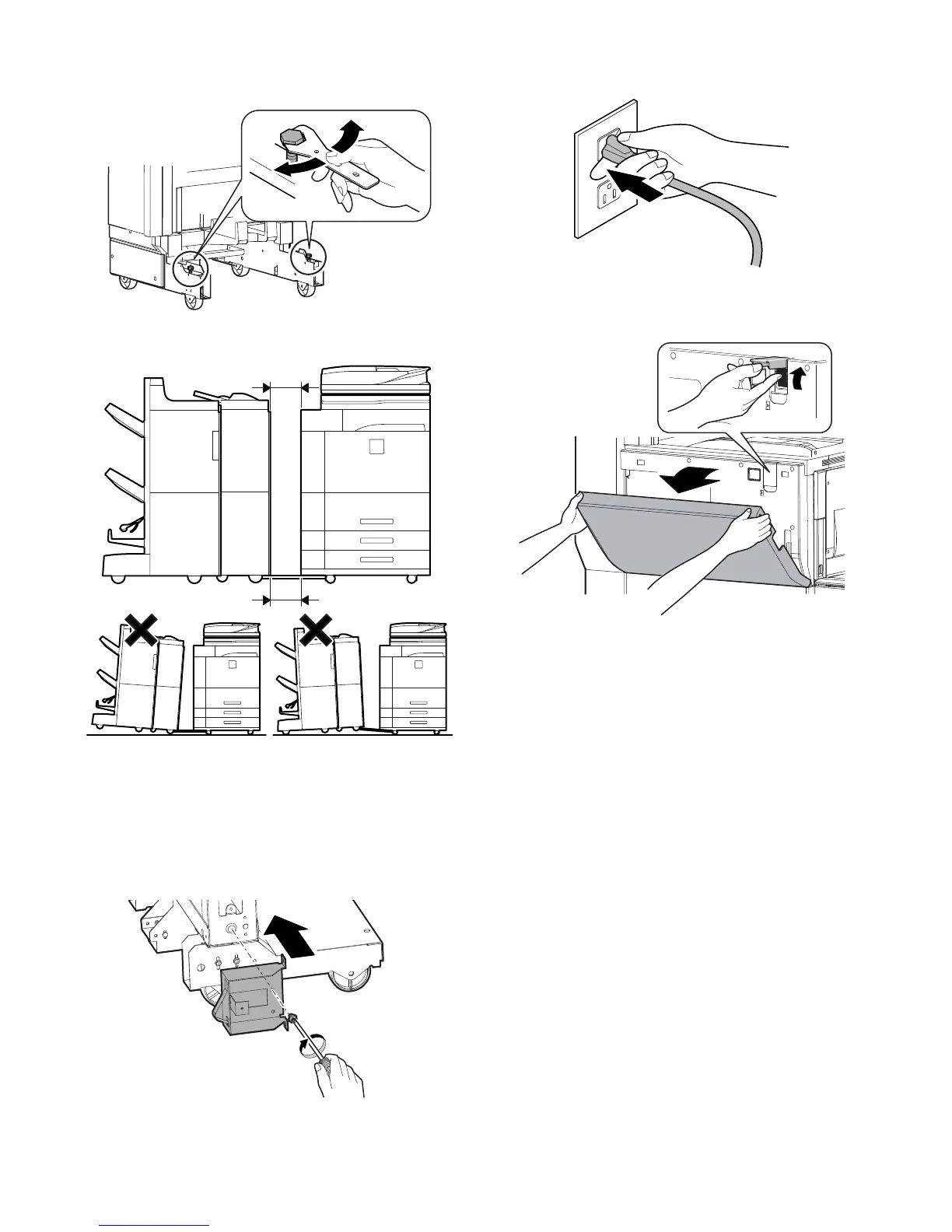

4) Turn the front and the rear side adjustment bolts with the span-
ner removed in step 1) so that the upper and the lower clear-
ances are the same.
5) Check that the upper and the lower clearances are even when
viewed from the front and the back.
6) Tighten the front and the rear side adjustment section fixing
screws (2 pcs. for each side).
7) Install the base cover (front and rear).
8) Return the spanner to the original position.
M. Install the plate
1) Hang the plate on the rear lower side of the inserter as shown
in the figure, and fix it with the fixing screw G (1 pc).
* At that time, check to insure that the upper and lower posi-
tioning tabs are in the plate holes.
NOTE: The plate and the connection plate are common to the fin-
isher. Please reuse rail and connector plate for inserter.
N. Turn on the power of the main unit
1) Insert the power plug of the main unit into the power outlet.
2) Open the front cabinet.
Turn ON the power switch in the front cabinet of the main unit.
3) Turn ON the power switch on the operation panel.
To Next Page
