MX-M753N MX-FN14 7 – 1
MX-M753N
Service Manual
[7] MX-FN14
1. Unpacking
When removing or moving, be sure to perform by two persons not
to drop the unit.

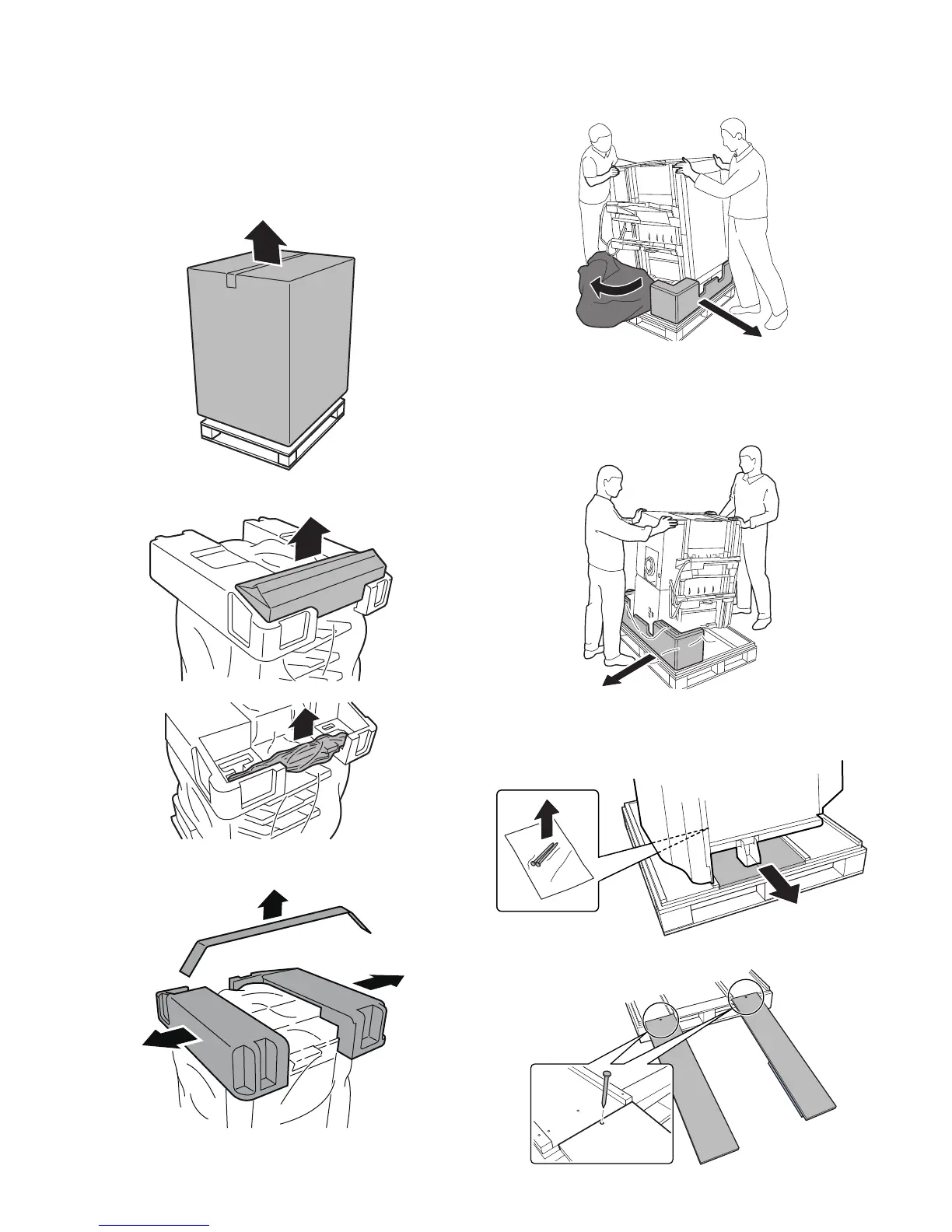

A. Removal of the finisher
1) Remove the fixing member and remove the top case.
2) Remove the packaged parts from the packing material.
3) Remove the upper packing material.
4) One person holds the machine so that it does not fall down.
The other person tilts the machine a little to remove packing
material. Remove the vinyl cover.
5) Bring the base of the unit into contact with the floor so that it
does not fall down.
(Be careful the base section can be unstable.)
6) Tilt the machine to the opposite side a little, and remove pack-
ing material on the opposite side. Remove the vinyl cover.
7) Slowly bring the base section of the machine on the opposite
side to contact with the floor.
8) Pull out the slope and the fixing pin from the pallet.
9) Fix the slope to the pallet with the screw.
