MX-M753N MX-FN15/FN16 5 – 2

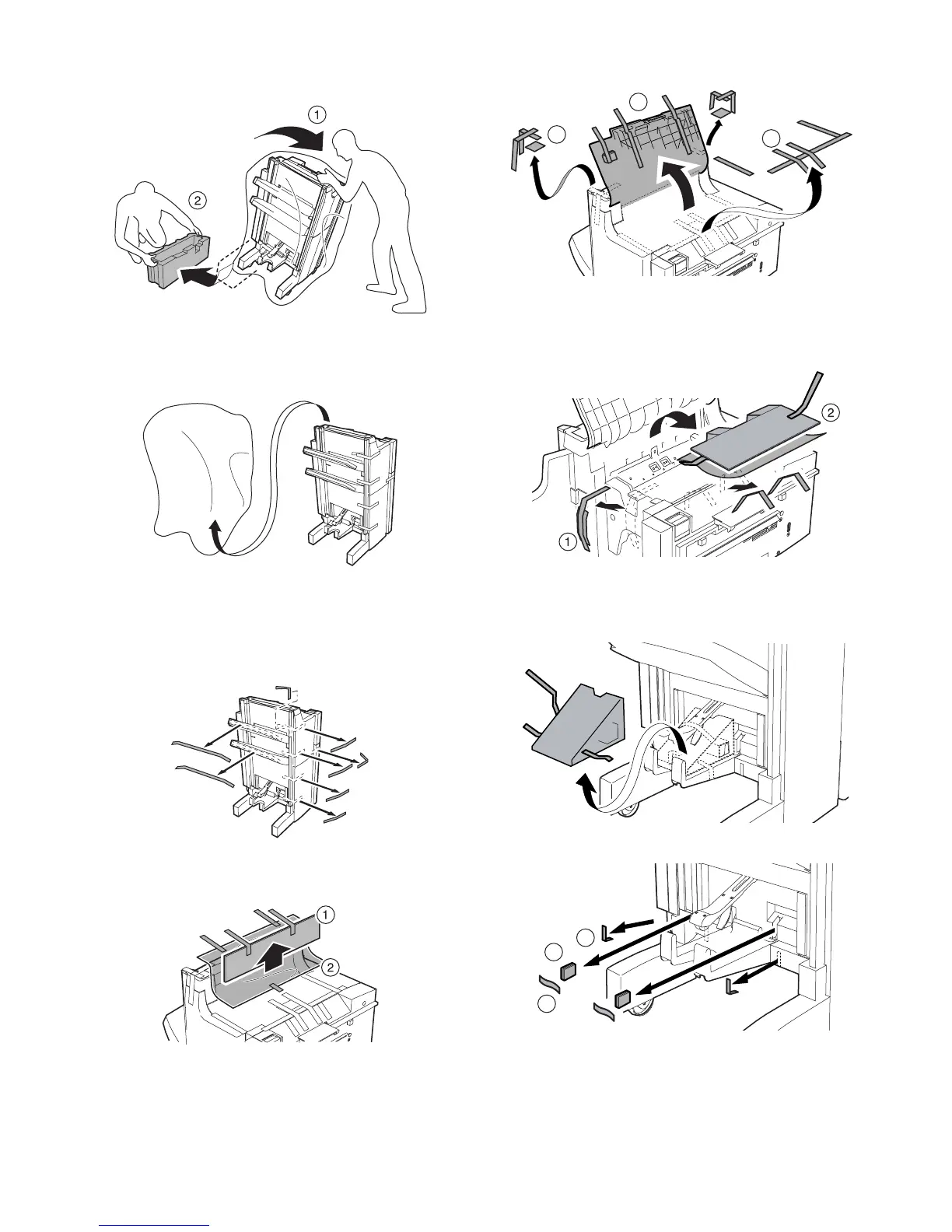

8) Tilt the machine to the opposite side a little, and remove pack-
ing material on the opposite side.
9) Slowly bring the base section of the machine on the opposite
side to contact with the floor.
10) Remove the vinyl cover.
B. Removal of the fixing member
Remove the tape from the finisher.
Remove the shipment locking material with red the note.
1) Remove the tape.
2) Remove the tape and remove the protection board and the
sheet.
3) Remove the tape and open the upper cover.
4) Remove the tape and remove the transit fixing member and
the sheet.
5) Remove the tape and remove the lower tray transit fixing
member.
To Next Page
