MX-M753N MX-LCX3N 3 – 11

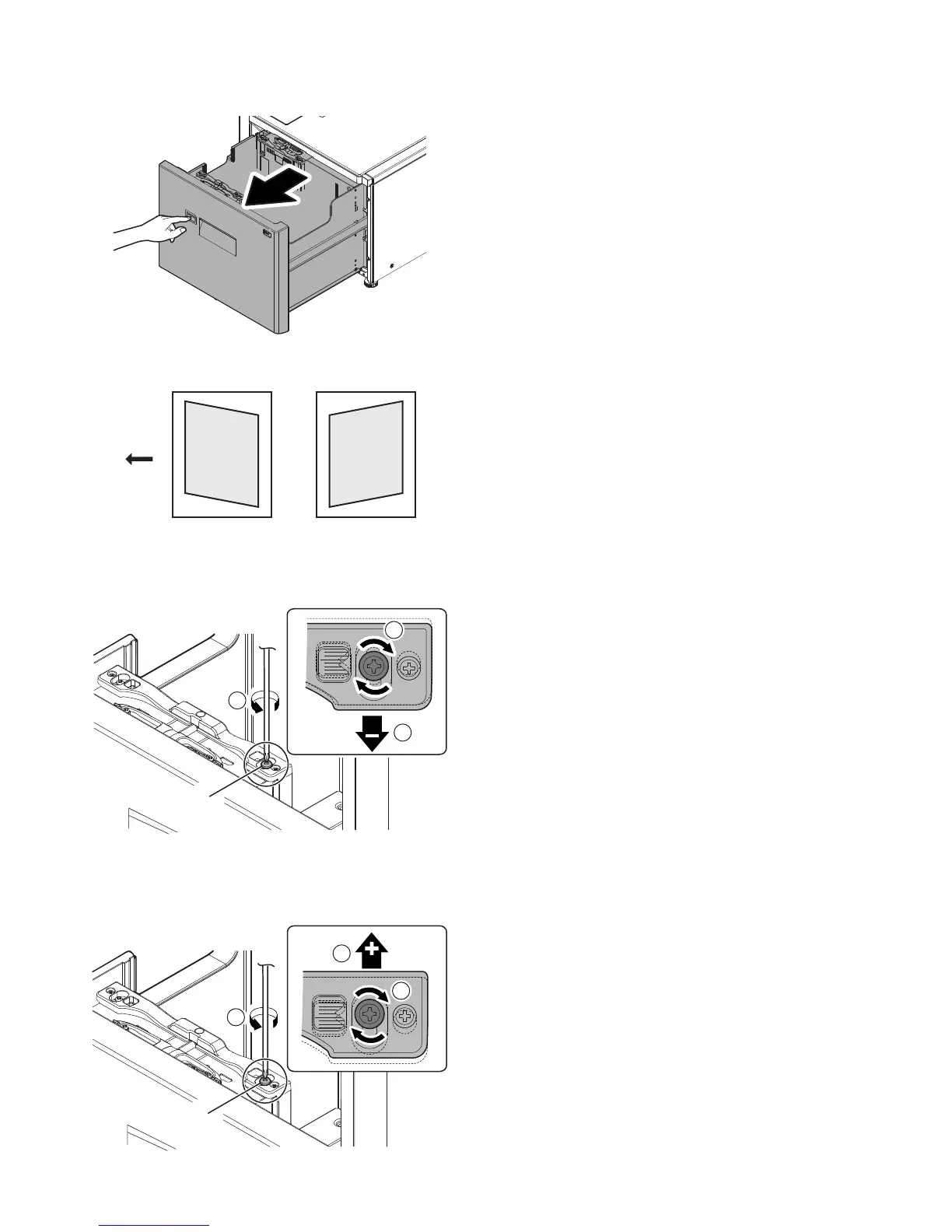

b. Diagonal feed adjustment
1) Press the lock button on the front cabinet and lower the paper
feed base tray to the paper supply position. Pull out the tray.
2) Adjust the diagonal feed.
[In the case of diagonal feed 1]
Loosen the blue screw (A) on the front regulation plate.
Referring to the degree of diagonal feed, move the regulation
plate in the direction of (–) and fix the blue screw.
[In the case of diagonal feed 2]
Loosen the blue screw (A) on the front regulation plate.
Referring to the degree of diagonal feed, move the regulation
plate in the direction of (+) and fix the blue screw.
3) Set a sheet of paper on the paper feed base tray and adjust
the regulation plate width. (Refer to "a. Regulation plate width
adjustment.")
* After completion of the adjustment, check that the front regu-
lation plate and the rear regulation plate are in parallel to
each other.
