MX-M753N AR-SU1 12 – 2

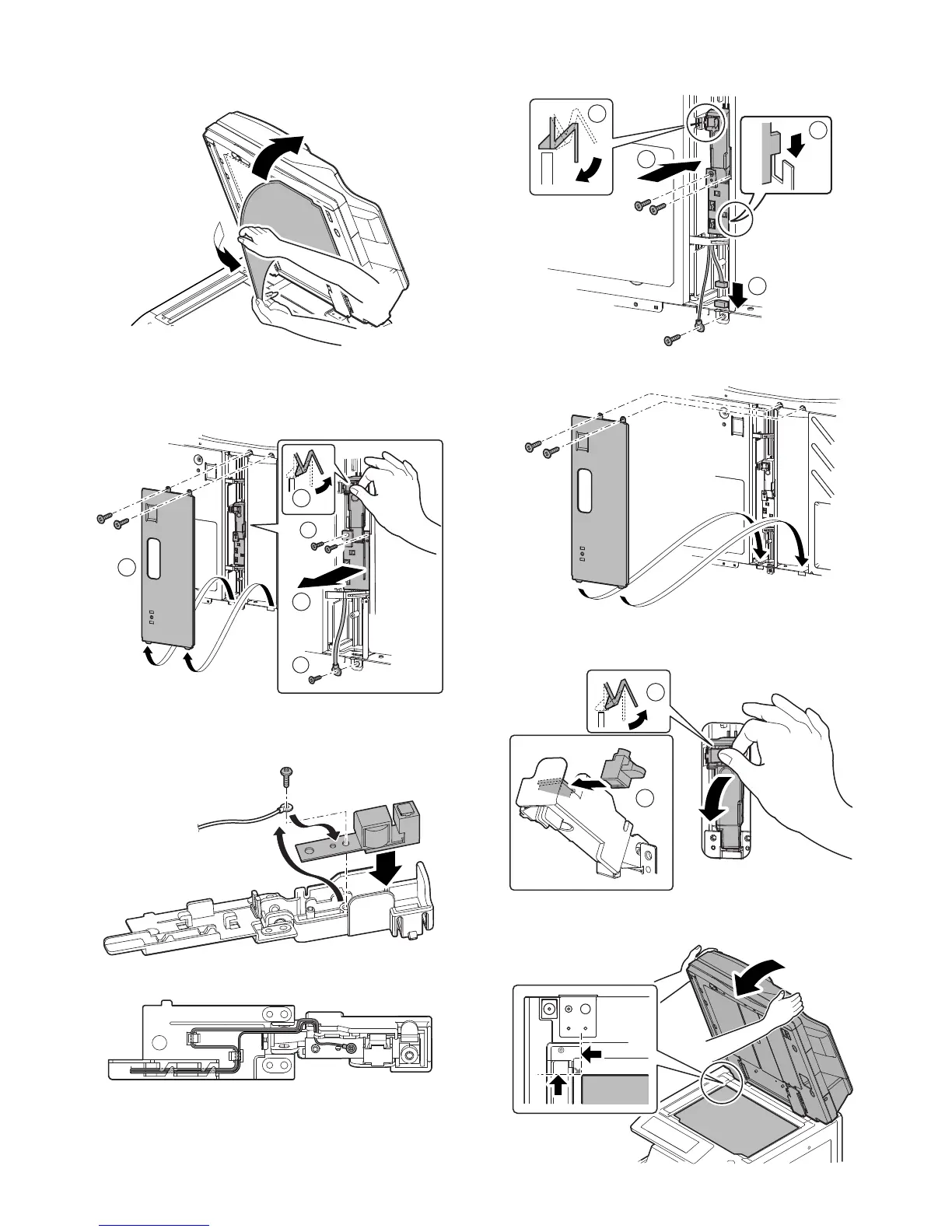

B. Install the stamp unit
1) Open the DSPF unit, remove the OC mat.
2) Remove the screw, and remove the paper exit PG cover.
Remove the screw.
Disengage the pawl, and remove the stamp case unit.
3) Attach the stamp unit (package part No. 1) to the stamp case
which was removed from the DSPF unit with the screw (pack-
age part No. 4). (Fix it together with the earth wire.)
* Arrange the harness of the stamp unit as shown below.
4) Install the stamp case unit, and fasten it with the screw. Install
the earth wire. Connect the connector.
5) Install the paper exit PG cover.
6) Disengage the pawl, and open the stamp case unit.
Install the stamp cartridge (package part No. 3).
7) Install the OC mat to the SPF glass, and close the DSPF unit.
