Sharp SF-2314 Service Manual

NO
YES
NO
YES
NO
YES
NO
YES
NO
YES

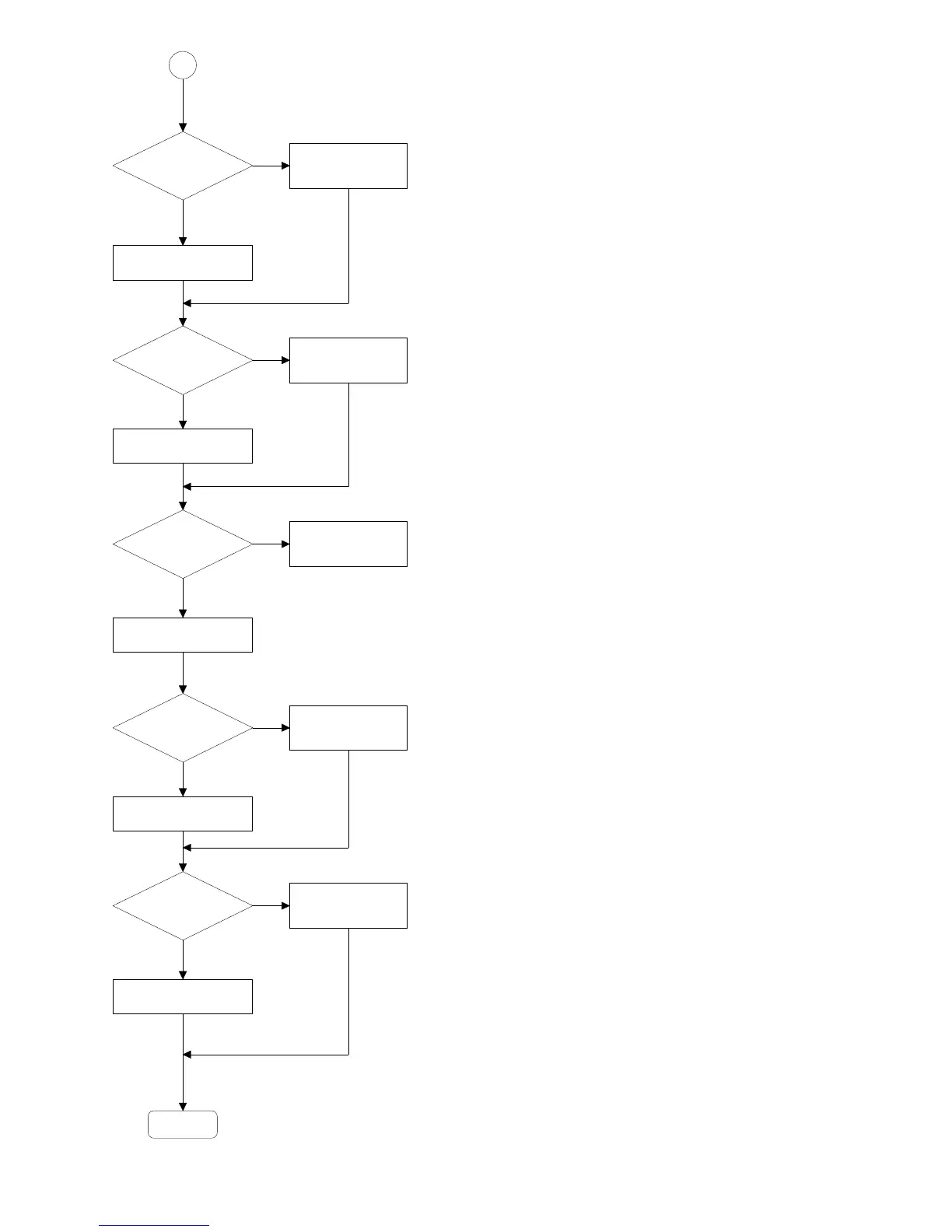

2'
Are the image
lead edge position
adjustment value and
the resist roller ON
timing adjustment value
recorded?
Use Sim 50-1 to set the image lead edge
position adjustment value and the resist
roller ON timing adjustment value
Make a copy and adjust the
image lead efge position and the
resist roller ON timing
Is the SPF mode
horizontal copy magnification
ratio adjustment
value recoded?
Use Sim 48-3 to set SPF mode
horizontal copy magnification ratio
adjustment value
Make a copy and adjust the SPF
mode horizontal copy
magnification ratio
Is the adjustment
value of contact pressure
between the SPF resist roller
and the document
recorde d?
Use Sim 51-2 to set the adjuatment
value of contact pressure between the
SPF resist roller and the document
Is the SPF
resist roller ON timing
adjustment value
recorded?
Use Sim 50-1 to set the SPF resist
roller ON timing adjustment value
Is the void
amount adjustmant
value recorded?
Use Sim 45-1 to set the void amount
adjustment value
End
Make a copy and adjust the
contact pressure between the
SPF resist roller and the
document
Make a copy and adjust the
SPF resist roller ON timing
Make a copy and adjust the
void amount
10 – 3
