Sharp UX-40 Service Manual

UX-40DE
FO-50DE
11 Feed roller 1
12 Connector 1
13 CIS support, left 1
14 CIS support, right 1
15 CIS unit 1
16 CIS protect sheet 1
17 CIS spring 2
18 Connector 1
19 Front sensor 1
20 Scanner frame 1

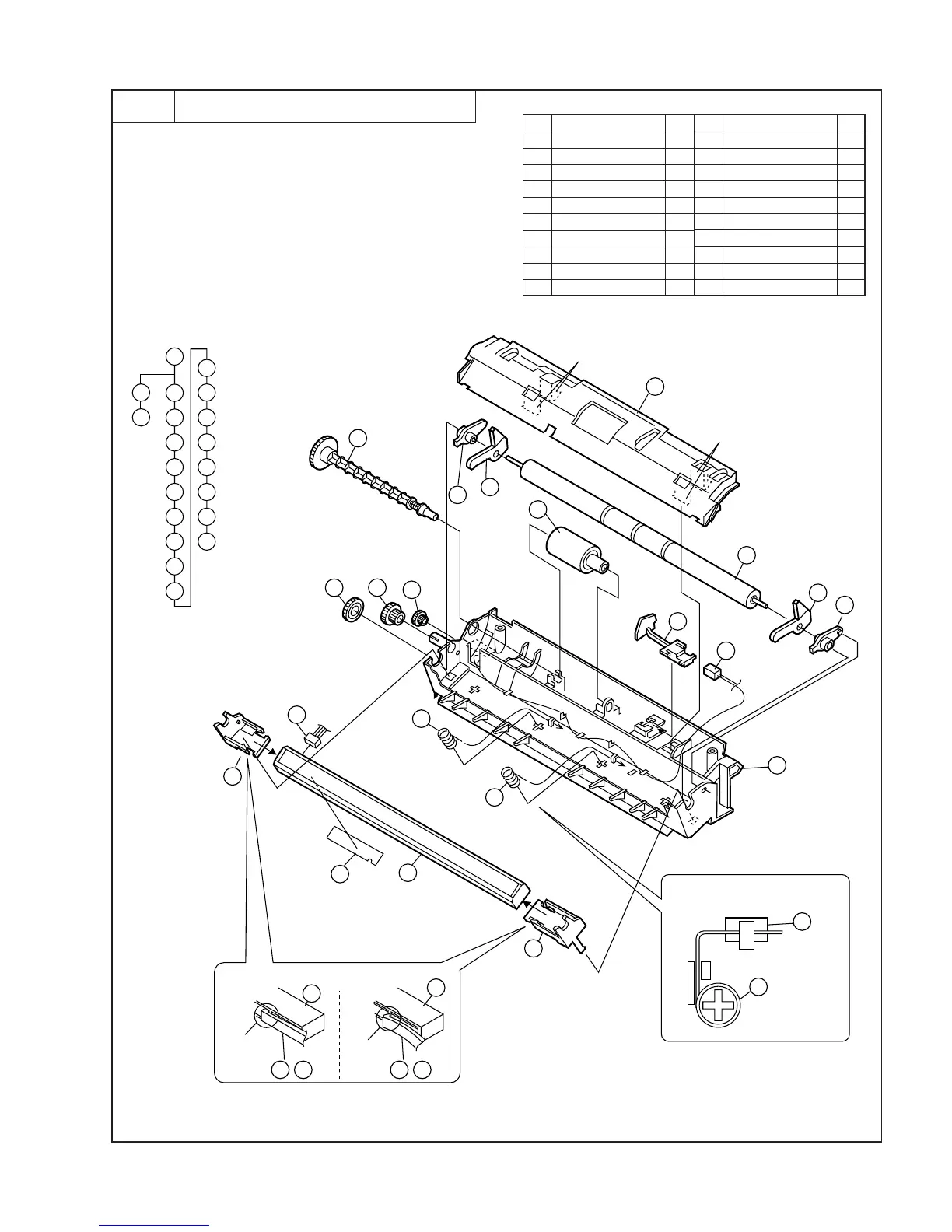

Fig. 2
Parts list (Fig. 2)
No. Part name Q’ty No. Part name Q’ty
1 Document guide lower 1
2 Back roller gear 1
3 Back roller bearing, left 1
4 CIS release lever, left 1
5 Back roller 1
6 CIS release lever, right 1
7 Back roller bearing, right 1
8 Reduction gear, 17/28z 1
9 Reduction gear, 17/23z 1
10 Feed roller shaft 1
3 – 4
CIS unit and scanner frame
2
2
3
4
5
1
7
8
9
6
12
13
13
14
14
13
14
15
15
17
15
11
17
17
18
19
10
20
16
Hook
Hook
2
3
4
5
1
7
8
9
6
12
13
11
15
10
14
17
16
20
19
18
OK
NG
Fix position
Fix position of CSI spring
,,
20
