Sharp UX-40 - Page 34

UX-40DE
FO-50DE
Fig. 3
3 – 5
9 Operation panel unit/ 1
document guide upper unit
10 Screw 1
11 Pinion gear 1
12 Hopper spring 1
13 Hopper guide, left 1
14 Hopper guide, right 1
15 Hopper guide 1

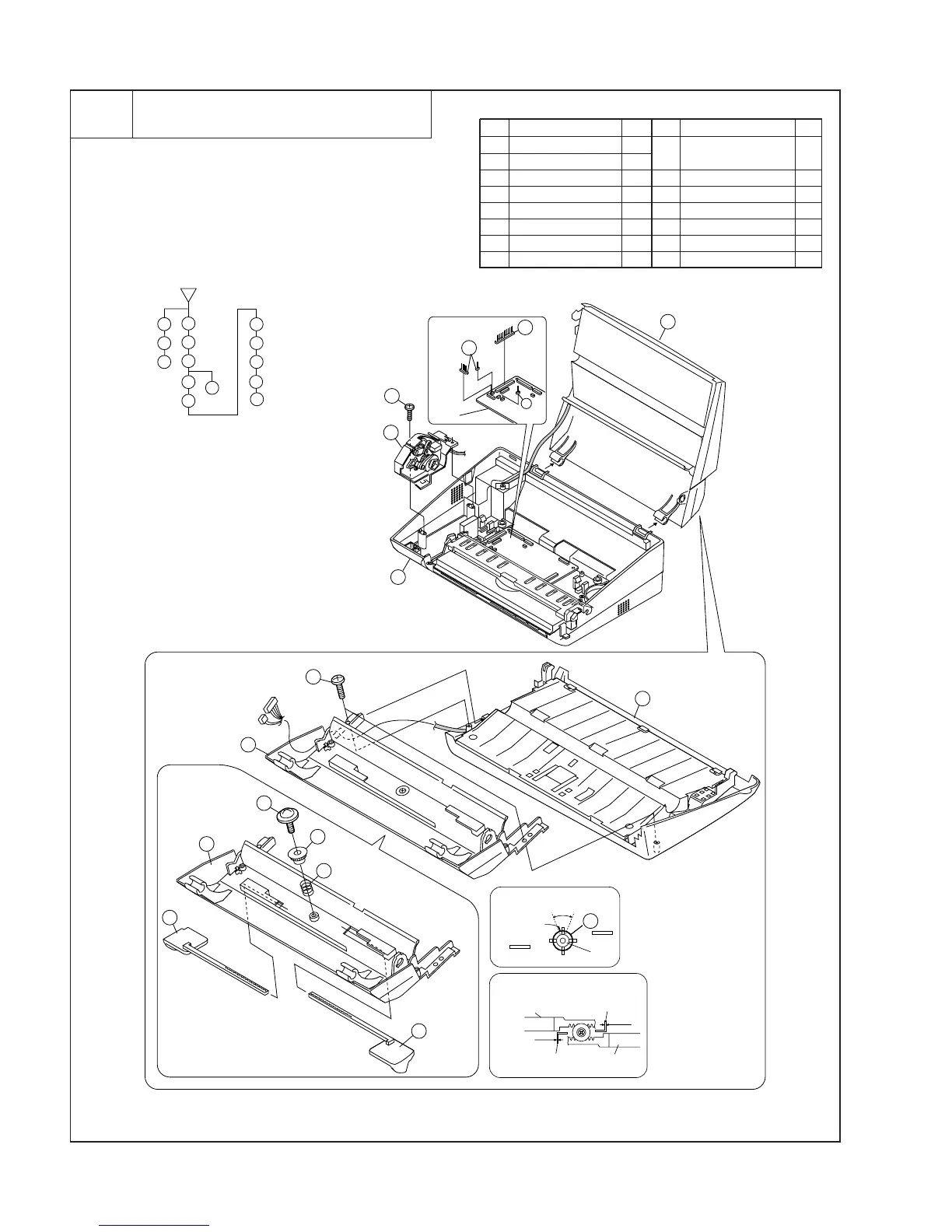

Parts list (Fig. 3)
No. Part name Q’ty No. Part name Q’ty
1 Mechanism unit 1
2 Connector 2
3 Operation panel unit 1
4 Connector 2
5 Screw (3×12) 1
6 Drive unit 1
7 Screw (3×8) 2
8 Hopper guide unit 1
Operation panel unit, drive unit, hopper
guide
3
7
8
11
12
13
14
10
9
15
12
3
1
6
5
Control
PWB
2
2
4
Control
PWB
2
3
7
8
1
11
12
13
10
15
14
4
5
6
9
R
L
GAP 0
GAP 0
HOPPER
GUIDE(L)
HOPPER
GUIDE(R)
30°
Fix position
boss
Rib
Rib
Confirm of HOPPER GUIDE position.
