Sharp UX-40 Service Manual

UX-40DE
FO-50DE
Fig. 7
3 – 9

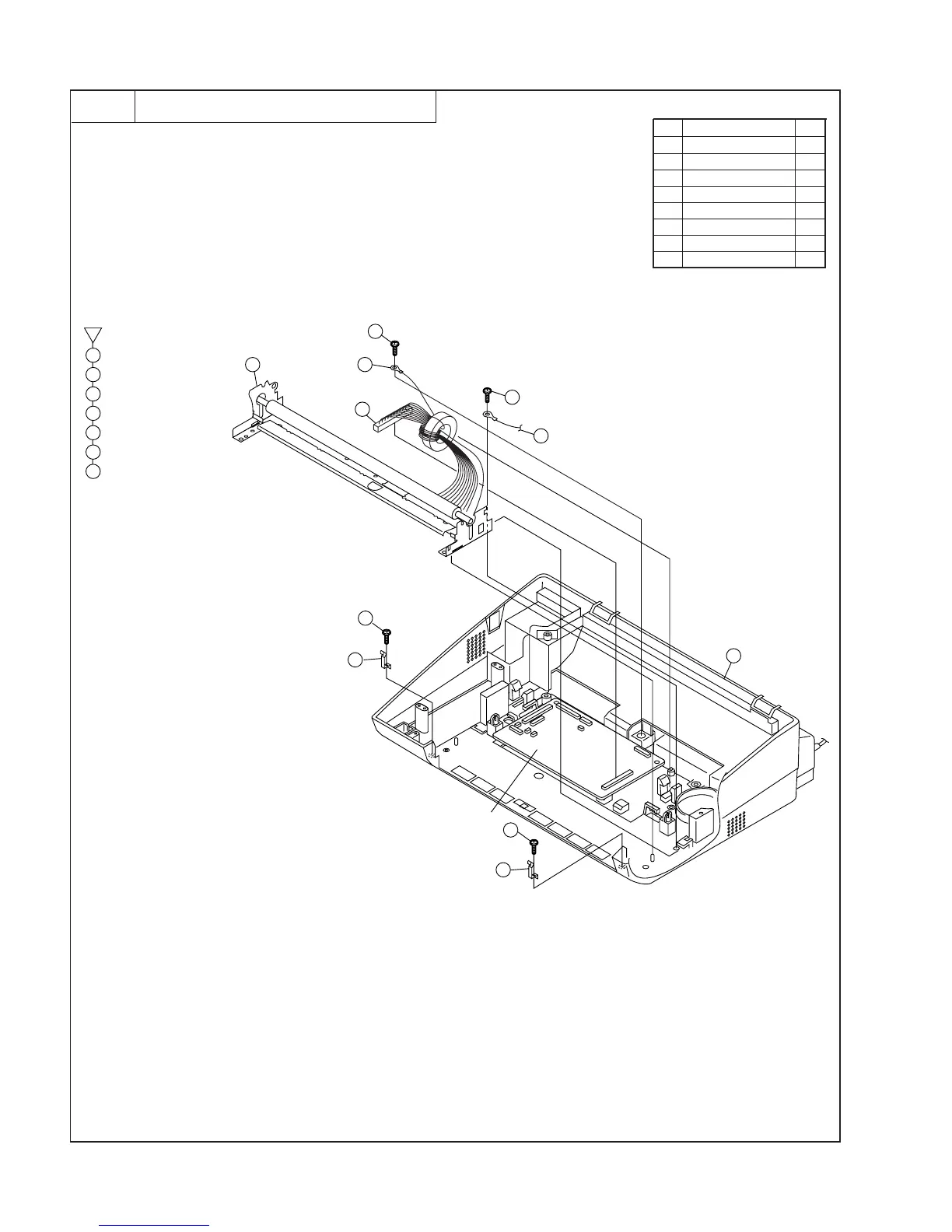

Parts list (Fig. 7)
No. Part name Q’ty
1 Mechanism unit 1
2 Screw (3×6) 1
3 Connector 1
4 Screw (3×8) 1
5 Head earth cable 1
6 Head frame unit 1
7 Screw (3×8) 2
8 Panel lock lever spring 2
Head frame unit
7
2
3
1
7
7
8
8
6
2
3
4
5
1
7
8
6
Control
PWB
4
5
5
