Sharp UX-40 Service Manual

UX-40DE
FO-50DE

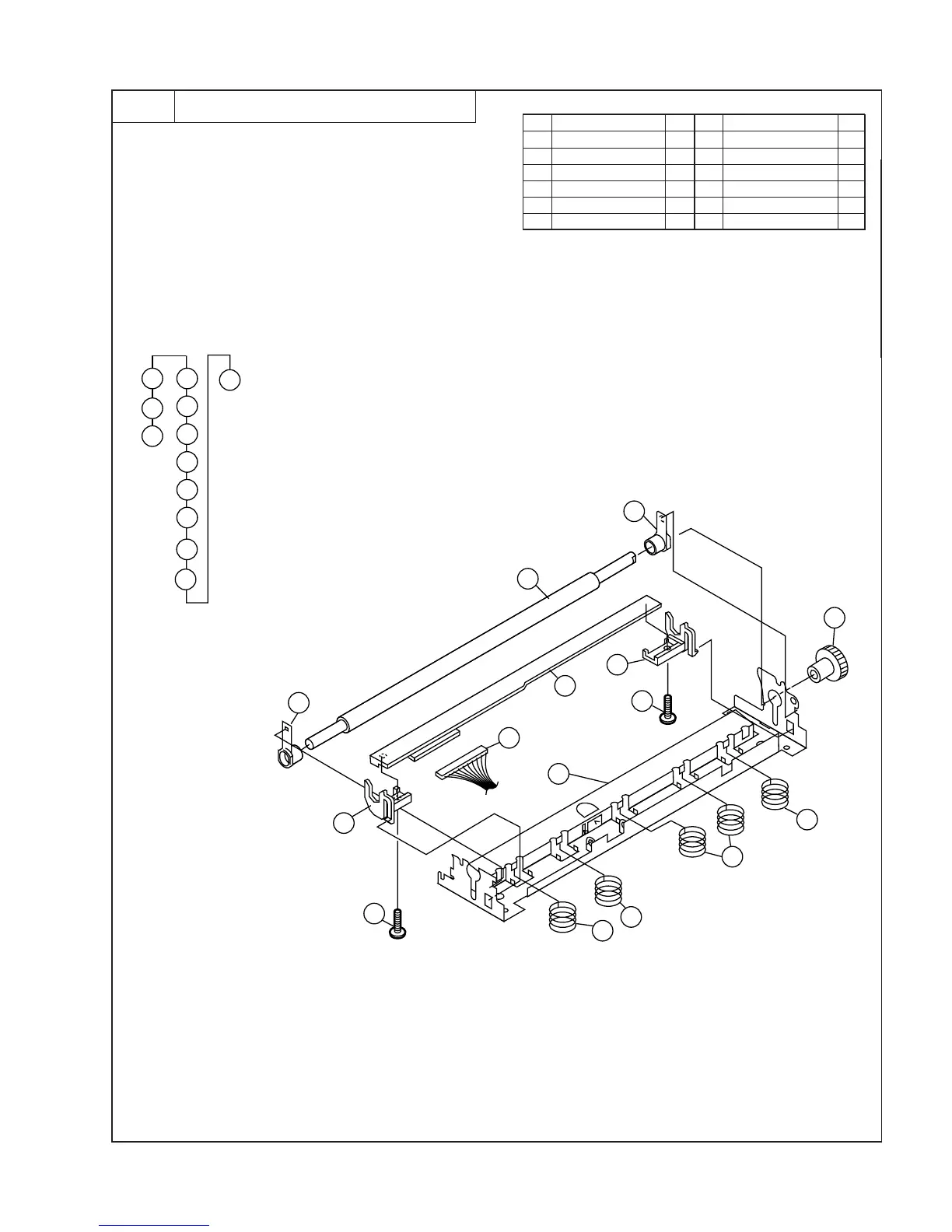

Fig. 8
3 – 10
Head frame and thermal head
8
Parts list (Fig. 8)
No. Part name Q’ty No. Part name Q’ty
1 Platen gear 1
2 Platen bearing 2
3 Platen roller 1
4 Connector 1
5 Screw (3×6) 1
6 Head holder, left 1
7 Screw (3×6) 1
8 Head holder, right 1
9 Thermal head 1
10 Head spring 2 2
11 Head spring 1 3
12 Head frame 1
12
10
10
11
11
11
9
12
2
2
2
1
1
3
3
4
4
5
7
5
8
6
9
7
6
10
8
