Sharp UX-B20 - Page 109

UX-B20U/UX-B20C/B25C
5
[2] Operation panel unit/Document guide upper
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION

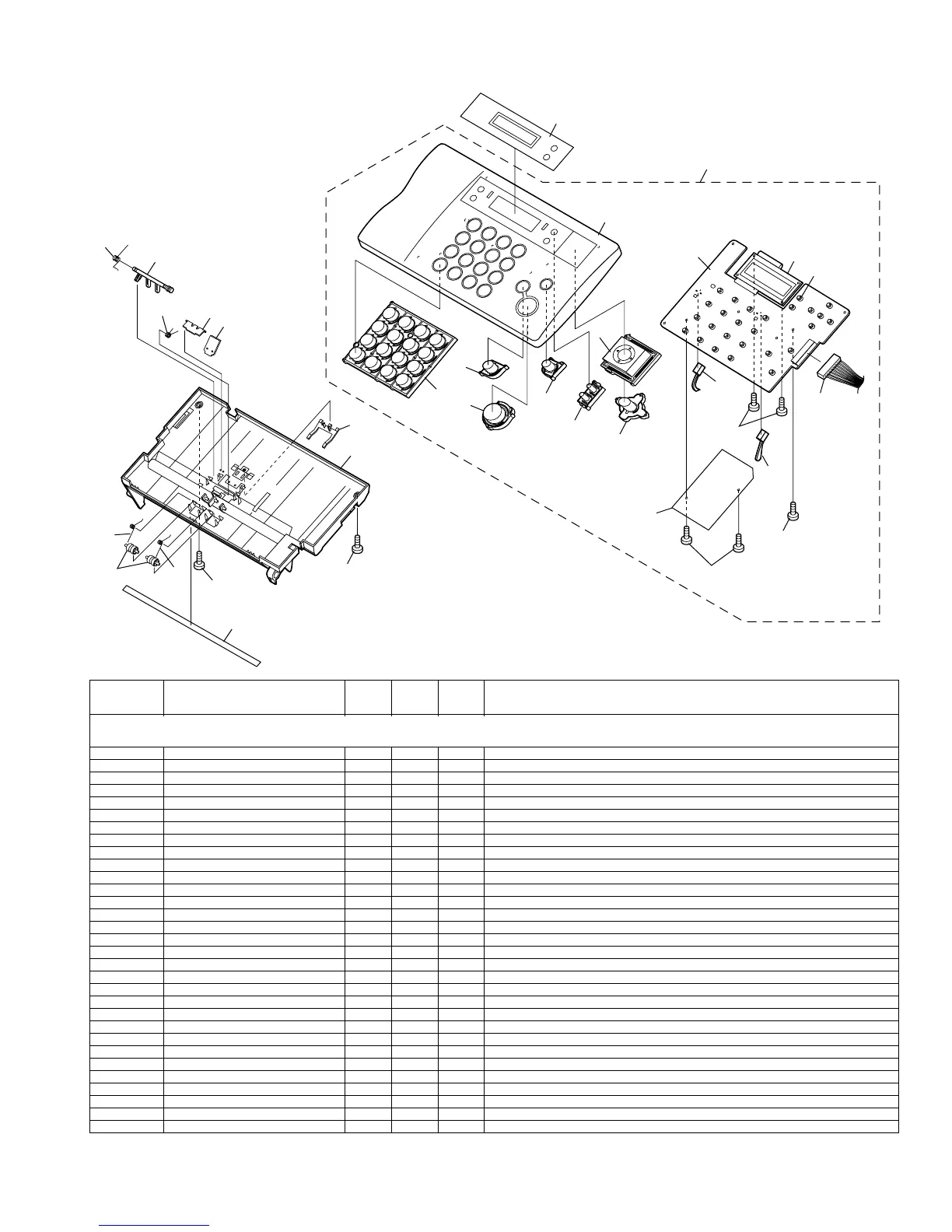

[2] Operation panel unit/Document guide upper
1 GCASP2187XHSA AW N D Panel case
2 JBTN-2463XHSA AL N C 12 key
3 JBTN-2464XHSA AG N C Start key
4 JBTN-2465XHSA AF N C Stop key
5 JBTN-2466XHSA AF N C Copy key
6 JBTN-2467XHSA AF N C Function key
7 JBTN-2468XHSA AL N C Cursol key
8 JBTN-2469XHSA AP N C Ink set key
9 DCEKP255DXH01 BF N E Operation panel PWB unit
10 QSW-K0005AWZZ AC C Tact switch [SW]
11 QSW-M2246AXZZ AH C FRSNS sensor [SW1]
12 QSW-M2294XHZZ AE C ORGSNS sensor [SW2]
13 RUNTZ2080XH02 BA B LCD unit
14 PSHEZ3830XHZZ AE N C Protection sheet
15 QCNWN498BXHZZ AR N C Panel cable
16 LPLTG3311XHZZ AF N C Separate rubber
17 LPLTP3312XHZZ AE N C Separate plate
18 LPLTP3313XHZZ AE N C Paper feed plate
19 LPLTP3314XHZZ AE N C Sub feed plate
20 MSPRC3455XHZZ AE N C Separate spring
21 MSPRC3456XHZZ AE N C Sub feed spring
22 MSPRD3495XHZZ AE N C PO pinch roller spring
23 NROLP2332XHZZ AD C PO pinch roller
24 PBRS-2066XHZZ AV N C Static brush
25 PGIDM2669XHZZ AS N C Document guide upper
26 HPNLH2444XHSA AL N D Decoration panel [20U/C]
26 HPNLH2444XHSF AL N D Decoration panel [25C]
B1 XEBS720P06000 AC C Screw(2x6)
B2 XEBS730P10000 AC C Screw(3x10)
(Unit)
901 DCEKP254DXH01 BL N E Operation panel unit
