Sharp UX-B20 Service Manual

UX-B20U/UX-B20C/B25C
8 – 1
FAXUX-B20U/UX-B20C/B25CService ManualService ManualMarketE
CHAPTER 8. OTHER

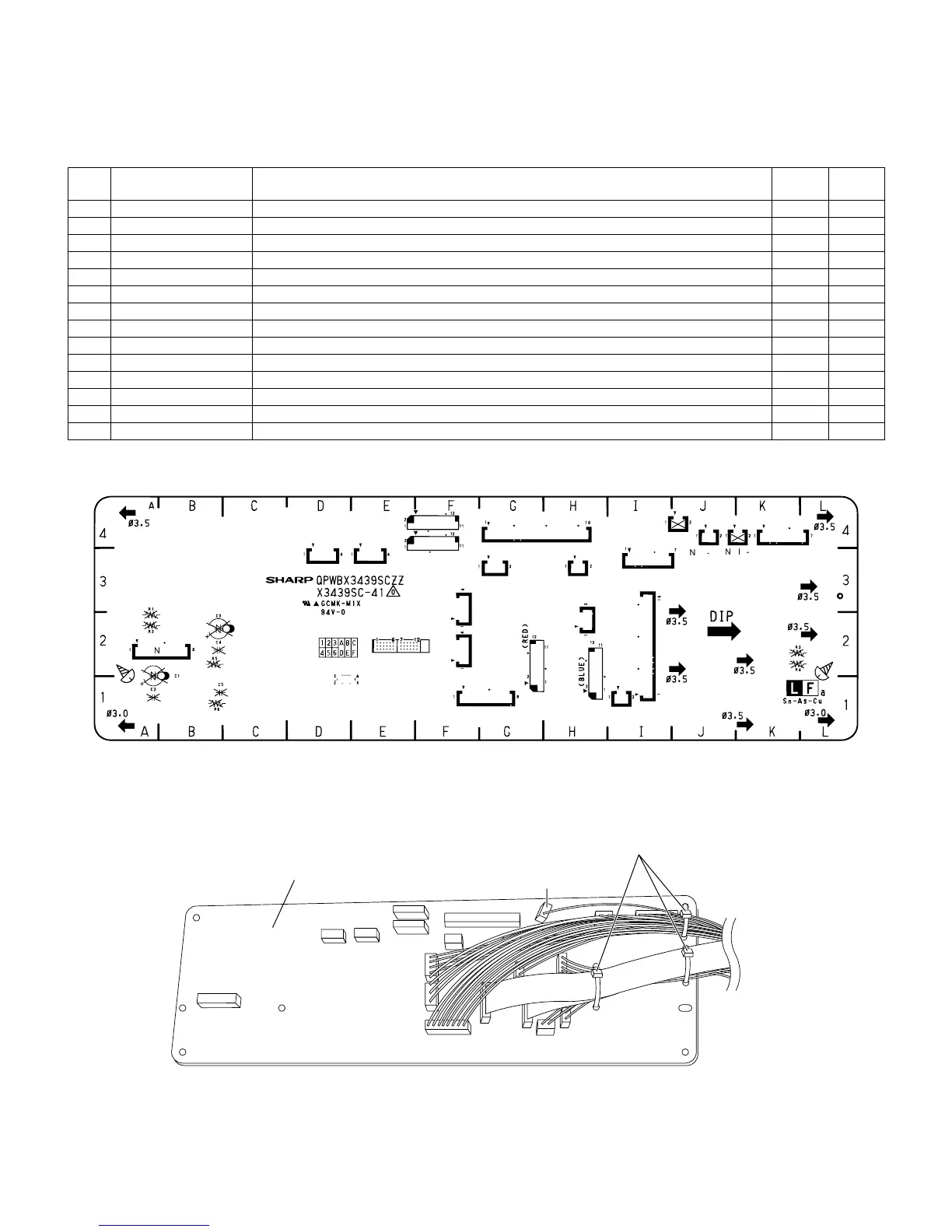

[1] Service tools
1. List
1.1. Extension board unit
1.2. Position of band
NO. PARTS CODE DESCRIPTION QTY
PRICE
RANK
1 CPWBX3439SC01 Extension board unit 1CE
2 PSHEZ3579SCZZ Shading wave memory standard paper 1 AD
3 LBNDJ2006XHZZ Band(100mm) 3AA
4 QCNWG223CSCZZ CIS EXTENSION CABLE (7PIN) [CNCIS/CNCIS-2] 1 AY
5 QCNWG224CSCZZ PANEL EXTENSION CABLE (16PIN) [CNPN/CNPN-2] 1 BB
6 QCNWG225CSCZZ SPEAKER EXTENSION CABLE (2PIN) [CNSP/CNSP-2] 1 AR
7 QCNWG232CSCZZ BLK EXTENSION CABLE (3PIN) [CNBLK/CNBLK-2] 1 AS
8 QCNWG233CSCZZ MIC EXTENSION CABLE (3PIN) [CNMIC/CNMIC-2] (NOT USED) 1 AQ
9 QCNWG226CSCZZ POWER SUPPLY EXTENSION CABLE (8PIN) [CNPW/CNPW-2] 1 AY
10 QCNWG227CSCZZ FEED MOTOR EXTENSION CABLE (4PIN) [CNFDMT/CNFDMT-2] 1 AU
11 QCNWG228CSCZZ CARRIER MOTOR EXTENSION CABLE (4PIN) [CNCRMT/CNCRMT-2] 1 AU
12 QCNWG229CSCZZ INK 1 EXTENSION CABLE (12PIN) [CNHEAD1/CNHEAD1-2] 1 AY
13 QCNWG230CSCZZ INK 2 EXTENSION CABLE (12PIN) [CNHEAD2/CNHEAD2-2] 1 AY
14 QCNWG231CSCZZ PIN EXTENSION CABLE (2PIN) [CNPIN] 1 AX
C
N
P
W
CNCRMT
CNFDMT
PI1
CNFDMT-2
CNCRMT-2
CNPW2
CNHEAD2
CNHEAD1
CNBLK
CNHAED1-2
CNHAED2-2
CNBLK-2
CNPIN
CNSP
CNPN-2
CNCIS
CNPN
CNMIC
C
N
S
P
-
2
C
N
M
I
C
-
2
CNCIS-2
Band(100mm)
Extension board unit
CNMIC(Not used)
