UX-B20U/UX-B20C/B25C
6 – 20

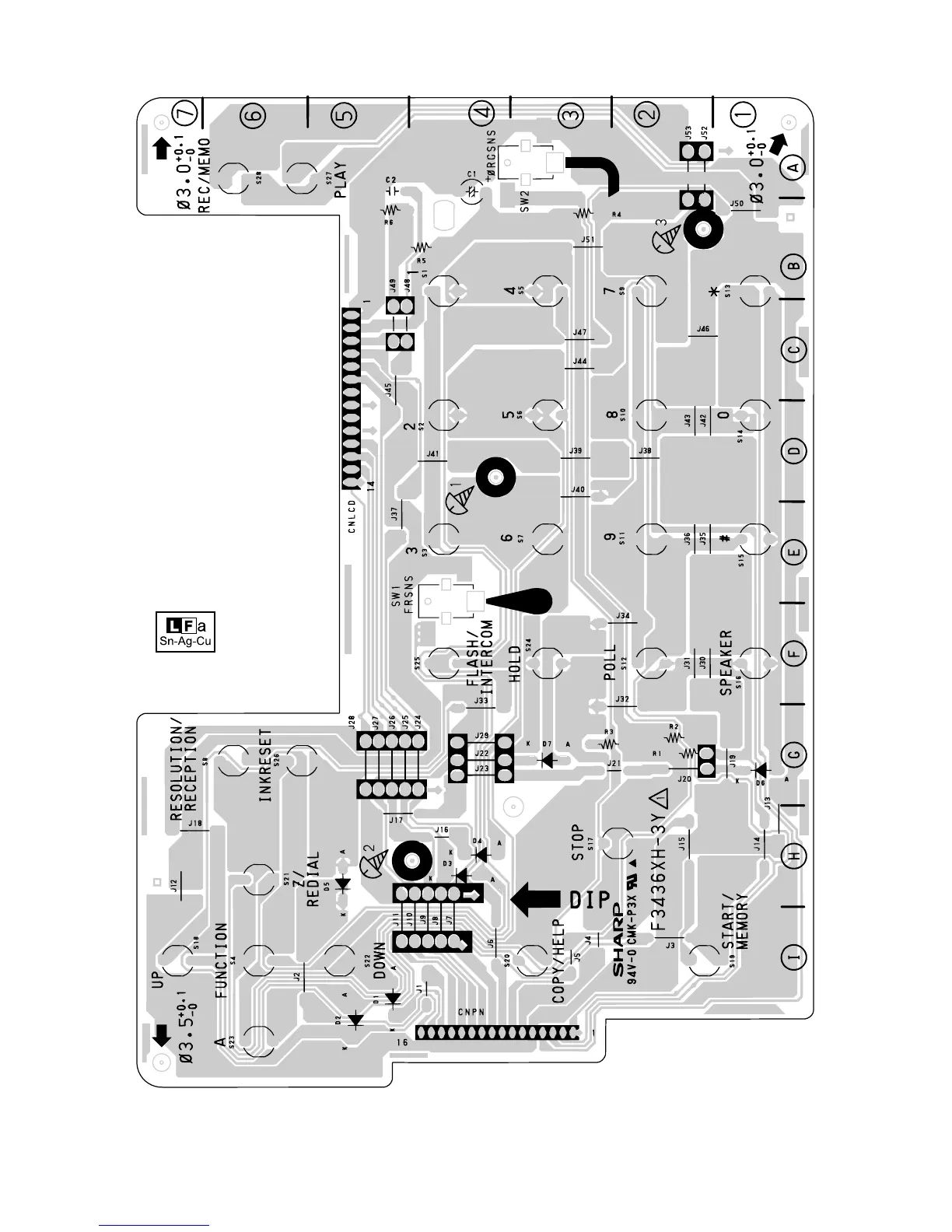

3. Operation Panel PWB parts layout (Bottom side)
The OPERATION PANEL PWB
of the model employs lead-free
solder.
Note: Since the parts of PWB cannot be supplied, change it as a unit.
