Sharp UX-P200 Service Manual

UX-P100U
UX-P200U
8 – 1
CHAPTER 8. OTHERS
[1] Service tools
1. List
Extension board unit
NO. PARTS CODE DESCRIPTION Q’TY
PRICE
RANK
1 CPWBF3201SCS1 Extension board unit (TEL/LIU PWB) 1BA
2 PSHEZ3579SCZZ Shading wave memory standard paper 1AD
1 QCNWG203BSCZZ SPEAKER RELAY CABLE 1AG
2 QCNWG206BSCZZ PANEL RELAY CABLE 1AT
3 QCNWG202BSCZZ CIS RELAY CABLE 1AN
4 QCNWG205BSCZZ HEAD RELAY CABLE 1AS
5 QCNWG204BSCZZ CAM SWITCH RELAY CABLE 1AG
6 QCNWG242BSCZZ MOTOR RELAY CABLE 1AM
7 QCNWG201BSCZZ SENSOR RELAY CABLE 1BB
8 VRS-RE3AA122J RESISTOR
(
1W 1.2KΩ ±5%
)[
R30
]
1AC
9 VHPSG206S//-1 PHOTO TRANSISTOR
[
PH1
]
1AG
10 VHPSG206S//-1 PHOTO TRANSISTOR
[
PH2
]
1AG
NO. PARTS CODE DESCRIPTION Q’TY
PRICE
RANK

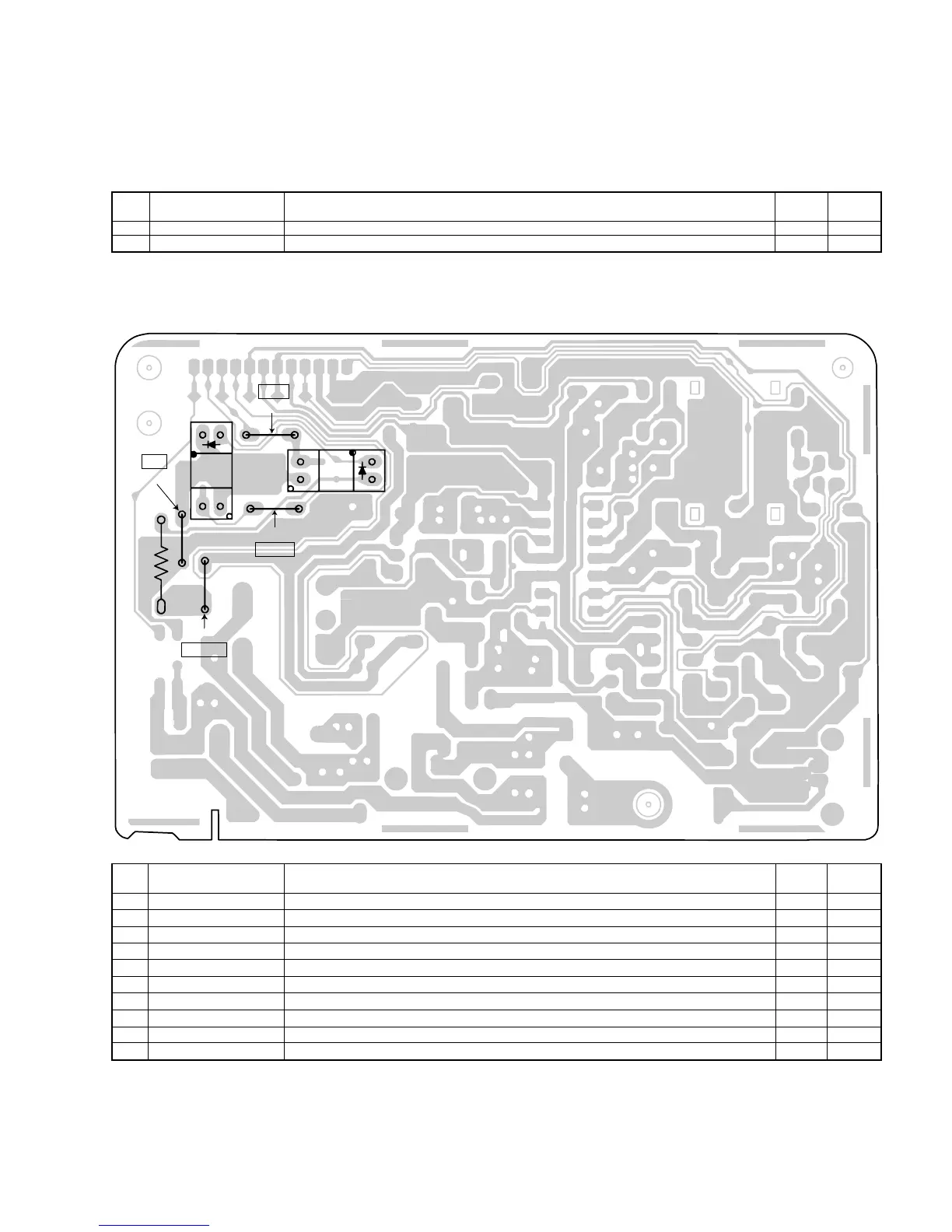

TEL/LIU PWB
PH2
PH1
R30
TP3
DG
(ORANGE)
TP4
+24VL
(YELLOW)
CE
K
A
TP1
PIN
(BROWN)
TP2
FILM
(RED)
K
A
C
E
