UX-P100U
UX-P200U
– 5 –

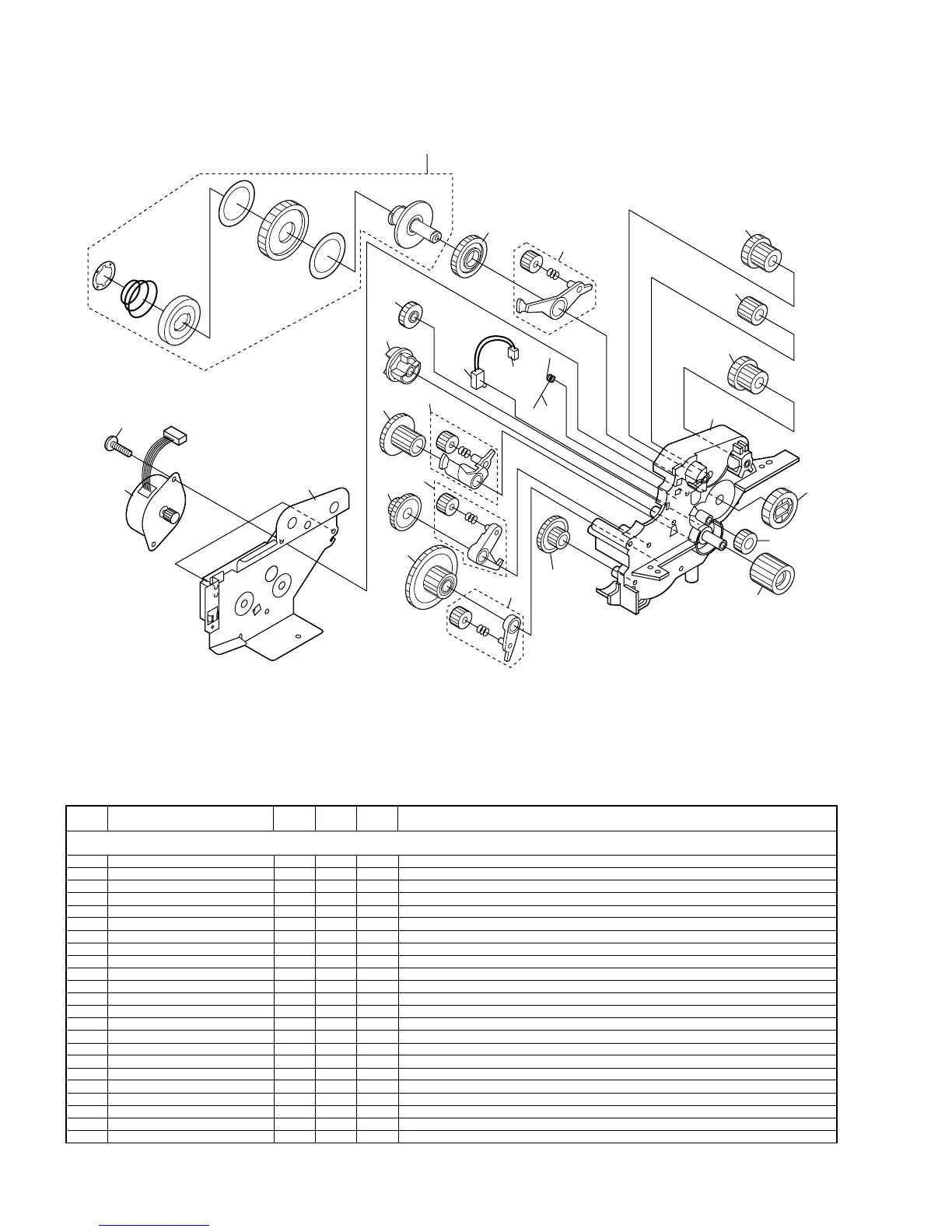

[4] Drive unit
NO.
PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
[4] Drive unit
1 CGERH2314XH04 AR N C Slip gear ass’y
2 CLEVP2359XH01 AD N C Planet gear lever ass’y A
3 CLEVP2360XH01 AD N C Planet gear lever ass’y B
4 CLEVP2361XH01 AD N C Planet gear lever ass’y C
5 CLEVP2362XH01 AD N C Planet gear lever ass’y D
6 LFRM-2226XHZZ AQ N C Drive unit frame
7 LPLTM3190XHZZ AG N C Motor plate
8 MCAMP2028XHZZ AE N C Cam
9 MSPRD3298XHZZ AE N C Cam hold spring
10 NGERH2380XHZZ AC C Reduction gear,17/36Z
11 NGERH2409XHZZ AB N C Idler gear,23Z
12 NGERH2571XHZZ AD N C Slip gear
13 NGERH2572XHZZ AD N C Reduction gear,25/63Z
14 NGERH2573XHZZ AD N C Reduction gear,20/40Z
15 NGERH2574XHZZ AD N C Reduction gear,15/30Z
16 NGERH2575XHZZ AD N C Idler gear,40Z
17 NGERH2576XHZZ AD N C Idler gear,21Z
18 NGERH2577XHZZ AD N C Idler gear,20Z
19 NGERH2582XHZZ AC N C Idler gear,15Z
20 QCNWN483AXHZZ AD N C Cam switch cable
21 QSW-F2224SCZZ AE C Cam switch
22 RMOTS2175XHZZ AX N B Motor
B1 XEBSD30P08000 AA C Screw(3x8)
22
21
20
7
14
3
10
2
13
5
11
8
9
4
16
10
17
19
12
6
15
18
15
1
B1
To Next Page
