Sharp UX-P200 - Upper Cabinet;Document Guide Upper

UX-P100U
UX-P200U
– 4 –

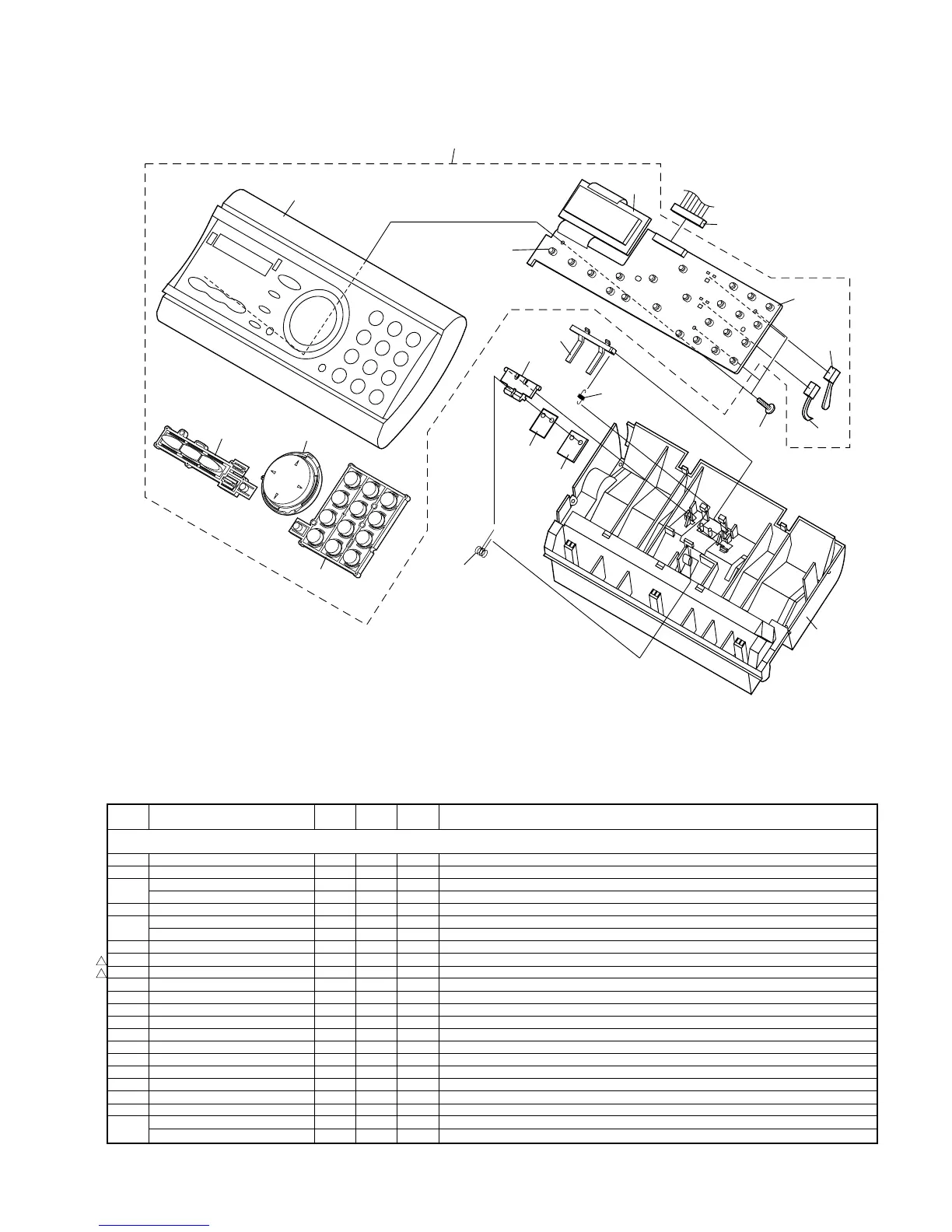

[3] Upper cabinet/Document guide upper
[3] Upper cabinet/Document guide upper
1 GCASP2145XHSA AM N D Panel case
2 JBTN-2339XHSA AF N C 12 key
3 JBTN-2340XHSA AD N C Start key [P100]
JBTN-2340XHSB AE N C Start key [P200]
4 JBTN-2341XHSA AD N C Function key
5 DCEKP336CXH01 BD N E Operation panel PWB unit [P100]
DCEKP336CXH02 BD N E Operation panel PWB unit [P200]
6 QSW-K0005AWZZ AC C Tact switch [SW]
!
7 QSW-M2246AXZZ AH C FRSNS sensor [SW1]
!
8 QSW-M2294XHZZ AE C ORGSNS sensor [SW2]
9 QCNWN487AXHZZ AL N C Panel cable
10 RUNTZ2080XH01 BA N E LCD unit
11 LPLTG2911XHZZ AE C Separate rubber
12 LPLTP3175XHZZ AD N C Separate plate
13 LPLTP3176XHZZ AD N C Feed plate
14 MSPRD3293XHZZ AB N C Separate spring
15 MSPRT3294XHZZ AB N C Feed spring
16 PGIDM2614XHSA AL N C Document guide upper
17 PSHEP3660XHZZ AE N C Separate rubber sheet
B1 XEBSD20P06000 AA C Screw(2x6)
(Unit)
901 DCEKP334CXH01 BF N E Operation panel unit [P100]
DCEKP334CXH02 BD N E Operation panel unit [P200]
