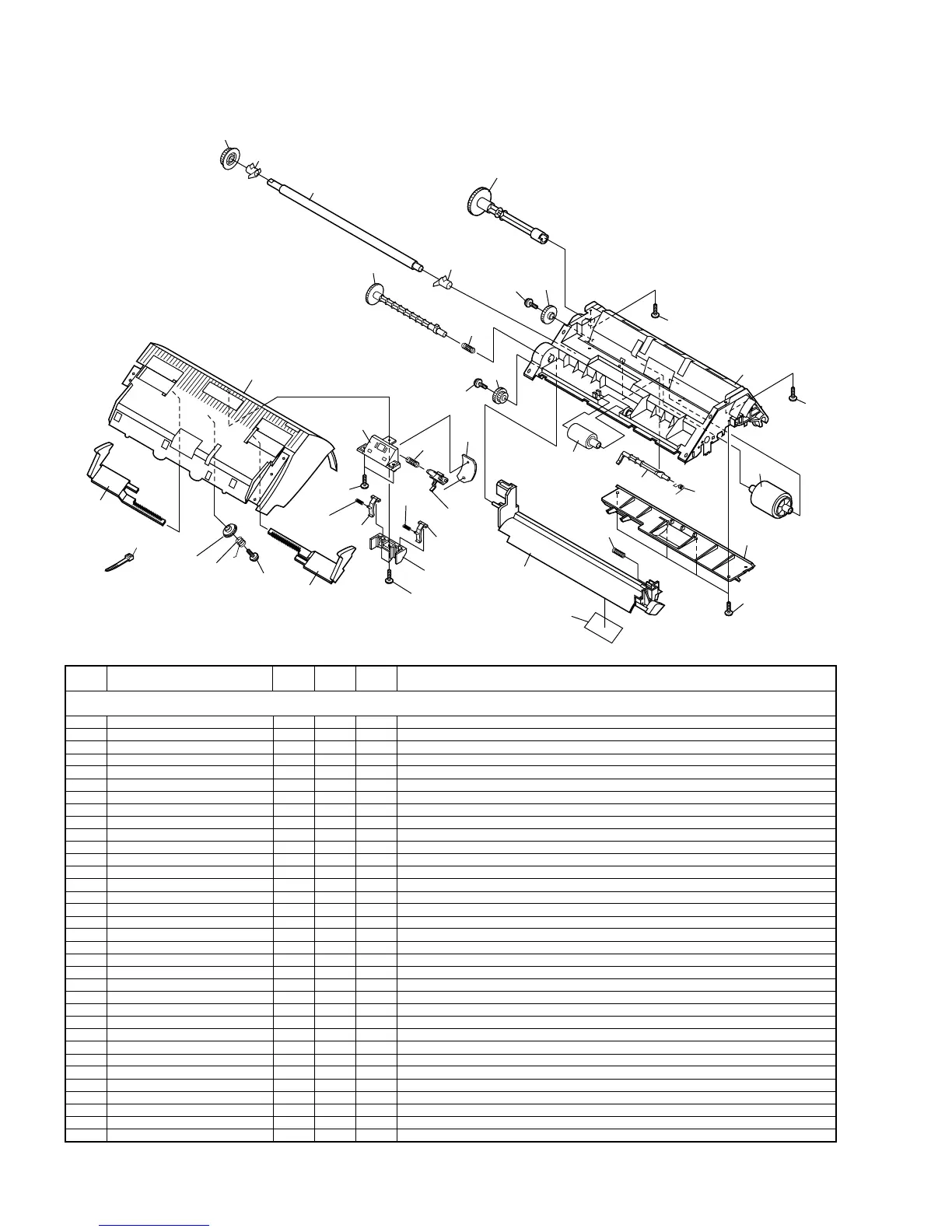

[2] Top cover/Sub frame
– 3 –
[2] Top cover/Sub frame
1 GCOVA2448XHSA AG N C Top cover
2 MSPRC3301XHZZ AB N C Hopper spring
3 NGERP2318XHZZ AD C Pinion gear
4 PGIDM2619XHSA AF N C Hopper guide,left
5 PGIDM2620XHSA AF N C Hopper guide,right
6 LFRM-2227XHZZ AQ N C Sub frame
7 LFRM-2232XHZZ AT N C Sub frame plate
8 MLEVP2363XHZZ AD N C P-IN sensor lever,upper
9 MSPRC3305XHZZ AB N C Release lever spring
10 MSPRD3302XHZZ AB N C P-IN sensor lever spring,upper
11 NGERH2580XHZZ AC N C Reduction gear,15/22Z
12 NGERH2581XHZZ AC N C Idler gear,25Z
13 NROLR2483XHZZ AL N C Paper feed roller
14 NROLR2484XHZZ AL N C PU roller
15 NSFTP2357XHZZ AG N C Paper feed roller shaft
16 NSFTP2358XHZZ AG N C PU roller shaft
17 PGIDM2621XHSA AF N C Release lever
18 LHLDZ2224XHZZ AL N C RP feed plate holder
19 LPLTG3181XHZZ AD N C RP separate rubber
20 LPLTP3179XHZZ AD N C RP separate base
21 LPLTP3180XHZZ AH N C RP separate plate
22 LPLTP3182XHZZ AH N C RP feed plate
23 MSPRC3299XHZZ AB N C RP separate spring
24 MSPRC3300XHZZ AB N C RP feed spring
25 LBSHP2141XHZZ AC N C Platen bearing,left
26 LBSHP2142XHZZ AC N C Platen bearing,right
27 NGERH2579XHZZ AD N C Platen gear
28 NROLR2485XHZZ AQ N C Platen roller
29 LBNDJ2006XHZZ AA C Band
30 MSPRC3335XHZZ AD N C Paper feed roller spring
31 TLABH319DXHZZ AD N D Imaging film set label
B1 LX-BZ2234XHZZ AD N C Screw
B2 XEBSD30P10000 AA C Screw(3x10)
B3 LX-BZ2222XHZZ AC C Screw
