Sharp XV-Z2000 Service Manual

25
XV-Z2000
DT-400

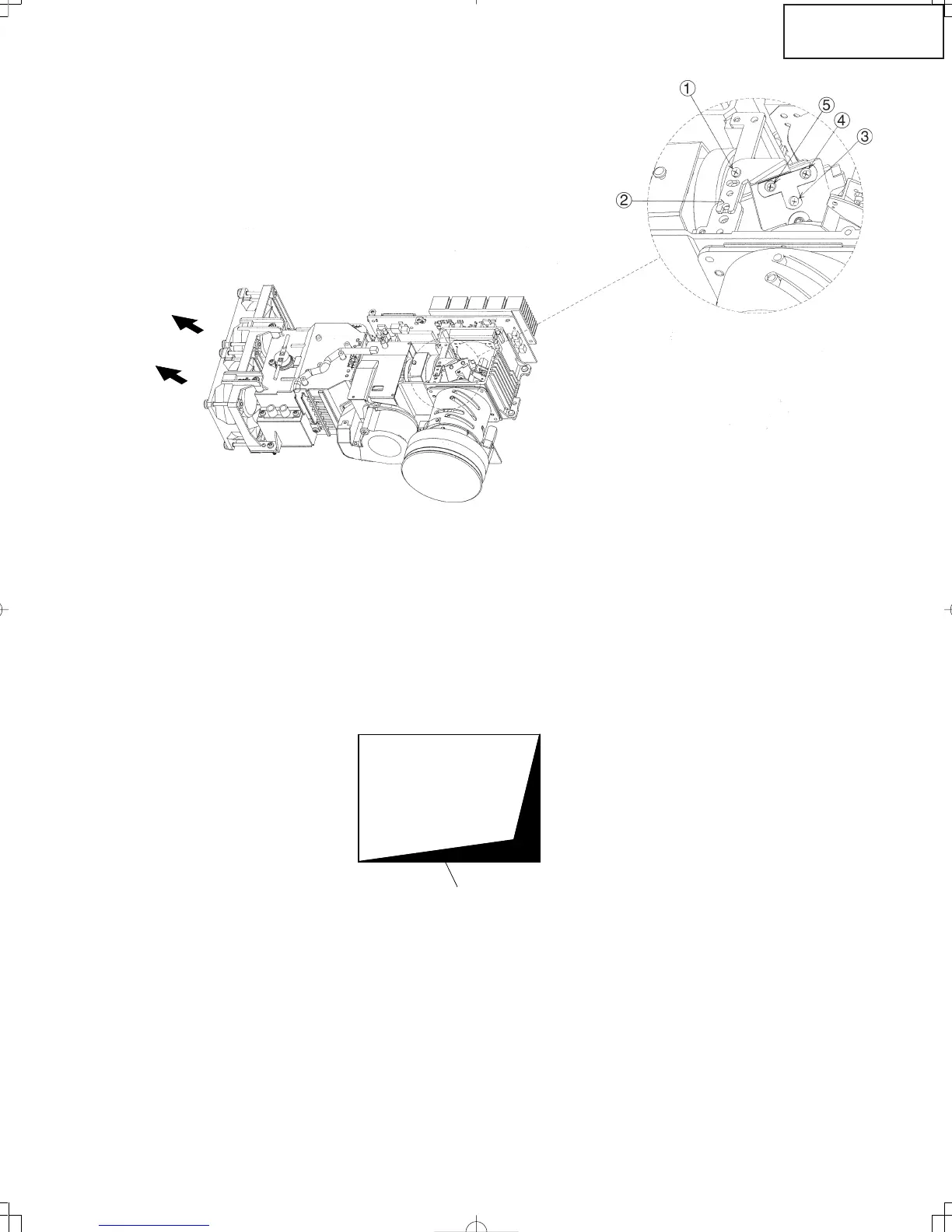

After replacing the DMD, if shading is present on the screen as shown in Figure 1, adjust the lighting area of the
DMD by turning the adjustment screws for the optical engine.
1. Loosen the fixing screw for the adjustment lever 1. Adjust the lighting area by adjustment lever 2 and
then tighten the fixing screw for the adjustment lever 1.
2. If the lightening area cannot be adjusted after the above procedure, loosen the fixing screw 3, adjust the
area with adjustment screws 4 and 5, and then tighten the fixing screw 3.
Fig. 1
Shading
Air Flow

Sharp XV-Z2000 Specifications

General

Projection distance	2.6 - 3.9 m
Contrast ratio (typical)	2500:1
Screen size compatibility	40 - 200 \
Projector native resolution	SXGA (1280x1024)
Lamp type	SHP
Lamp power	275 W
Light source type	Lamp
Service life of light source	3000 h
Video in	XGA, Mac 19” (in intelligent compression), SVGA/VGA, Mac 16”/13”
I/O ports	2x component, 1x RCA video, 1x S-video, DVI-I (analogue component, digital & analogue RGB) x 1
Dimensions (WxDxH)	310 x 287 x 104 mm
Power requirements	100-240V AC, 50/60Hz
Power consumption (typical)	360 W
Market positioning	Home cinema

Weight and Dimensions

Weight	4300 g
