Sharp XV-Z2000 Service Manual

92
XV-Z2000
DT-400

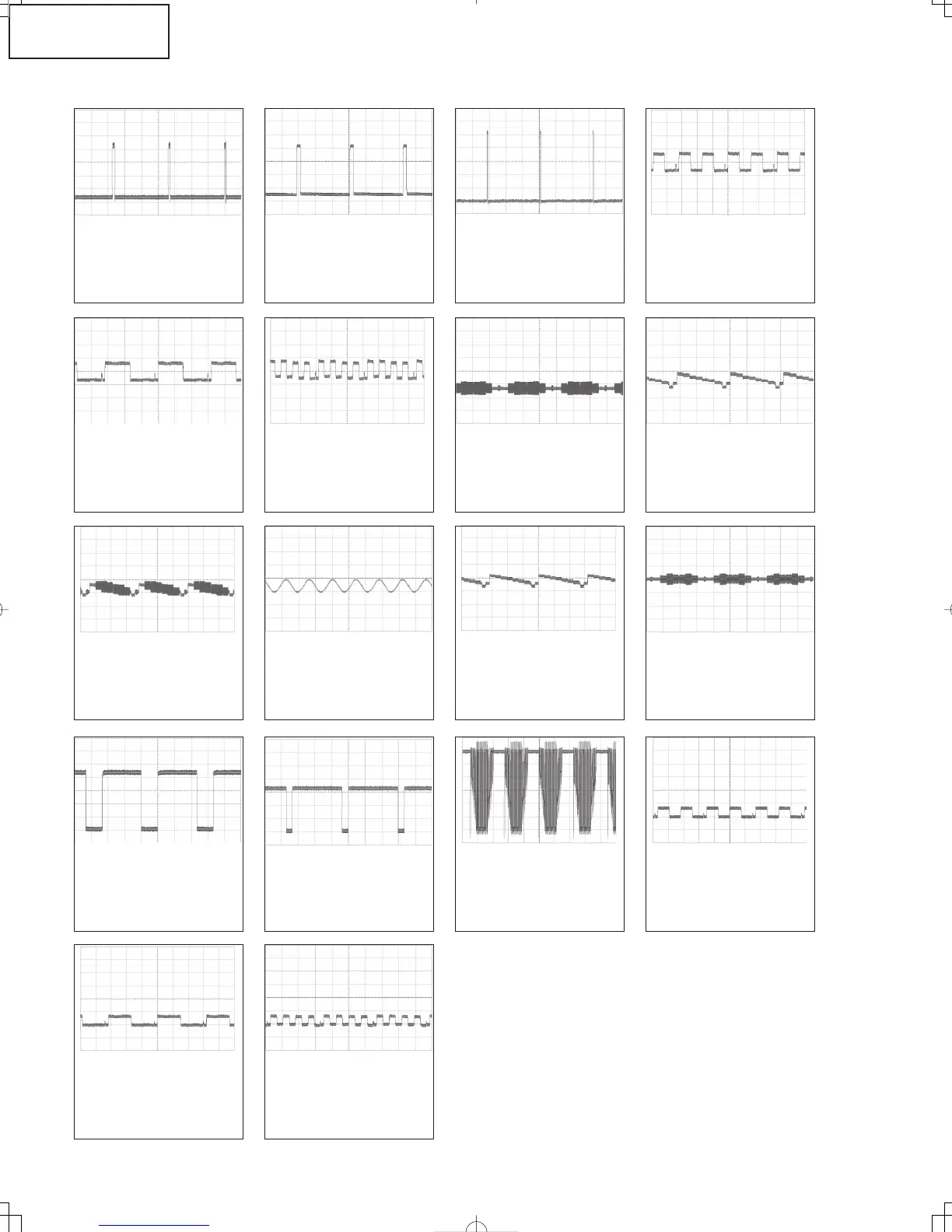

WAVEFORMS / WELLENFORMEN
1 IC3102 (28) pin
(VS-OUT)
H : 5m sec/div
V : 1V/div
2 IC3102 (29) pin
(HS-OUT)
H : 20µ sec/div
V : 1V/div
3 IC3102 (31) pin
(SCP-IN)
H : 20µ sec/div
V : 1V/div
4 IC3102 (35) pin
(3YO)
H : 20µ sec/div
V : 1V/div
5 IC3102 (37) pin
(2YO)
H : 20µ sec/div
V : 1V/div
6 IC3102 (39) pin
(1YO)
H : 20µ sec/div
V : 1V/div
7 IC3105 (43) pin
(C2-IN)
H : 20µ sec/div
V : 1V/div
8 IC3105 (44) pin
(CVBS/Y2-IN)
H : 20µ sec/div
V : 1V/div
9 IC3506 (7) pin
(YCIN)
H : 20µ sec/div
V : 1V/div
0 IC3506 (19) pin
(FSC)
H : 200n sec/div
V : 1V/div
q IC3506 (25) pin
(YOUT)
H : 20µ sec/div
V : 1V/div
w IC3506 (27) pin
(COUT)
H : 20µ sec/div
V : 1V/div
e Q2006 (Colector)
(LAMP_EN)
H : 1m sec/div
V : 1V/div
r P2004 (2) pin
(CWINDEX)
H : 2m sec/div
V : 1V/div
t SC2003 (1) pin
(MDY1(U))
H : 500µ sec/div
V : 2V/div
y IC3104 (20) pin
(OUT 0)
H : 20µ sec/div
V : 1V/div
u IC3104 (18) pin
(OUT 1)
H : 20µ sec/div
V : 1V/div
i IC3104 (16) pin
(OUT 2)
H : 20µ sec/div
V :1V/div
