Sharp XV-Z2000 Service Manual

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
118
XV-Z2000
DT-400
å X1 QACCBA036WJPZ J Power Cord(XV-Z2000,for U.K, AX
Hong Kong and Singapore)
å X1 QACCDA007WJPZ J Power Cord(XV-Z2000, for AR
U.S.A, Canada and DT-400)
å X1 QACCLA018WJPZ J Power Cord(XV-Z2000, for AU
Australia and New Zealand)
å X1 QACCVA011WJPZ J Power Cord(XV-Z2000, for AT
Europe except U.K)
X2 QCNWGA001WJZZ J Video Cable(XV-Z2000 Except AN
U.S.A, Canada and DT-400)
X3 QSOCZ0361CEZZ J 21pin RCA Conversion Adaptor AQ
(XV-Z2000, for Europe)
X4 RRMCGA334WJSA J Remote Control BD
X5 TCADH1018CEN1 J Operation Manual, for 21pin RCA AE
Conversion Adaptor(XV-Z2000, for Europe)
X6 TiNS-B529WJZZ J Operation Manual(XV-Z2000, AP
for U.S.A and Canada)
X6 TiNS-B530WJZZ J Operation Manual(XV-Z2000, AT
for European 7 Languages)
X6 TiNS-B531WJZZ J Operation Manual(XV-Z2000, AK
for Chinese and Korean)
X6 TiNS-B532WJZZ J Operation Manual(DT-400) AP
X7 Not Available – AA Size Battery, x2 —
PACKING PARTS
(NOT REPLACEMENT ITEM)
S1 SPAKCB654WJZZ – Packing Case(XV-Z2000 for —
U.S.A and Canada)
S1 SPAKCB661WJZZ – Packing Case (DT-400) —
S1 SPAKCB659WJZZ – Packing Case(XV-Z2000, Except —
U.S.A, Canada and DT-400)
S2 SPAKFA661WJZZ – Packing Case(Accessory) —
S3 SPAKPA360WJZZ – Polystyrene Cover —
S4 SPAKXA533WJZZ – Buffer Material —
S5 SSAKA0160CEZZ – Polyethylene Bag (XV-Z2000, for —
U.S.A, Canada and DT-400)
S5 SSAKAA018WJZZ – Polyethylene Bag (XV-Z2000,except —
U.S.A, Canada and DT-400)
S6 TLABVA333WJZZ – Bar Code Label —
SUPPLIED ACCESSORIES
SERVICE JIG
(Use for servicing)
QCNW-5869CEZZ J Extension Cable 120-pin, CL
Main-Formatter
QCNWKA002WJZZ J Extension Cable 3-pin AS
Main-Fan
QCNWKA005WJZZ J Extension Cable 4-pin AX
Main-Fan
QCNWKA006WJZZ J Extension Cable 4-pin AX
Main-Fan
QCNWKA007WJZZ J Extension Cable 16-pin BL
Main-Power

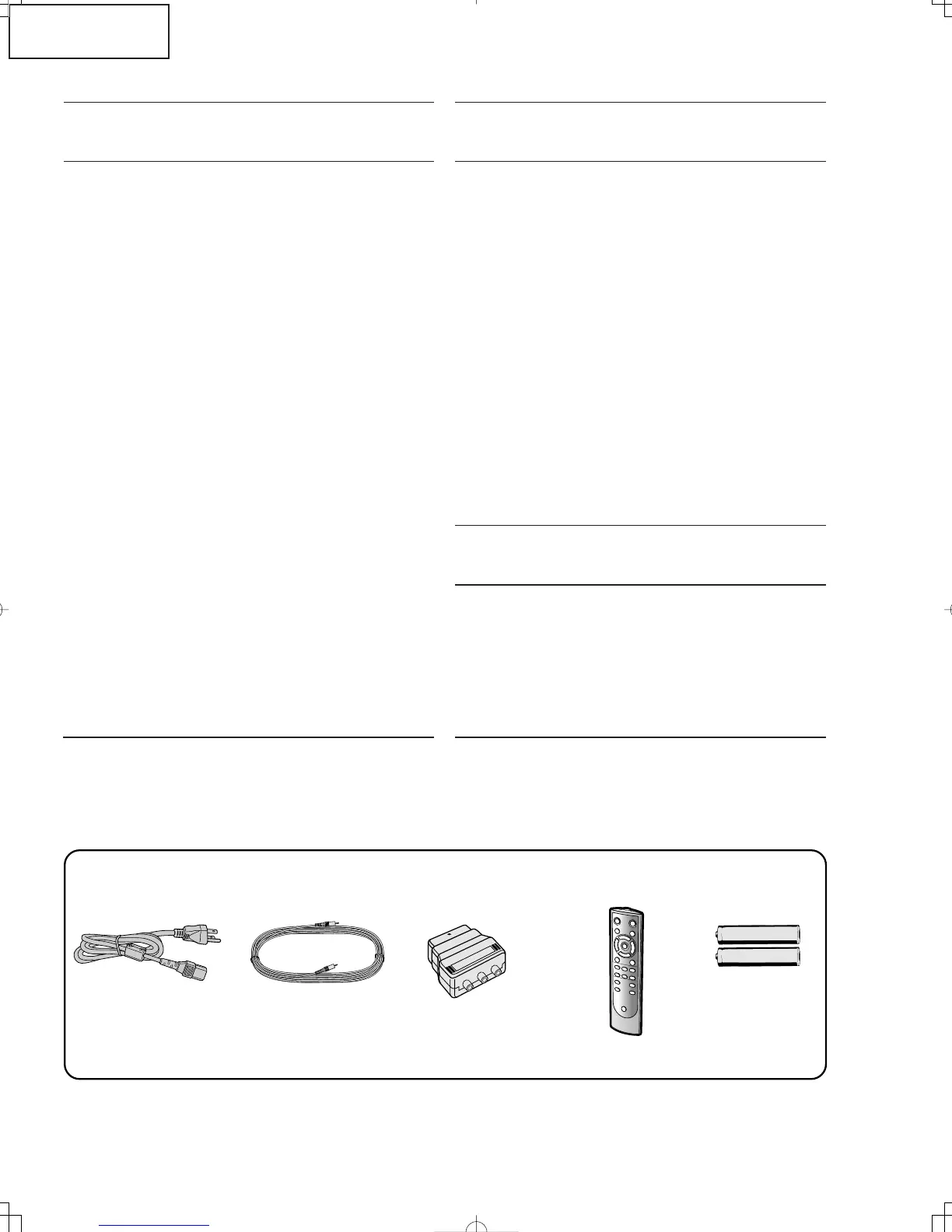

Remote control
X4 X7X1 X3X2
Supplied accessories
Power cord
21pin RCA
conversion adaptor
Video cable
AA size battery

Sharp XV-Z2000 Specifications

General

Projection distance	2.6 - 3.9 m
Contrast ratio (typical)	2500:1
Screen size compatibility	40 - 200 \
Projector native resolution	SXGA (1280x1024)
Lamp type	SHP
Lamp power	275 W
Light source type	Lamp
Service life of light source	3000 h
Video in	XGA, Mac 19” (in intelligent compression), SVGA/VGA, Mac 16”/13”
I/O ports	2x component, 1x RCA video, 1x S-video, DVI-I (analogue component, digital & analogue RGB) x 1
Dimensions (WxDxH)	310 x 287 x 104 mm
Power requirements	100-240V AC, 50/60Hz
Power consumption (typical)	360 W
Market positioning	Home cinema

Weight and Dimensions

Weight	4300 g
