Sharp XV-Z2000 Service Manual

24
XV-Z2000
DT-400
THE OPTICAL UNIT OUTLINE

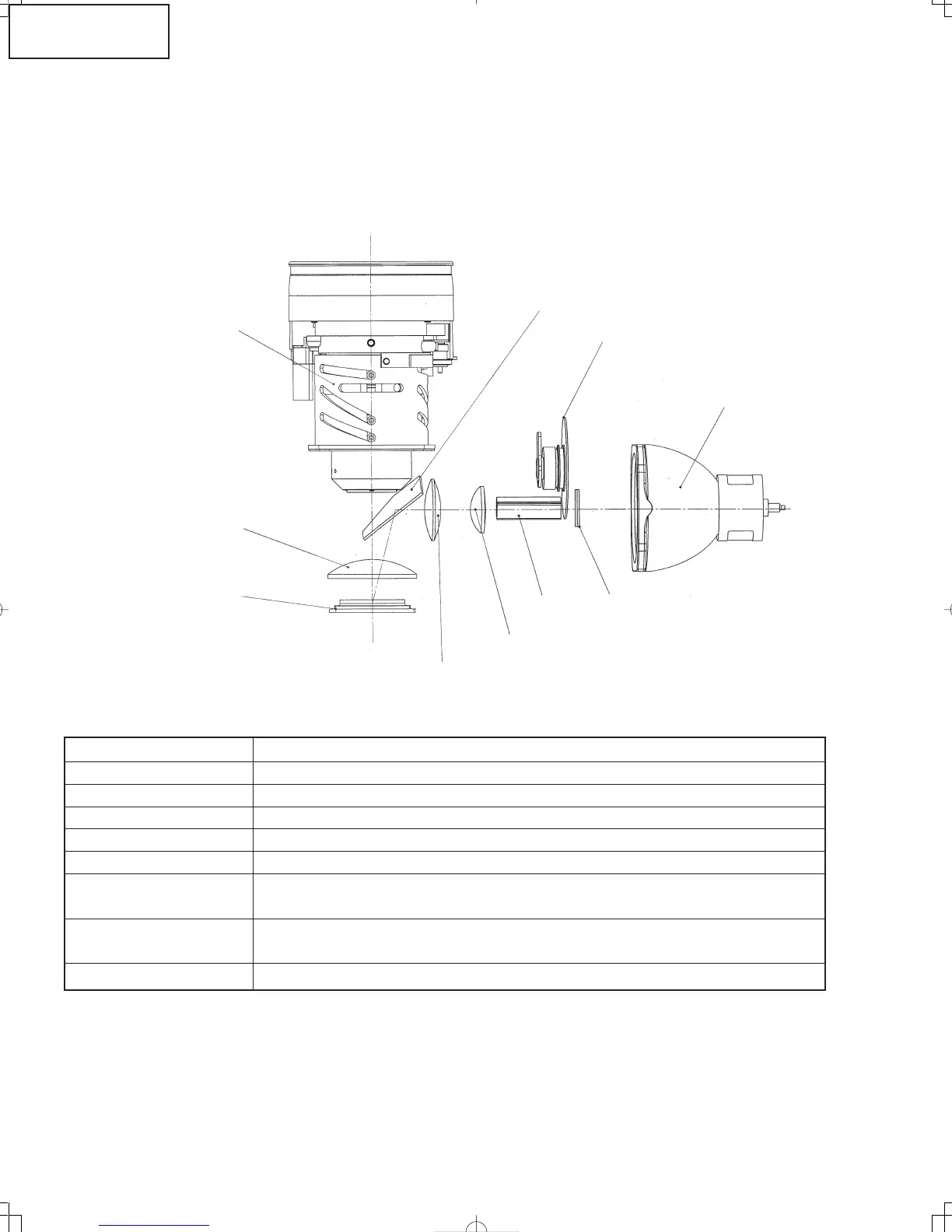

Layout for proper setup of the optical components and parts (top view)
(Schematic diagram)
Item Function
Lamp Light source. DC high-pressure mercury lamp.
Color wheel Splits light from the light source into R, G, B and W through a color filter.
Rod Assures uniform light ray.
Illumination lenses Focus light from the rod on DMD.
Reflection mirror Reflects light from the illumination lenses toward DMD.
Field lens Focuses light from the reflection mirror on DMD and then the light from DMD to
the projection lens.
DMD Turns the internal micromirror ON/OFF at the rate of color component of each dot
of the input source to reflect light.
Projection lens Enlarges light from DMD and projects it on a screen.
DMD
Field lens
Lamp
Reflection mirror
Color wheel
Illumination lenses 1
Projection lens
Rod
UV Filter
Illumination lenses 2

Sharp XV-Z2000 Specifications

General

Projection distance	2.6 - 3.9 m
Contrast ratio (typical)	2500:1
Screen size compatibility	40 - 200 \
Projector native resolution	SXGA (1280x1024)
Lamp type	SHP
Lamp power	275 W
Light source type	Lamp
Service life of light source	3000 h
Video in	XGA, Mac 19” (in intelligent compression), SVGA/VGA, Mac 16”/13”
I/O ports	2x component, 1x RCA video, 1x S-video, DVI-I (analogue component, digital & analogue RGB) x 1
Dimensions (WxDxH)	310 x 287 x 104 mm
Power requirements	100-240V AC, 50/60Hz
Power consumption (typical)	360 W
Market positioning	Home cinema

Weight and Dimensions

Weight	4300 g
