Sharp XV-Z2000 Service Manual

17
XV-Z2000
DT-400

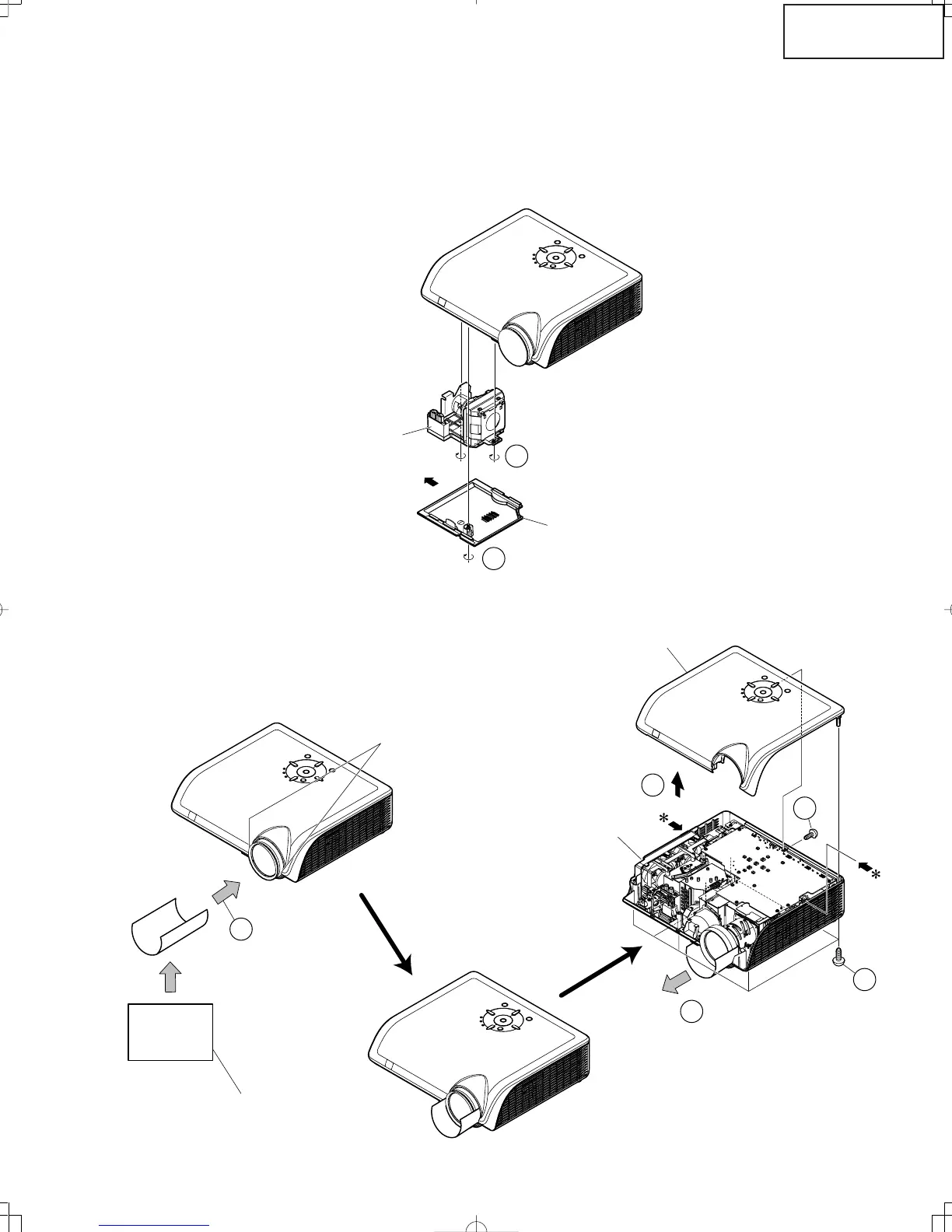

2. Removing the top body
2-1. Insert thick paper such as a postcard under the lens barrel.
2-2. Remove 7 fixing screws for the top and bottom bodies.
2-3. Press and hold the areas (marked with *) and disengage the claws on the top body to remove the top body.
2-4. Draw out a postcard.
REMOVING OF MAJOR PARTS
1. Removing the lamp unit cover and the lamp unit
1-1. Loosen the lamp unit cover fixing screw, slide the lamp unit cover in allow direction and lift off the lamp unit
cover.
1-2. Loosen 2 lamp unit fixing screws and lift off the lamp unit.
Lamp Unit Cover
Lamp Unit
1-2
1-3
2-4
2-3
2-1
Thick paper such as a postcard.
To protect the lens barrel
against scratches.
Short side
(10cm)
Long side
(15cm)
Top Body
Bottom Body
2-2
2-2

Sharp XV-Z2000 Specifications

General

Projection distance	2.6 - 3.9 m
Contrast ratio (typical)	2500:1
Screen size compatibility	40 - 200 \
Projector native resolution	SXGA (1280x1024)
Lamp type	SHP
Lamp power	275 W
Light source type	Lamp
Service life of light source	3000 h
Video in	XGA, Mac 19” (in intelligent compression), SVGA/VGA, Mac 16”/13”
I/O ports	2x component, 1x RCA video, 1x S-video, DVI-I (analogue component, digital & analogue RGB) x 1
Dimensions (WxDxH)	310 x 287 x 104 mm
Power requirements	100-240V AC, 50/60Hz
Power consumption (typical)	360 W
Market positioning	Home cinema

Weight and Dimensions

Weight	4300 g
