Sharp XV-Z2000 Service Manual

13
XV-Z2000
DT-400

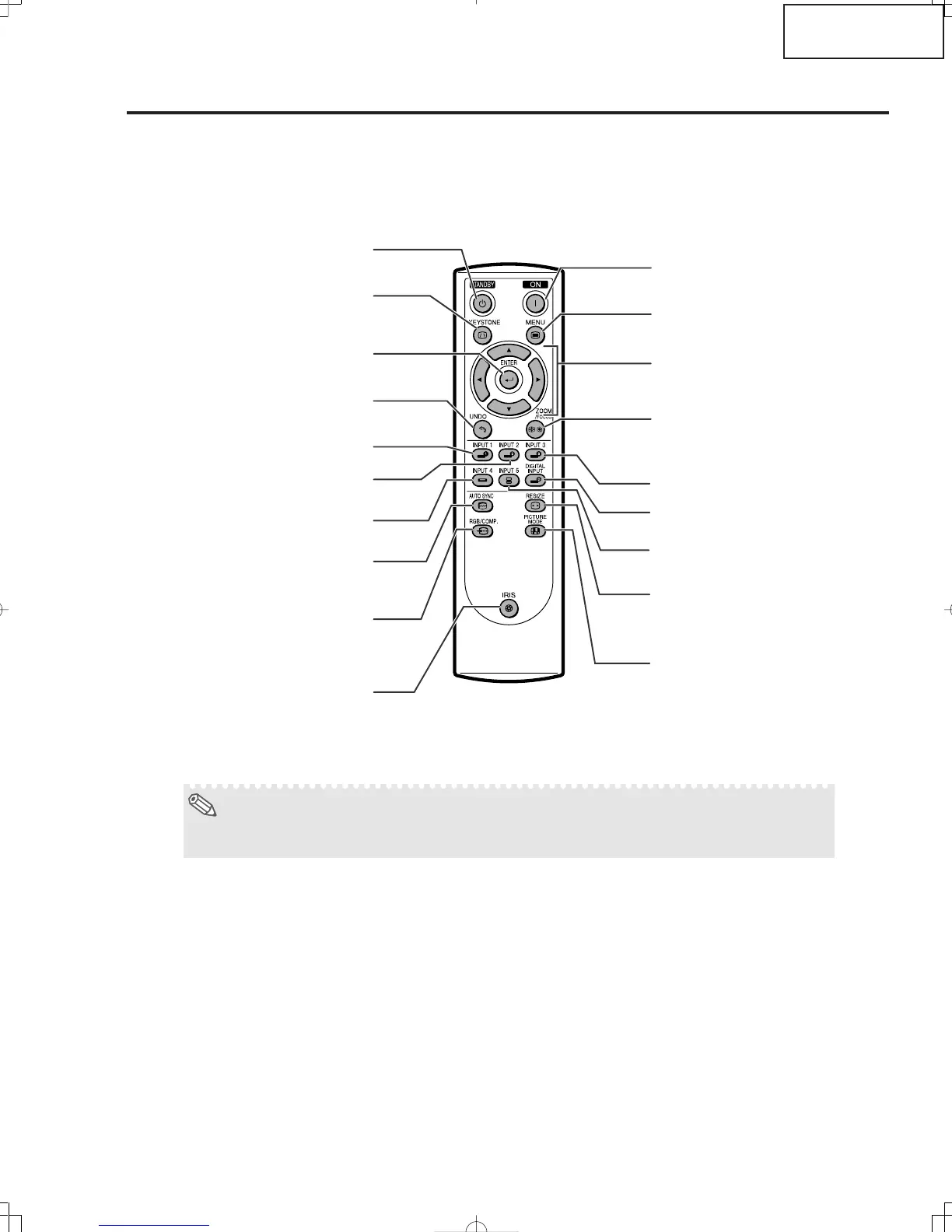

Remote Control
Adjustment buttons
('/"/\/|)
MENU button
Display adjustment and setting
screens.
ON button
Turn the power on.
ZOOM/FOCUS button
Adjust the projected image
size or adjusting the focus.
INPUT 3 button
INPUT 5 button
RESIZE button
Switch the picture display
(STRETCH, SIDE BAR, etc.).
DIGITAL INPUT button
PICTURE MODE button
Select the picture setting (Memory)
stored in “Picture Mode” on the
“Picture” menu.
STANDBY button
Put the projector into standby
mode.
KEYSTONE button
Enter the Keystone
Correction mode.
ENTER button
Set items selected or
adjusted on the menu.
UNDO button
Undo an operation or returning to
the previous display.
INPUT 1 button
INPUT 2 button
INPUT 4 button
AUTO SYNC button
Automatically adjust images when
connected to a computer.
RGB/COMP. button
Switch the signal type
(RGB or Component).
IRIS button
Switch “HIGH BRIGHTNESS
MODE” or “HIGH CONTRAST
MODE”.
Note
• All the buttons on the remote control are made of luminous material that is visible in the dark. Visibility will
diminish over time. Exposure to light will recharge the luminous buttons.

Sharp XV-Z2000 Specifications

General

Projection distance	2.6 - 3.9 m
Contrast ratio (typical)	2500:1
Screen size compatibility	40 - 200 \
Projector native resolution	SXGA (1280x1024)
Lamp type	SHP
Lamp power	275 W
Light source type	Lamp
Service life of light source	3000 h
Video in	XGA, Mac 19” (in intelligent compression), SVGA/VGA, Mac 16”/13”
I/O ports	2x component, 1x RCA video, 1x S-video, DVI-I (analogue component, digital & analogue RGB) x 1
Dimensions (WxDxH)	310 x 287 x 104 mm
Power requirements	100-240V AC, 50/60Hz
Power consumption (typical)	360 W
Market positioning	Home cinema

Weight and Dimensions

Weight	4300 g
